RA90 adjustable LED track spotlight
Prismahigh-CRI LED track spotlight
Aim the light.
Render colour accurately.
Prisma is a high-CRI LED track spotlight with high colour rendering and beam control. Powered by a high colour rendering Philips Premium White LED module, it offers luminaire outputs of up to 3,725 lumens, ensuring bright and accurate illumination for a variety of applications.
Eight 3000K and 4000K models cover 1,150–3,725 lm, with a low-glare 40° multifaceted reflector as standard and 25° or 60° alternatives.
- Adjustment
- 355° / 320° swivel and tilt
- Colour rendering
- Ra90 Philips Premium White
- Life
- 50,000 h L70 / B10
01 / 04
Output1,150–3,725 lm
System power11.5–43.5 W
BodyØ 100 × 130 mm
Track systemsGlobal · Stucchi · Eutrac
Product configurator
Configure your Prisma
Choose the output and CCT, then add the required finish, control, reflector and optical-accessory suffixes.
LuminaireProduct family
Adjustable Ra90 LED track spotlightPhilips Premium White LED module, low-glare reflector system and compatibility with Global Trac, Stucchi and Eutrac systems.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Prisma adjustable Ra90 LED track spotlight specification.
Review the track compatibility, adjustment, output, power, colour temperature and colour rendering before selecting a model.
Adjustment355° swivel / 320° tilt
Output1,150–3,725 lm
System power11.5 / 19.5 / 27.0 / 43.5 W
CCT3000K / 4000K
Colour renderingRa90
Product files
Download Prisma technical files.
Available files for this exact product are listed below.
C0 plane distributionIntensity · cd/klm
Technical description
Adjustable Ra90 track spotlight with three reflector distributions.
Prisma combines Philips Premium White Ra90 LED technology with a fully adjustable track spotlight body for display, retail and architectural accent lighting.

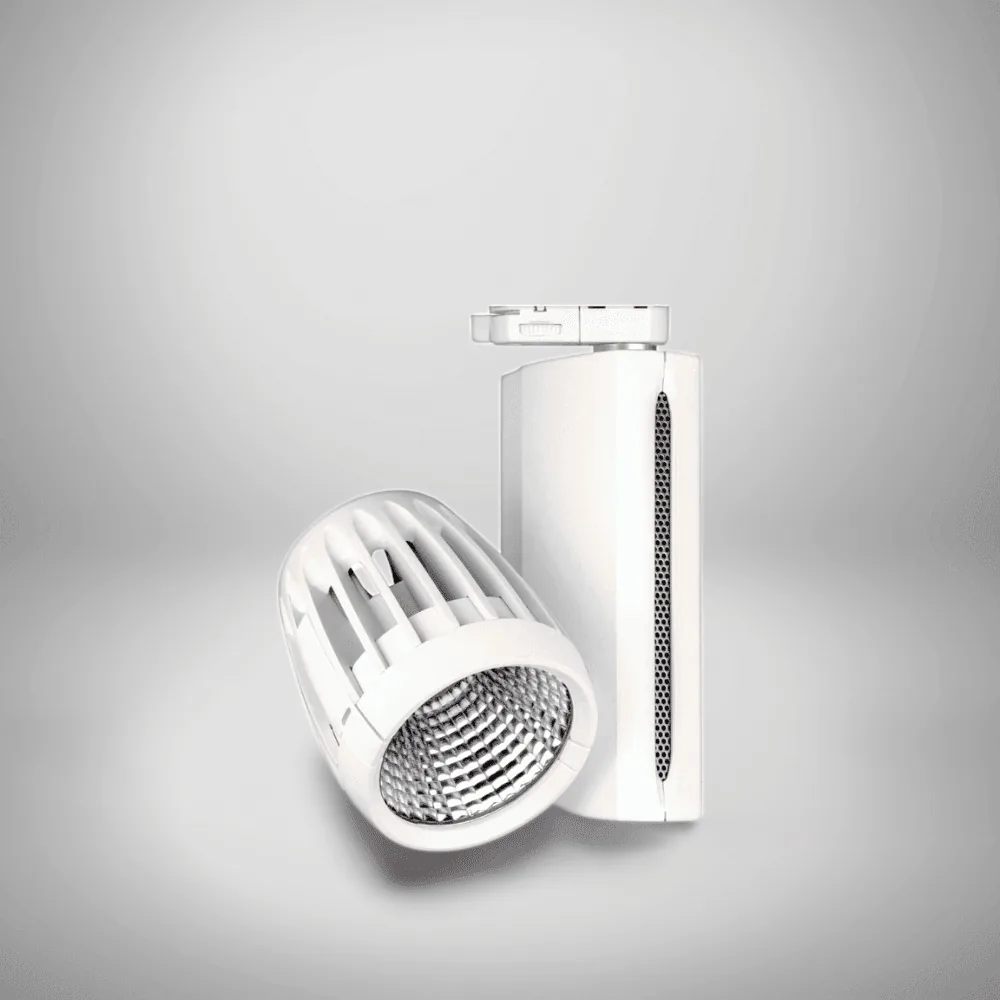

Body, track and aiming
The 100 mm diameter body is 130 mm long, with a published overall height of 205 mm and 70 mm depth.
Adjustment is 355° swivel and 320° tilt. The datasheet lists compatibility with Global Trac, Stucchi and Eutrac systems.
Output, power and reflectors
Eight paired 3000K and 4000K models cover 1,150–3,725 lm at 11.5 W, 19.5 W, 27.0 W and 43.5 W.
A low-glare 40° multifaceted reflector is standard. /NB provides the 25° narrow-beam reflector and /WB provides the 60° wide-beam reflector.
Finishes, controls and accessories
/WH, /BKGY and /BK are the listed finishes; the datasheet does not identify a no-suffix standard finish. /DALI provides the dimming option.
Barn doors, snoot, honeycomb louvre and white or black surface-mounting pattresses are listed separately. No emergency suffix is listed.
Output1,150–3,725 lm
System power11.5–43.5 W
Colour renderingRa90
Adjustment355° / 320°
Standard reflector40° multifaceted
Life50,000 h L70 / B10
See the Lumenloop commercial track spotlights range for related mounting, output and optic options.
Product typeAdjustable Ra90 LED track spotlight
Model codesPRISMA.001, PRISMA.002, PRISMA.003, PRISMA.004, PRISMA.005, PRISMA.006, PRISMA.007, PRISMA.008
Output1,150–3,725 lm
System power11.5 / 19.5 / 27.0 / 43.5 W
Colour temperature3000K / 4000K
Colour renderingRa90 · Philips Premium White
Body130 mm
Diameter100 mm
Depth70 mm
Height205 mm
Adjustment355° swivel / 320° tilt
Standard reflectorLow-glare 40° multifaceted
Optional reflectors/NB 25° · /WB 60°
Track compatibilityGlobal Trac · Stucchi · Eutrac
Finishes/WH · /BKGY · /BK
Control gear/DALI dimming option
Optical accessories/BD · /SN · /HC
Surface pattressesPRISMA.ACC.01 white · PRISMA.ACC.02 black
EmergencyNo suffix listed
Life50,000 h L70 / B10
ComplianceDeclaration of Conformity available
Models, options and accessories
Prisma model codes and specification options.
Choose one of the eight exact output and CCT models, then add only the required suffixes.
Model codes8 listed configurations
Each card is one complete Prisma model code with its published output, CCT and power.
1,150 lm11.5 W
1,250 lm11.5 W
1,800 lm19.5 W
1,925 lm19.5 W
2,425 lm27.0 W
2,600 lm27.0 W
3,450 lm43.5 W
3,725 lm43.5 W
Additional Prisma options and accessoriesPublished product choices
Finish/WH
White · RAL 9016
Finish/BKGY
Black RAL 9005 · grey 9007 heatsink
Finish/BK
Black · RAL 9005
Control gear/DALI
DALI dimming
Reflector/NB
25° narrow beam
Reflector/WB
60° wide beam
Accessory/BD
Barn doors
Accessory/SN
Snoot
Accessory/HC
Honeycomb louvre
Mounting accessoryPRISMA.ACC.01
Surface-mounting pattress · white
Mounting accessoryPRISMA.ACC.02
Surface-mounting pattress · black
Custom configurationPRISMA.ACC.03
Other colours and specifications available on request
PRISMA.ACC.01, PRISMA.ACC.02 and PRISMA.ACC.03 are separate accessory or custom-configuration references rather than product-code suffixes.
Why Prisma
Why specify Prisma?
Prisma combines Ra90 colour rendering, adjustable aim and eight output/CCT models in a track-mounted spotlight.
Three verified reflector distributions and separate glare-control accessories allow the optical arrangement to be stated clearly.
Track, optical and finish choices kept separate
Track compatibility, reflector distribution, DALI control gear and finish suffixes remain distinct specification decisions.
Barn doors, snoot, honeycomb louvre and surface pattresses can then be added where required.
Ra90 LED
Philips Premium White module.
Adjustable aim
355° swivel and 320° tilt.
Three reflectors
Standard, narrow and wide beam.
50,000 h life
L70 / B10 rating.
Output1,150–3,725 lm8 listed models
CCT3000K / 4000KPaired models
Reflectors3Verified distributions
ApplicationsDisplay and accent lighting
Retail displays
Ra90 colour rendering and adjustable aiming for merchandise presentation.
Architectural accents
Narrow, standard and wide reflector choices for directional highlights.
Display lighting
Four output packages with 3000K and 4000K model choices.
Compare Prisma with the wider track spotlight range when reviewing output, optical distribution and body format.
Integrated-driver LED track spotlight
Capsule
Capsule houses the driver within the fitting and provides a fully adjustable track-mounted format.
Compare product →

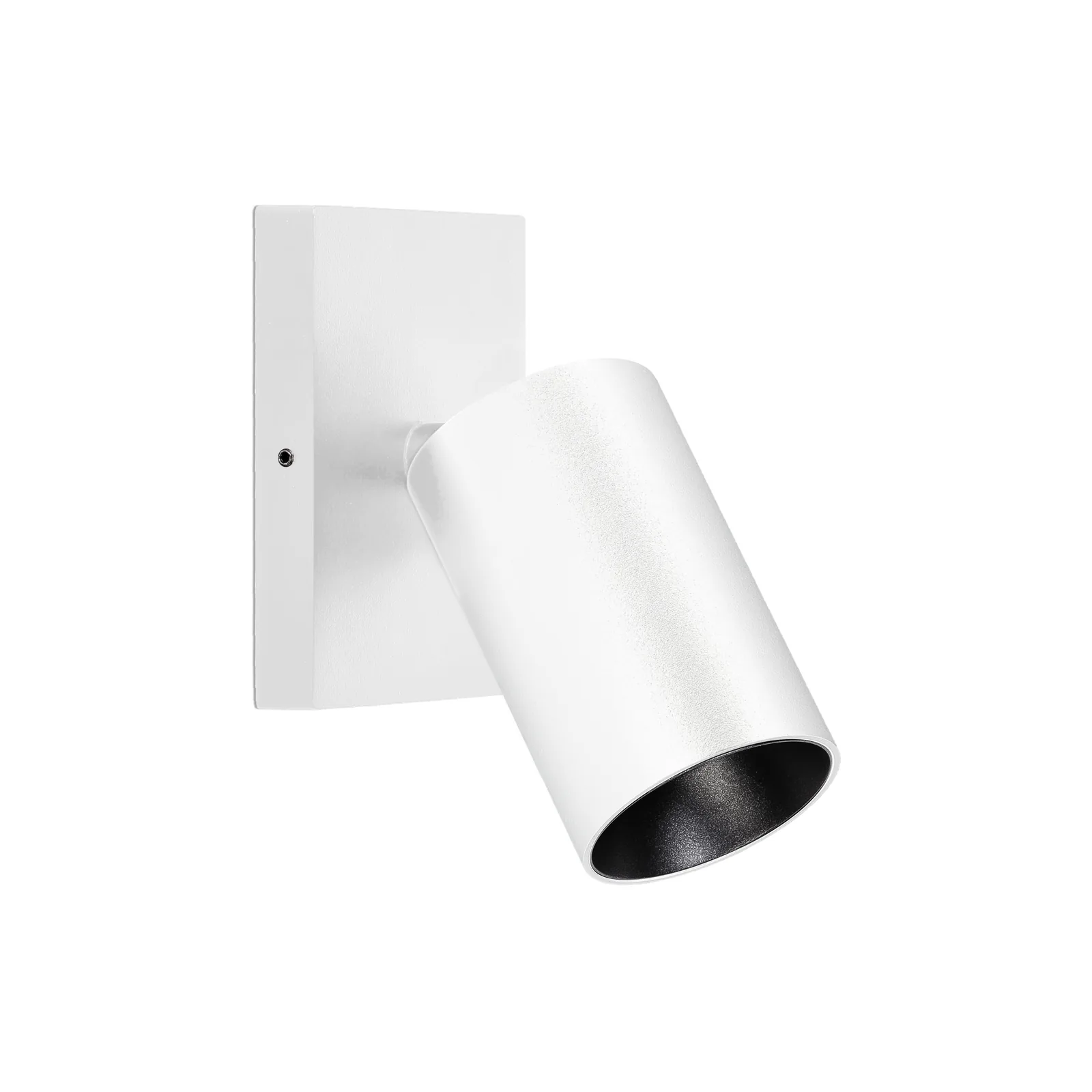

Surface-mounted LED spotlight
Versa
Versa is a compact surface-mounted spotlight with adjustable directional control.
Compare product →
Compact LED track spotlight
Versa Track
Versa Track provides a smaller adjustable track-mounted spotlight format.
Compare product →Specification questions
Prisma details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
Eight configurations are listed: PRISMA.001 to PRISMA.008, with one output, CCT and power combination for each code.
A low-glare 40° multifaceted reflector is standard. /NB provides the published 25° narrow-beam reflector and /WB provides the published 60° wide-beam reflector.
The current datasheet lists compatibility with Global Trac, Stucchi and Eutrac systems.
The published adjustment is 355° swivel and 320° tilt.
The listed finishes are /WH white RAL 9016, /BKGY black RAL 9005 with grey 9007 heatsink, and /BK black RAL 9005. The datasheet does not identify a no-suffix standard finish, so include the required finish in the quotation.
/DALI provides DALI dimming. The listed accessories include /BD barn doors, /SN snoot, /HC honeycomb louvre and white or black surface-mounting pattresses.
No emergency suffix is listed in the current Prisma datasheet.
The available Prisma downloads are the datasheet, photometric data and bim file.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
