Ceiling detail67 mm cut-out · 76 mm bezel
DOWNLIGHTS architectural LED downlight
Prismpinhole LED downlight
Small ceiling detail.
Controlled architectural light.

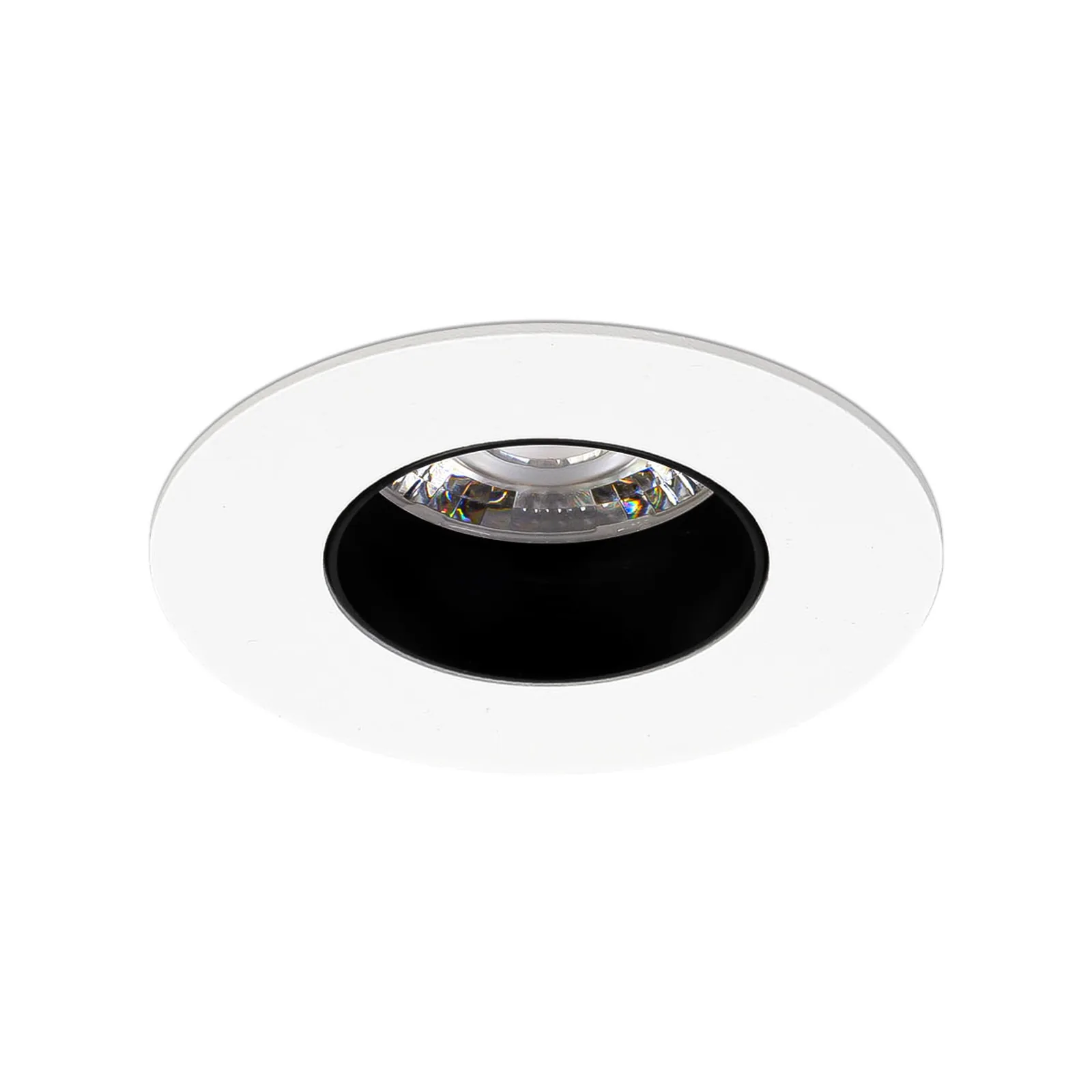

Prism is a pinhole LED downlight with a 67 mm cut-out, low-glare matt black baffle, fixed and tilt body options, Tridonic SLA Essence LED engine and standard 36 deg lens for specification-led interior lighting.
Nine Tridonic SLA Essence models cover 725–1,275 lm in 2700K, 3000K and 4000K, with fixed or tilt bodies and project control, emergency and optical options.
- Output
- 725–1,275 lm 9 model codes
- Ceiling cut-out
- 67 mm 76 mm bezel
- Optics
- 36° standard 12° and 24° lens options
01 / 02
Output725–1,275 lm
Colour temperature2700K / 3000K / 4000K
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
Ceiling cut-outØ 67 mm
At a glance
Prism miniature LED downlight at a glance.
Six verified facts covering the ceiling detail, performance, optics and product options.
Output725–1,275 lm
System power9.5 W / 10.5 W / 14.0 W
Colour quality2700K / 3000K / 4000K · CRI 90
Optics36° standard · 12° / 24° options
Control and emergencyOptions available on PRISM.004–.009
Product files
Download Prism technical files.
Available files for this exact product are listed below.
C0 plane distributionIntensity · cd/klm
Product configurator
Configure your Prism
Choose the output and colour temperature first, then add the body, control gear, emergency, lens, baffle and accessory suffixes required.
LuminaireProduct family
Miniature architectural LED downlight76 mm bezel, 67 mm cut-out, CRI 90 Tridonic SLA Essence engine, matt black low-glare baffle and 36° lens as standard.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
Technical description
Miniature architectural LED downlight with fixed and tilt bodies.
Prism is a compact recessed LED downlight with a 76 mm die-cast bezel, 67 mm ceiling cut-out and matt black low-glare baffle. The standard white bezel is RAL 9016, while fixed, tilt and black body variants are available through the verified body suffixes.
Output, colour quality and optics
Nine Tridonic SLA Essence models cover 725–1,275 lm at 9.5 W, 10.5 W or 14.0 W. Each power group is available in 2700K, 3000K and 4000K, with CRI 90 colour quality and 3-step MacAdam consistency.
The standard lens is 36°. The /NB suffix provides a 24° lens, while /SNB provides a 12° lens and is not available with PRISM.004, PRISM.005 or PRISM.006.
Control gear and emergency
Standard models are non-dimmable. /MDIM is phase-cut mains dimming; /ECO requires SwitchDIM, DALI or DSI control gear; /BTC is the Casambi wireless option.
Remote-indicator emergency options are /EM, /EMD for DALI or self-test emergency, and /EMM for wireless mesh emergency. Control gear and emergency options are not available with PRISM.001, PRISM.002 or PRISM.003.
Service life and finish variations
Lumen maintenance is L70/B50 at more than 50,000 hours and the datasheet lists a five-year warranty. Non-standard connector, RAL colour and LSOH/LSF cable arrangements are Custom configuration.
Ceiling detail76 mm bezel · 67 mm cut-out
Output725–1,275 lm
Colour qualityCRI 90 · 3 SDCM
Standard optic36° LED lens
Low glareMatt black baffle · <19
Service lifeL70/B50 · >50,000 h
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeMiniature architectural recessed LED downlight
Dimensions76 mm bezel · 67 mm cut-out · 80 / 90 / 110 mm body heights
Standard finishWhite RAL 9016 bezel · matt black baffle
Optics36° standard · /SNB 12° · /NB 24°
ControlsNon-dimmable standard · /MDIM phase-cut · /ECO SwitchDIM / DALI / DSI · /BTC Casambi
Emergency/EM remote indicator · /EMD DALI / self-test · /EMM wireless mesh
Warranty5 years
| Model | Output | CCT | System power | Efficacy |
|---|---|---|---|---|
| PRISM.001 | 725 lm | 2700K | 9.5 W | 76 lm/W |
| PRISM.002 | 775 lm | 3000K | 9.5 W | 82 lm/W |
| PRISM.003 | 825 lm | 4000K | 9.5 W | 87 lm/W |
| PRISM.004 | 775 lm | 2700K | 10.5 W | 74 lm/W |
| PRISM.005 | 850 lm | 3000K | 10.5 W | 81 lm/W |
| PRISM.006 | 900 lm | 4000K | 10.5 W | 86 lm/W |
| PRISM.007 | 1,150 lm | 2700K | 14.0 W | 82 lm/W |
| PRISM.008 | 1,175 lm | 3000K | 14.0 W | 84 lm/W |
| PRISM.009 | 1,275 lm | 4000K | 14.0 W | 91 lm/W |
Models, options and accessories
Prism model codes and specification options.
Choose one verified model code, then add only the suffixes required for the body, control gear, emergency, lens, baffle or accessory.
Model codes9 verified models
Every datasheet model is shown separately with its output, colour temperature and system power.

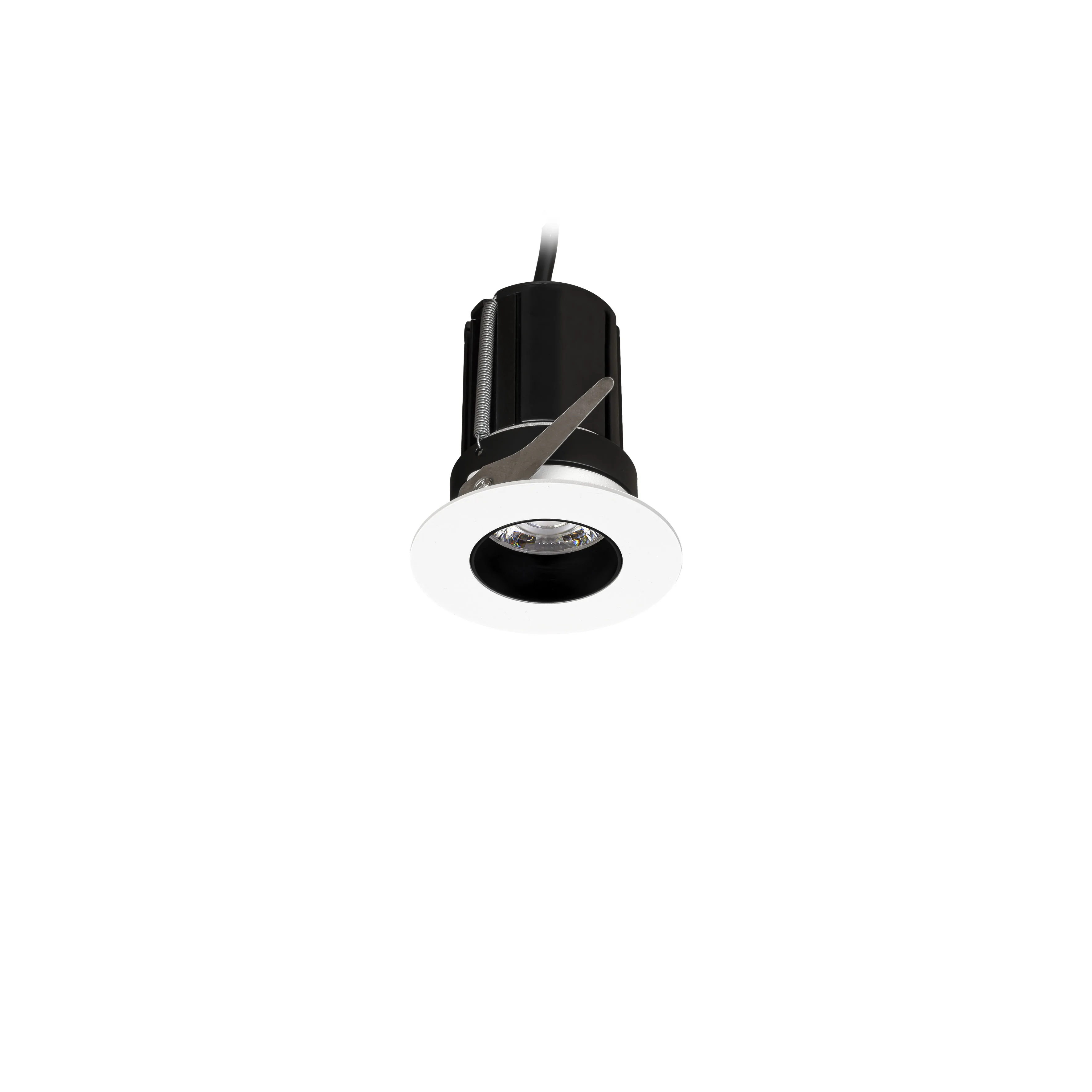

725 lm9.5 W
775 lm9.5 W
825 lm9.5 W

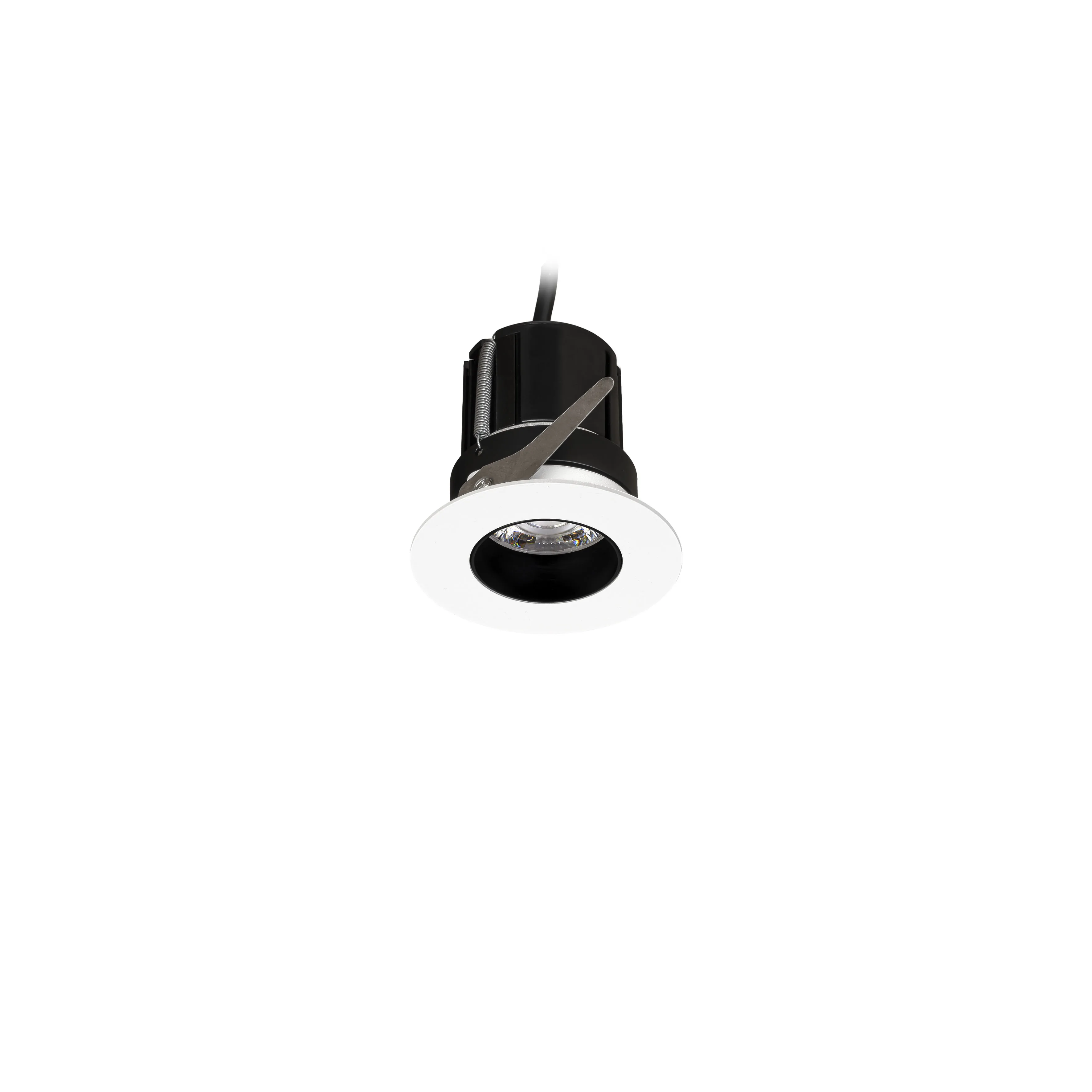

775 lm10.5 W
850 lm10.5 W
900 lm10.5 W
1,150 lm14.0 W
1,175 lm14.0 W
1,275 lm14.0 W
Prism options and accessoriesProduct-specific image references
Body type/T · /BL · /BLT
Tilt, black RAL 9005 and tilt-black body variants.
Control gear/MDIM · /ECO · /BTC
Phase-cut, SwitchDIM/DALI/DSI and Casambi options; not available with PRISM.001–.003.
Emergency/EM · /EMD · /EMM
Remote-indicator, DALI/self-test and wireless-mesh options; not available with PRISM.001–.003.
Baffle/WSB · /GB
White softlight or gold baffle; matt black is standard.
Lens/SNB · /NB
12° or 24° lens; /SNB is unavailable with PRISM.004–.006.
Accessory/HC
Honeycomb louvre for additional glare control.
Standard construction uses a white RAL 9016 bezel, matt black baffle and 36° lens. Choice of connectors, other RAL colours and LSOH/LSF cable are Custom configuration.
Why Prism
Why specify Prism?
Prism keeps the ceiling aperture small while offering nine output and colour-temperature combinations, fixed or tilt bodies and three lens families.
Its Tridonic SLA Essence engine, CRI 90 colour quality, low-glare baffle and verified control and emergency suffixes provide a detailed architectural specification in a compact body.
One compact family, three power groups
The 9.5 W, 10.5 W and 14.0 W model groups cover outputs from 725 lm to 1,275 lm, each in 2700K, 3000K and 4000K.
Body heights are 80 mm, 90 mm and 110 mm across the model groups, with a common 76 mm bezel and 67 mm cut-out.
Low-glare aperture
Matt black baffle and a published low-glare value below 19.
Fixed or tilt body
Choose the standard fixed body or the verified /T and /BLT tilt variants.
CRI 90 colour quality
All nine model codes use CRI 90 engines with 3-step MacAdam consistency.
Project control options
Phase-cut, SwitchDIM, DALI, DSI and Casambi arrangements are separated by control gear suffix.
Output725–1,275 lm9 verified models
Optics36° / 24° / 12°Standard and lens options
Warranty5 yearsDatasheet coverage
Product usesWhere the Prism format helps
Small ceiling apertures
The 67 mm cut-out and 76 mm bezel keep the recessed ceiling detail compact.
Fixed downlighting
Use the standard fixed body where the beam remains centred below the fitting.
Aimed architectural light
Use the tilt-body variants where the light direction needs adjustment.
Low-glare interior lighting
The recessed optical assembly and matt black baffle reduce the brightness visible at the aperture.
Compare Prism with the wider commercial downlight range when selecting aperture size, output, optics, controls and emergency options.
Miniature adjustable LED downlight
Axis
A compact adjustable downlight with several beam-angle options and outputs up to 1,275 lm.
Compare product →
Low-glare LED downlight
Beam
An 85 mm diameter low-glare downlight with an 81 mm cut-out and focused optical control.
Compare product →
IP54 LED downlight
Aero
An IP54 commercial downlight with a low-glare specular reflector and Tridonic-powered SMD LED technology.
Compare product →Specification questions
Prism details worth checking.
Direct answers on model selection, ceiling dimensions, optics, controls, emergency and technical files.
9 configurations are listed: PRISM.001, PRISM.002, PRISM.003, PRISM.004, PRISM.005, PRISM.006, PRISM.007, PRISM.008, PRISM.009.
The product family covers 725–1,275 lm. Colour-temperature choices are 2700K / 3000K / 4000K.
Control options include Mains dimming, DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The Prism requires a Ø 67 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Prism datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
