Output2,975–5,125 lm

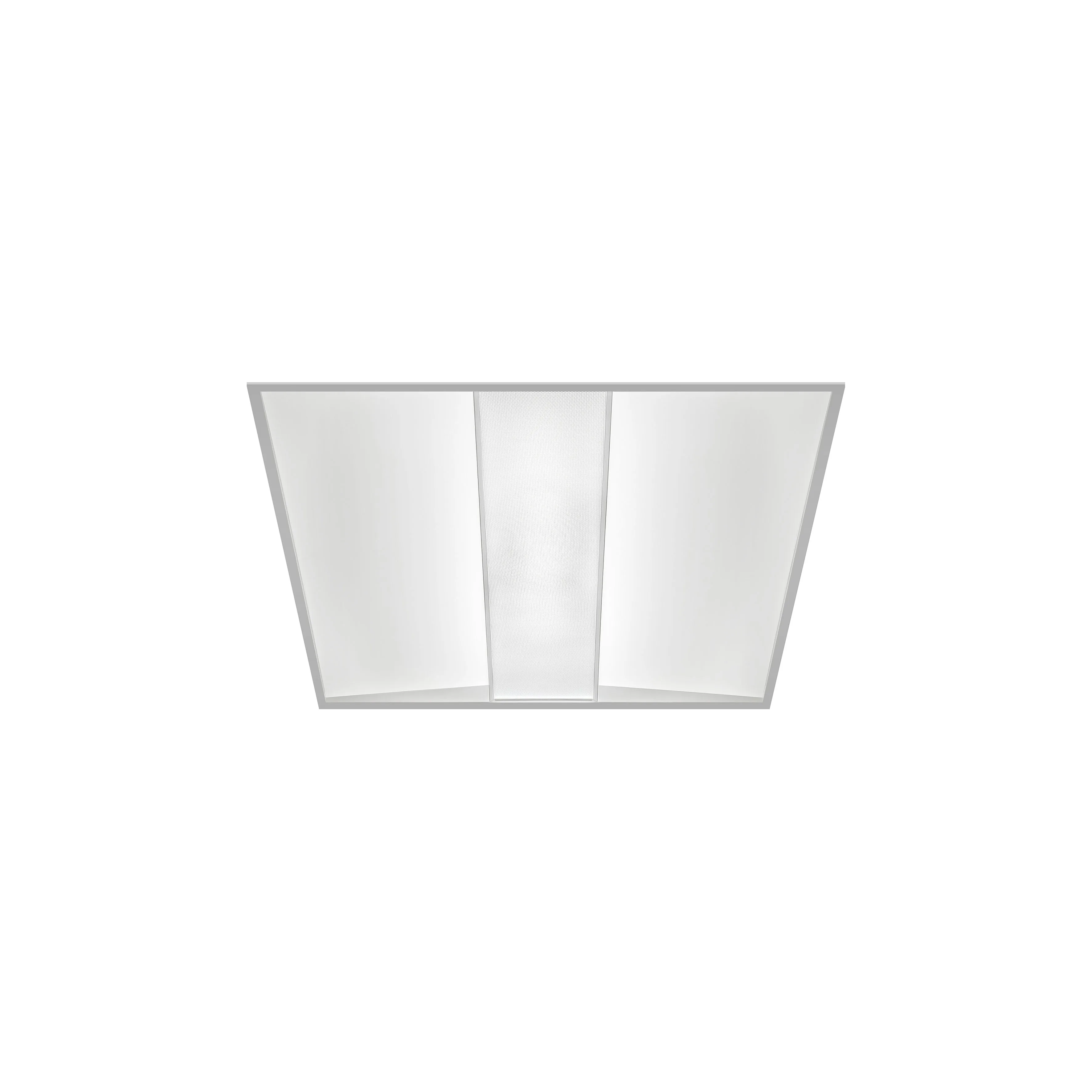

Low glare direct indirect LED panel
Luminatedirect indirect LED panel
Light the task.
Lift the ceiling.
Luminate is a direct indirect LED panel with a microprism diffuser, Touch+DALI, Casambi and emergency options, with tunable white available as a custom configuration.
- Output
- 2,975–5,125 lm
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 8 listed controls and accessories
01 / 06
OutputSee model schedule
Colour temperature3000K / 4000K
ControlsNon-dimmable, Touch+DALI, Casambi
Configuration4 listed options
Product configurator
Configure your Luminate
Choose the Luminate model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
direct indirect LED panelLuminate is a UK-made direct / indirect nominal 600 × 600 LED modular panel with a microprism diffuser, Touch+DALI, Casambi and emergency options, with tunable white available as a custom configuration.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Luminate direct indirect LED panel quick specification.
Check the installation, output, colour temperature and control information for this direct indirect LED panel before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationCatalogue page 72
- 01Length
- 593 mm
- 02Output
- 2,975–5,125 lm
- 03Nominal luminaire power (TCW)
- Needs confirmation
- 04CCT
- 3000K / 4000K
- 05Controls
- Non-dimmable, Touch+DALI, Casambi
- 06Emergency
- 3-hour emergency, integral indicator, DALI emergency
Product files
Download Luminate technical files.
Available files for this exact product are listed below.
Technical description
Direct indirect LED panel specification for Luminate.
Luminate is a UK-made direct / indirect 600 x 600 LED modular panel with a microprism central diffuser, softly illuminated outer wings and low-glare versions developed for office, education and commercial interiors.

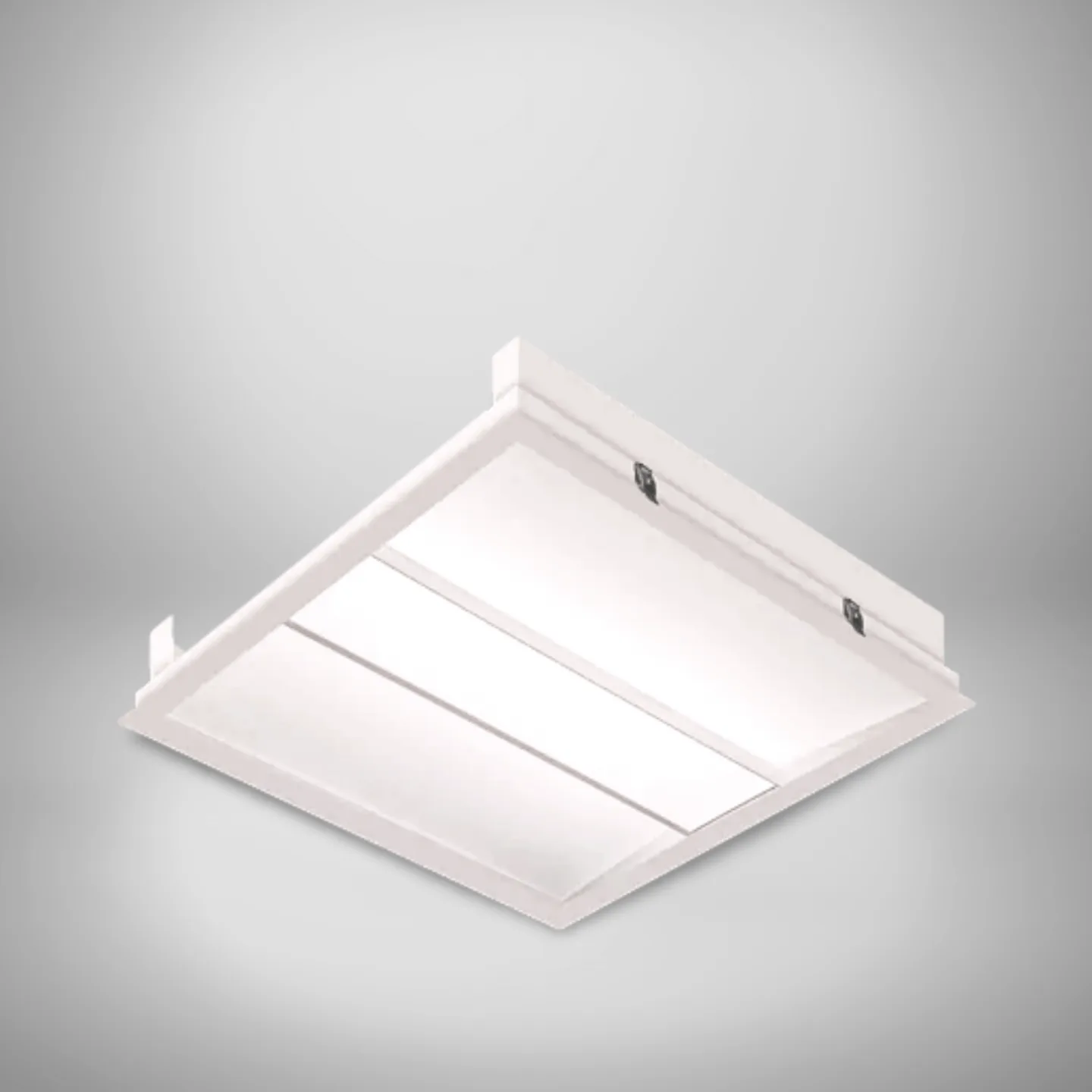

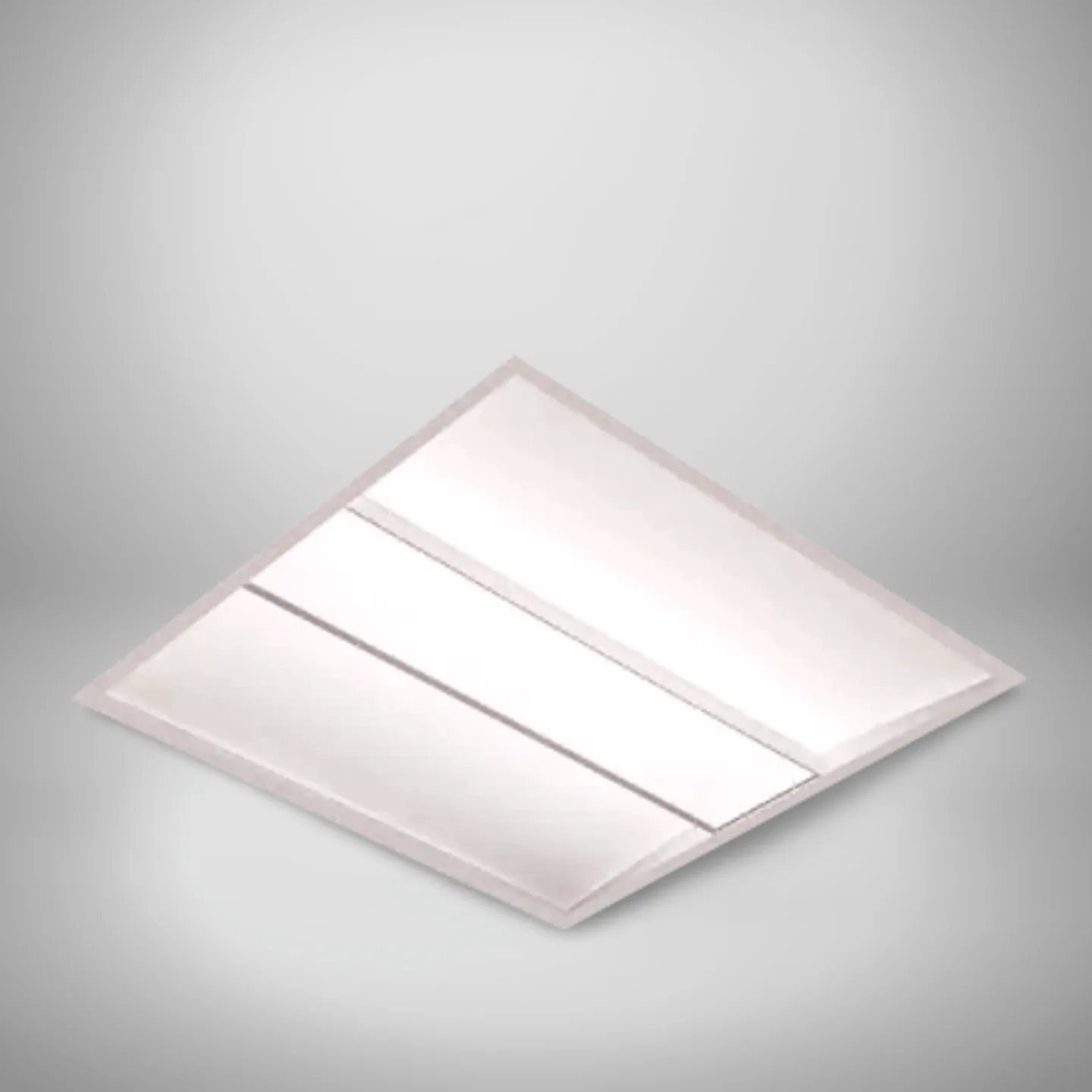

Luminate construction and mounting
For nominal 600 × 600 direct indirect LED panel specifications, compare the model codes, outputs and available options below.
Direct and indirect light distribution.
Finish is White.
Output, optics and colour temperature
The approved Luminate datasheet also lists a tunable white build. As that option is not shown as a standard selector code in the product information, it should be treated as a custom configuration where dynamic CCT is required.
Published output and system power are listed by model in the specification schedule.
Published output and system power are listed by model in the specification schedule.
Controls, emergency and project options
Luminate direct indirect LED panel. Output: 2,975–5,125 lm; system power: 31.5–46 W. Colour temperature: 3000K / 4000K.
Control options include Non-dimmable, Touch+DALI, Casambi wireless.
Emergency options include 3-hour emergency, integral indicator, DALI emergency.
Nominal luminaire power (TCW)Needs confirmation
Colour temperature3000K / 4000K
FinishWhite
ControlsNon-dimmable, Touch+DALI, Casambi
Emergency3-hour emergency, integral indicator, DALI emergency
See the Lumenloop LED panel lighting range for related mounting, output and optic options.
Product typedirect indirect LED panel
Model codesLUMINATE.001, LUMINATE.002, LUMINATE.003, LUMINATE.004, LUMINATE.005, LUMINATE.006
Output2,975–5,125 lm
Nominal luminaire power (TCW)See model schedule
Colour temperature3000K / 4000K
FinishWhite
ControlsNon-dimmable, Touch+DALI, Casambi
Emergency3-hour emergency, integral indicator, DALI emergency
Models, options and accessories
Luminate model codes and specification options.
Choose the Luminate base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes6 listed configurations
6 models are shown with output, CCT and power information where available.
2,975 lm / 3000K / 32 W
3,200 lm / 4000K / 32 W
3,400 lm / 3000K / 31.5 W
3,575 lm / 4000K / 31.5 W
4,875 lm / 3000K / 46 W
5,125 lm / 4000K / 46 W
Additional Luminate options and accessoriesProduct images and specification choices
Controls/T+DALI
Touch+DALI control gear
Controls/BTC
Casambi Bluetooth wireless control
Emergency/EMI
3-hour emergency, integral indicator conversion
Emergency/EMDI
DALI emergency option
AccessoriesPlasterboard mounting kit
Plasterboard mounting kit
AccessoriesSurface mount frame
Surface mount frame
Accessories1.2 m wire suspension kit
1.2 m wire suspension kit
Custom configurationConnectors
Connector arrangement shown in the data sheet.
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Luminate
Why specify this direct indirect LED panel?
Listed choices: Touch+DALI, Casambi wireless, 3-hour emergency, integral indicator, DALI emergency.
Luminate direct indirect LED panel. Output: 2,975–5,125 lm; system power: 31.5–46 W. Colour temperature: 3000K / 4000K.
Low-glare panel lighting with a more considered ceiling effect
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Direct / indirect distribution
Task lighting and ceiling illumination from one modular fitting.
Microprism diffuser
Controlled low-glare performance for commercial interiors.
Six model choices
3000K and 4000K outputs across three power levels.
Controls and emergency
Touch+DALI, Casambi and two emergency arrangements.
Output2,975–5,125 lm6 listed models
CCT3000K / 4000KModel dependent
Options8Controls and accessories
Typical applicationsWhere Luminate is specified
Offices
Low-glare modular lighting with direct and indirect distribution.
Education
Controlled general illumination for teaching and circulation spaces.
Commercial interiors
A more architectural alternative to a standard flat panel.
Refurbishment
600 × 600 format with surface and suspension accessories.
Compare Luminate with the wider led panel lighting when reviewing output, optics, mounting, controls and emergency requirements.
low-glare 600x600 LED panel

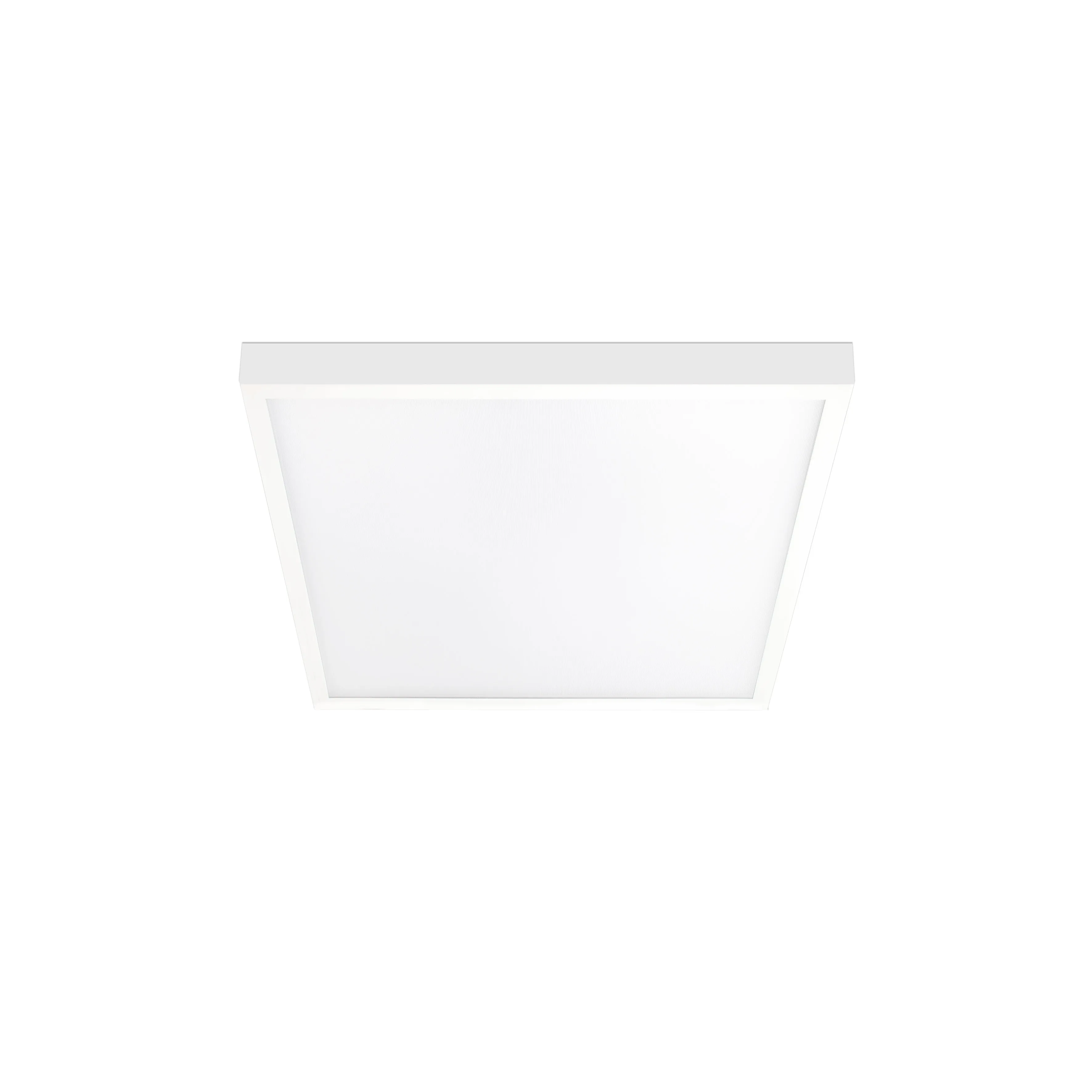

Aurora
Low-glare 600x600 LED panel. Review the model schedule and compatible options.
Compare product →
edge-lit UGR19 600x600 LED panel
Edge-Lite
Edge-lit UGR19 600x600 LED panel. Review the model schedule and compatible options.
Compare product →
Recessed 600x600 LED panel
Lucid
LG7-certified recessed 600x600 LED panel. Review the model schedule and compatible options.
Compare product →Specification questions
Luminate details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
6 configurations are listed: LUMINATE.001, LUMINATE.002, LUMINATE.003, LUMINATE.004, LUMINATE.005, LUMINATE.006.
Luminate direct indirect LED panel. Output: 2,975–5,125 lm; system power: 31.5–46 W. Colour temperature: 3000K / 4000K.
Control options include Non-dimmable, Touch+DALI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include 3-hour emergency, integral indicator, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The configurator shows the product dimensional drawing. The product datasheet contains further construction and installation information.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Luminate datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
