Output2,975–4,525 lm
LOW GLARE 600x600 edge-lit LED panel
Lucid600x600 edge-lit LED panel
Uniform light.
UGR<19 glare control.
Published output and system power are listed by model in the specification schedule.
Lucid 600x600 edge-lit LED panel. Output: 2,975–4,525 lm; system power: 26.5–39 W. Colour temperature: 3000K / 4000K.
- Output
- 2,975–4,525 lm
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 9 listed controls and accessories
01 / 07
OutputSee model schedule
Colour temperature3000K / 4000K
ControlsNon-dimmable standard; /ECO SwitchDIM, DALI or DSI; /BTC Casambi
Configuration9 listed options
Product configurator
Configure your Lucid
Choose the Lucid model first, then add only the control, optic, emergency, finish or mounting options required for the project.
Contact us for availability and pricing for LUCID.005, LUCID.006. Low-glare versions are LUCID.001 to LUCID.004. Review the photometry for the selected model and room layout.
LuminaireProduct family
600x600 edge-lit LED panelLucid 600x600 edge-lit LED panel. Review the current model schedule and compatible options.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Lucid 600x600 edge-lit LED panel quick specification.
Check the installation, output, colour temperature and control information for this 600x600 edge-lit LED panel before reviewing the full model schedule.

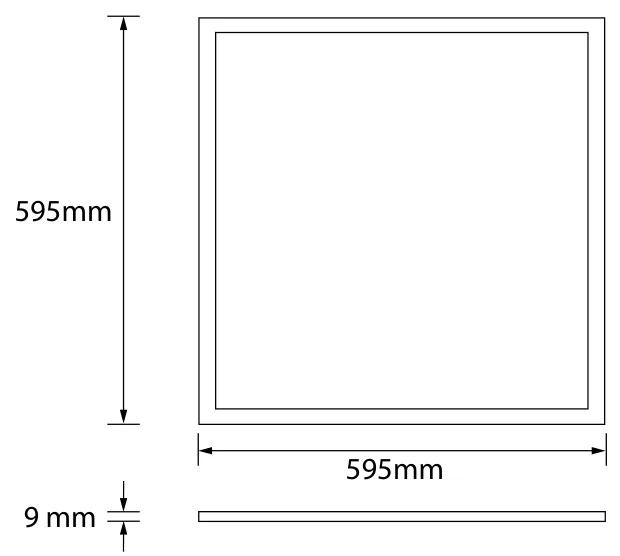

Technical referenceNot to scale
Key specificationCatalogue page 70
- 01Length
- 595 mm
- 02Output
- 2,975–4,525 lm
- 03System power
- 26.5–39 W
- 04CCT
- 3000K / 4000K
- 05Controls
- Non-dimmable standard; /ECO SwitchDIM, DALI or DSI; /BTC Casambi
- 06Emergency
- Three-hour emergency, 3-hour emergency /EM; DALI 3-hour emergency /EMD
Product files
Download Lucid technical files.
Available files for this exact product are listed below.
Diffuser comparisonIntensity — cd/klm
Technical description
LG7 compliant recessed 600x600 LED panel specification for Lucid.
Lucid is an LG7 compliant recessed 600x600 LED panel for 600 x 600 commercial ceiling grids. Tridonic LED technology, UGR<19 low-glare performance and a self-extinguishing TP(a) diffuser option support office, education and healthcare lighting.
Lucid construction and mounting
Published output and system power are listed by model in the specification schedule.
Output, optics and colour temperature
Published output and system power are listed by model in the specification schedule.
Published output and system power are listed by model in the specification schedule.
Colour temperature options are 3000K / 4000K.
Controls, emergency and project options
Control options include DALI / SwitchDIM / DSI, Casambi wireless.
Emergency options include 3-hour emergency, DALI 3-hour emergency.
Datasheets and technical files
Published files include the Lucid datasheet and installation guide.
System power26.5–39 W
Colour temperature3000K / 4000K
FinishNeeds confirmation
ControlsNon-dimmable standard; /ECO SwitchDIM, DALI or DSI; /BTC Casambi
EmergencyThree-hour emergency, 3-hour emergency /EM; DALI 3-hour emergency /EMD
See the Lumenloop LED panel lighting range for related mounting, output and optic options.
Product type600x600 edge-lit LED panel
Model codesLUCID.001, LUCID.002, LUCID.003, LUCID.004, LUCID.005, LUCID.006
Output2,975–4,525 lm
System power26.5–39 W
Colour temperature3000K / 4000K
FinishSee model schedule
ControlsNon-dimmable standard; /ECO SwitchDIM, DALI or DSI; /BTC Casambi
EmergencyThree-hour emergency, 3-hour emergency /EM; DALI 3-hour emergency /EMD
Models, options and accessories
low-glare LED panel lighting for suspended ceilings.
Lucid is an 600x600 edge-lit LED panel designed to fit modular suspended ceiling grids in offices and commercial interiors. The low-glare panel light provides even ceiling illumination while retaining the familiar 600 x 600 format used in standard ceiling systems.
Use the product details and model schedule to compare lumen output, colour temperature, control gear and emergency options before specifying the fitting. This keeps panel selection tied to the required light distribution and ceiling layout rather than a one-size-fits-all LED panel.
Lucid model codes and specification options.
Choose the Lucid base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes6 listed configurations
Output, colour temperature and power are shown for each model.
2,975 lm / 3000K / 26.5 W
3,175 lm / 4000K / 26.5 W
3,850 lm / 3000K / 34.5 W
4,100 lm / 4000K / 34.5 W
4,250 lm / 3000K / 39 W
4,525 lm / 4000K / 39 W
Additional Lucid options and accessoriesProduct images and specification choices
Controls/ECO
Specification dimming and control gear
Controls/BTC
Casambi Bluetooth wireless control
Emergency/EM
3-hour emergency conversion
Emergency/EMD
DALI 3-hour emergency conversion
Diffuser/TPA
Self-extinguishing TP(a) diffuser
AccessoriesPBF.178
Plasterboard mounting kit
AccessoriesSURF.178
Surface mount frame
AccessoriesSUS.178/1.2M
1.2 m wire suspension kit
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Lucid
Why specify this 600x600 edge-lit LED panel?
Published output and system power are listed by model in the specification schedule.
Lucid 600x600 edge-lit LED panel. Output: 2,975–4,525 lm; system power: 26.5–39 W. Colour temperature: 3000K / 4000K.
A familiar ceiling format with a stronger low-glare specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
UGR<19 performance
Controlled glare for offices, schools and healthcare environments.
600 x 600 format
A familiar modular size for standard ceiling systems.
4 model choices
Published output and system power are listed by model in the specification schedule.
Mounting flexibility
Recessed, surface, plasterboard and suspended arrangements are listed.
Output2,975–4,525 lm6 listed models
CCT3000K / 4000KModel dependent
Options9Controls and accessories
Typical applicationsWhere Lucid is specified
Offices
Low-glare modular lighting for desks, meeting rooms and circulation.
Education
Controlled general illumination for classrooms and shared areas.
Healthcare
Uniform low-glare lighting for suitable clinical and support interiors.
Commercial refurbishment
A 600 x 600 panel with several mounting and control arrangements.
Compare Lucid with the wider led panel lighting when reviewing output, optics, mounting, controls and emergency requirements.
low-glare 600x600 LED panel
Aurora
Low-glare 600x600 LED panel. Review the model schedule and compatible options.
Compare product →
edge-lit UGR19 600x600 LED panel
Edge-Lite
Edge-lit UGR19 600x600 LED panel. Review the model schedule and compatible options.
Compare product →
direct indirect LED panel
Luminate
Direct indirect LED panel. Review the model schedule and compatible options.
Compare product →Specification questions
Lucid details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
6 configurations are listed: LUCID.001, LUCID.002, LUCID.003, LUCID.004, LUCID.005, LUCID.006.
Models cover 2,975–4,525 lm and 26.5–39 W. See the model schedule for individual output, power and CCT.
Control options include Non-dimmable standard; /ECO SwitchDIM, DALI or DSI; /BTC Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, 3-hour emergency /EM; DALI 3-hour emergency /EMD. Select the emergency requirement separately from the base model and normal control method.
The configurator shows the product dimensional drawing. The product datasheet contains further construction and installation information.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Lucid datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
