UGR <19
Low-glare optical design for LG7-style panel applications.
Aurora low-glare 600x600 LED panel
Low-glare 600 x 600 back-lit LED modular panel for schools, offices and LG7-style commercial spaces. Applications include schools, offices and commercial areas requiring UGR<19 low-glare modular panels, LED and driver platform: Philips-powered back-lit panel and optics: UGR<19 low glare; self-extinguishing TP(a) diffuser.
Philips platform
Philips-powered back-lit panel and MasterConnect options.
50,000h life
file lists long life greater than 50,000 hours L90/B10.
Wireless control
DALI, MasterConnect and Casambi options available.
Model references
AURORA.001 to AURORA.006
Application
Schools, offices and commercial areas requiring UGR<19 low-glare modular panels.
Mounting
Recessed modular panel
Optics
UGR<19 low glare; self-extinguishing TP(a) diffuser
Application
Schools, offices and commercial areas requiring UGR<19 low-glare modular panels.
Optics
UGR<19 low glare; self-extinguishing TP(a) diffuser
Output
2425 - 4200 lm
Mounting
Recessed modular panel
Download Datasheet
Technical datasheet for product reference.
Photometric Data
Photometric data pack for lighting calculations.
Project selection
Available luminaire options and accessories are shown below.
Configure For Enquiry
Configure Aurora for enquiry.
Select the output, optic, finish, control gear and accessories needed for the project, then send the configuration to Lumenloop for product information or a quotation.
Configured Specification
Selected Aurora specification.
Selection reference
AURORA.001
Selection reference
AURORA.001
Technical Description
Low-glare 600x600 LED panel specification for Aurora.
Low-glare 600 x 600 back-lit LED modular panel for schools, offices and LG7-style commercial spaces. Applications include schools, offices and commercial areas requiring UGR<19 low-glare modular panels, LED and driver platform: Philips-powered back-lit panel and optics: UGR<19 low glare; self-extinguishing TP(a) diffuser.
Performance and installation details include optics: UGR<19 low glare; self-extinguishing TP(a) diffuser, LED and driver platform: Philips-powered back-lit panel, colour rendering: Colour rendering >Ra80 and mounting: Recessed modular panel. This section covers output, optics, mounting and control requirements.
Available options include controls: Wireless, DALI and sensor control options, colour rendering: Colour rendering >Ra80 and LED and driver platform: Philips-powered back-lit panel. Model codes, control compatibility and lead times vary by configuration. Supporting resources include datasheet and Photometric data, where published.
Specification-led low-glare 600x600 LED panel features.
- UGR <19: Low-glare optical design for LG7-style panel applications.
- Philips platform: Philips-powered back-lit panel and MasterConnect options.
- 50,000h life: file lists long life greater than 50,000 hours L90/B10.
- Wireless control: DALI, MasterConnect and Casambi options available.
- Self-extinguishing TP(a) diffuser: Supports controlled distribution and visual comfort in the finished ceiling.
- UGR <19 low glare: Supports LG7 compliance.
- Application: Schools, offices and commercial areas requiring UGR<19 low-glare modular panels.
- Optics: UGR<19 low glare; self-extinguishing TP(a) diffuser

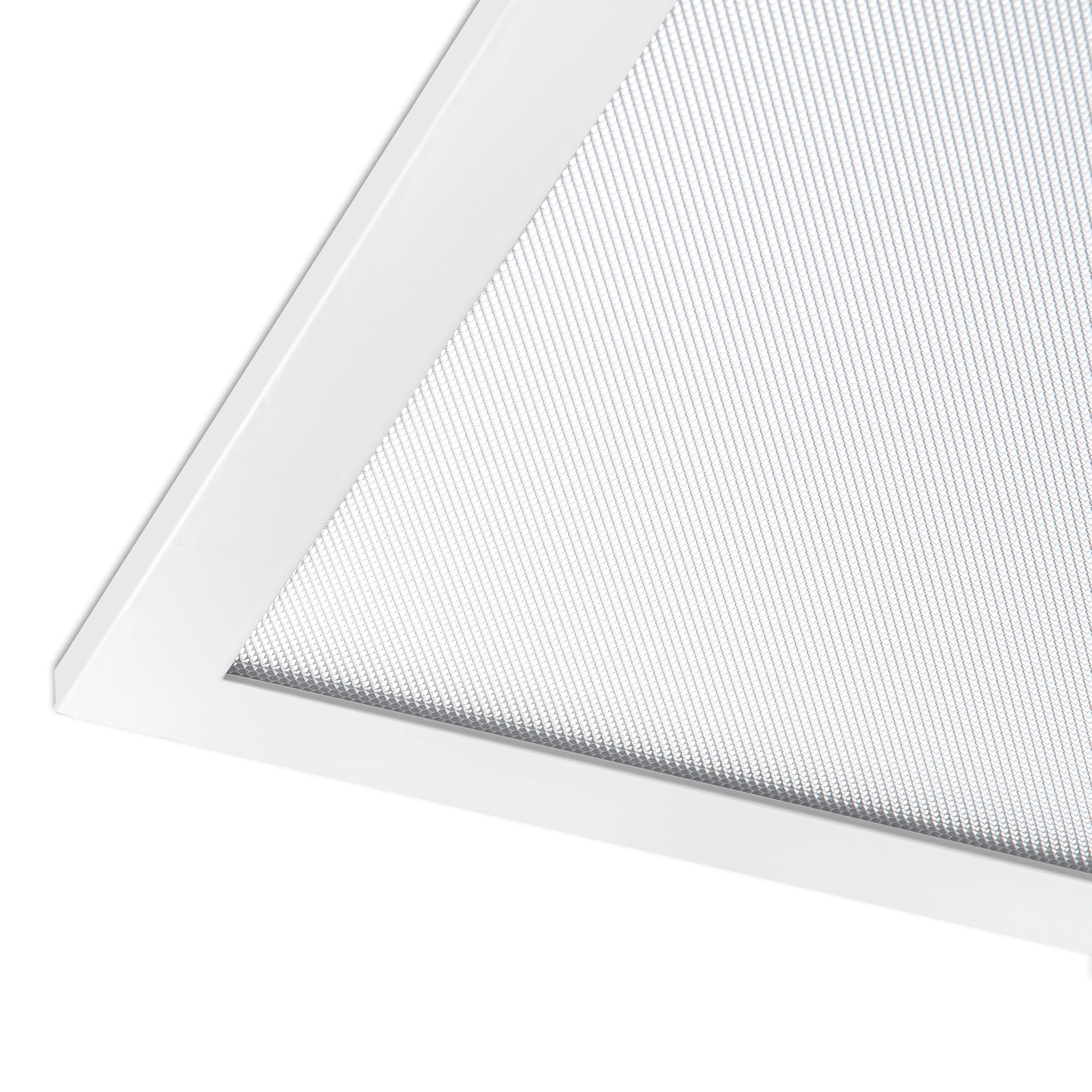

LED Panel Construction
Aurora quick technical reference.
Low-glare 600 x 600 back-lit LED modular panel for schools, offices and LG7-style commercial spaces.
Key specification points include mounting: Recessed modular panel, optics: UGR<19 low glare; self-extinguishing TP(a) diffuser and LED and driver platform: Philips-powered back-lit panel.
Project notes include Controls and dimming: Touch dimming or DALI driver /T+DALI, Philips MasterConnect wireless control driver /MC, Casambi wireless control driver /BTC, Ra90 high colour rendering LED module /R9 and Integral Philips MasterConnect sensor /MCIS. Emergency: 3hr emergency /EM, 3hr self-test emergency /EMS and 3hr DALI emergency /EMP. Mounting and accessories: Surface mounting kit SURF.18, Plasterboard mounting kit PBF.178, Remote Philips MasterConnect sensor MCSNR, Wireless Casambi single wall switch BTWS001 and Wireless Casambi twin wall switch BTWS002. Supporting files include datasheet and Photometric data.
Specification Choices
Aurora specification options.
Output and CCT
AURORA.0012425 lm | 19.0 W | 3000K
Output and CCT
AURORA.0022575 lm | 19.0 W | 4000K
Output and CCT
AURORA.0033100 lm | 24.5 W | 3000K
Output and CCT
AURORA.0043300 lm | 24.5 W | 4000K
Output and CCT
AURORA.0053975 lm | 32.0 W | 3000K
Output and CCT
AURORA.0064200 lm | 32.0 W | 4000K
Options And Accessories
Aurora options, finishes and controls.
/T+DALI/MC/BTC/R9/MCIS

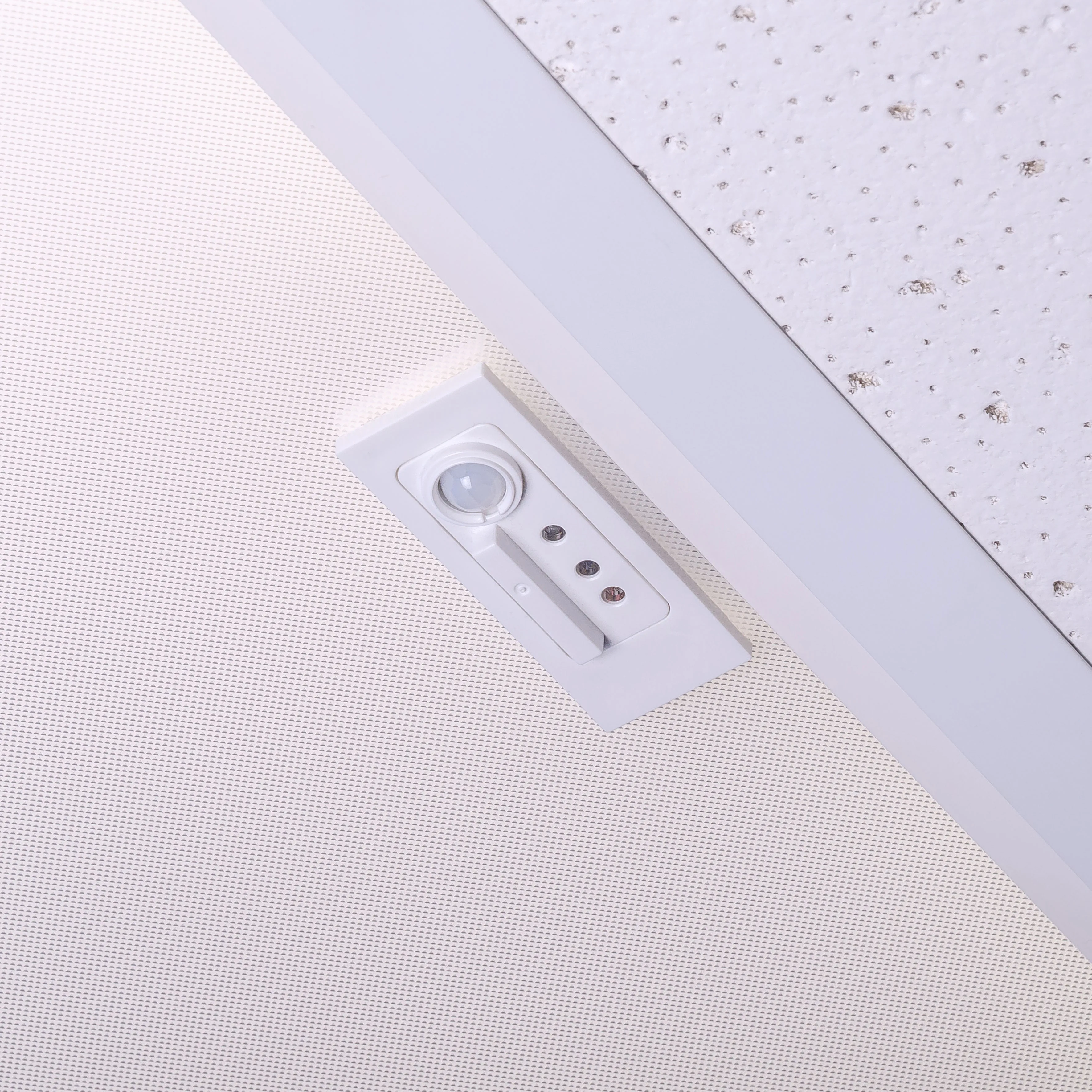

Touch dimming or DALI driver /T+DALI; Philips MasterConnect wireless control driver /MC; Casambi wireless control driver /BTC; Ra90 high colour rendering LED module /R9; Integral Philips MasterConnect sensor /MCIS
/EM/EMS/EMP
3hr emergency /EM; 3hr self-test emergency /EMS; 3hr DALI emergency /EMP
SURF.18PBF.178MCSNRBTWS001BTWS002
Surface mounting kit SURF.18; Plasterboard mounting kit PBF.178; Remote Philips MasterConnect sensor MCSNR; Wireless Casambi single wall switch BTWS001; Wireless Casambi twin wall switch BTWS002
Custom configuration
Plug-and-play connector choices and illuminated image panel variations are available as Custom configuration.
Include the required connector arrangement or illuminated panel variation in the quote request so the correct build can be confirmed.
Specification reasons
Why specify Aurora?
Optics
UGR <19
Low-glare optical design for LG7-style panel applications.
Selection point
Philips platform
Philips-powered back-lit panel and MasterConnect options.
Warranty
50,000h life
file lists long life greater than 50,000 hours L90/B10.
Controls
Wireless control
DALI, MasterConnect and Casambi options available.
Optics
Self-extinguishing TP(a) diffuser
Supports controlled distribution and visual comfort in the finished ceiling.
Optics
UGR <19 low glare
Supports LG7 compliance.
Product FAQs
Aurora specification questions.
Specification notes for contractors, consultants and buyers checking low-glare 600x600 LED panel options before ordering.
What makes Aurora different from a standard low-glare 600x600 LED panel?
Low-glare 600 x 600 back-lit LED modular panel for schools, offices and LG7-style commercial spaces. Applications include schools, offices and commercial areas requiring UGR<19 low-glare modular panels, LED and driver platform: Philips-powered back-lit panel and optics: UGR<19 low glare; self-extinguishing TP(a) diffuser.
Which ceilings or mounting conditions should be checked for Aurora?
Mounting: Recessed modular panel. Dimensions: 595 mm x 595 mm x 36.5 mm. Length: 595 mm. Width: 595 mm. Check ceiling build-up, access space and fixing method before ordering.
Which outputs, wattages and colour temperatures are available?
Output: 2425 - 4200 lm. Power: 19.0 - 32.0 tcW. Colour rendering: Colour rendering >Ra80. Output, colour temperature, control gear and emergency options vary by configuration.
What controls and emergency options can be specified?
Controls and dimming: Touch dimming or DALI driver /T+DALI, Philips MasterConnect wireless control driver /MC, Casambi wireless control driver /BTC, Ra90 high colour rendering LED module /R9 and Integral Philips MasterConnect sensor /MCIS. Emergency: 3hr emergency /EM, 3hr self-test emergency /EMS and 3hr DALI emergency /EMP. Confirm compatibility with the project control strategy, emergency schedule and selected base model before quotation.
Can finishes, accessories or product variations be specified?
Mounting and accessories: Surface mounting kit SURF.18, Plasterboard mounting kit PBF.178, Remote Philips MasterConnect sensor MCSNR, Wireless Casambi single wall switch BTWS001 and Wireless Casambi twin wall switch BTWS002. Plug-and-play connector choices and illuminated image panel variations are available as Custom configuration. Include the required finish, accessory or special variation in the quote request so the correct build can be confirmed.
Are photometric, BIM or installation files available?
Available resources include the datasheet and photometric data for specification and product selection.
What lead time should be allowed for Aurora?
Lead time depends on quantity, finish, control gear, emergency conversion and current production capacity. Confirm the current project lead time with Lumenloop before placing an order.
Related commercial paths
Where this panel sits in the commercial range.
Related pages cover panel products alongside classroom, office, emergency and control requirements.
LED panel lighting
Parent category for commercial panel families and product filters.
Emergency LED panelsEmergency panel selection where emergency conversion or testing is needed.
UGR19 panel guideLow-glare panel guidance for classrooms and office task areas.
School LED replacementEducation application route for classroom and estate replacement work.
Product Support
Check product options and datasheets.
Share the selected code, room type, control preference and any accessory requirements. Lumenloop can provide datasheets, option notes and supporting files for the selected fitting.
