Ceiling cut-out200 mm
DOWNLIGHTS switchable CCT LED downlight
Lumiswitchable CCT LED downlight
Lumi.
switchable CCT LED downlight.
Lumi is a switchable CCT LED downlight with recessed opal PC diffuser optics, 3000K, 4000K and 5600K model options, a Tridonic-powered SMD LED platform, and tunable white + DALI, Casambi and emergency variants.
- Output
- 1,475–3,500 lm 4 model codes
- Colour temperature
- 3000K / 4000K / 5600K model dependent
- Options
- 8 listed controls and accessories
01 / 06
Model codesLUMI.0011,625 lm at 3000K / 1,625 lm at 4000K / 1,475 lm at 5600KLUMI.0022,250 lm at 3000K / 2,275 lm at 4000K / 2,025 lm at 5600K
Output1,475–3,500 lm
Colour temperature3000K / 4000K / 5600K
ControlsMains dimming, DALI, Casambi
Ceiling cut-out200 mm
Product configurator
Configure your Lumi
Choose the Lumi model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
switchable CCT LED downlightLumi is a switchable CCT IP54 downlight with recessed opal PC diffuser optics, 3000K and 4000K model options, a Tridonic-powered SMD LED platform, and tunable white + DALI, Casambi and emergency variants.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Lumi switchable CCT LED downlight quick specification.
Check the installation, output, colour temperature and control information for this switchable CCT LED downlight before reviewing the full model schedule.
Bezel228 mm
Output1,475–3,500 lm
System power13–31.5 W
CCT3000K / 4000K / 5600K
ControlsMains dimming, SwitchDIM, DSI, DALI, Casambi
Product files
Download Lumi technical files.
Available files for this exact product are listed below.
Verified distributionIntensity · cd/klm
Technical description
Switchable CCT IP54 downlight specification for Lumi.

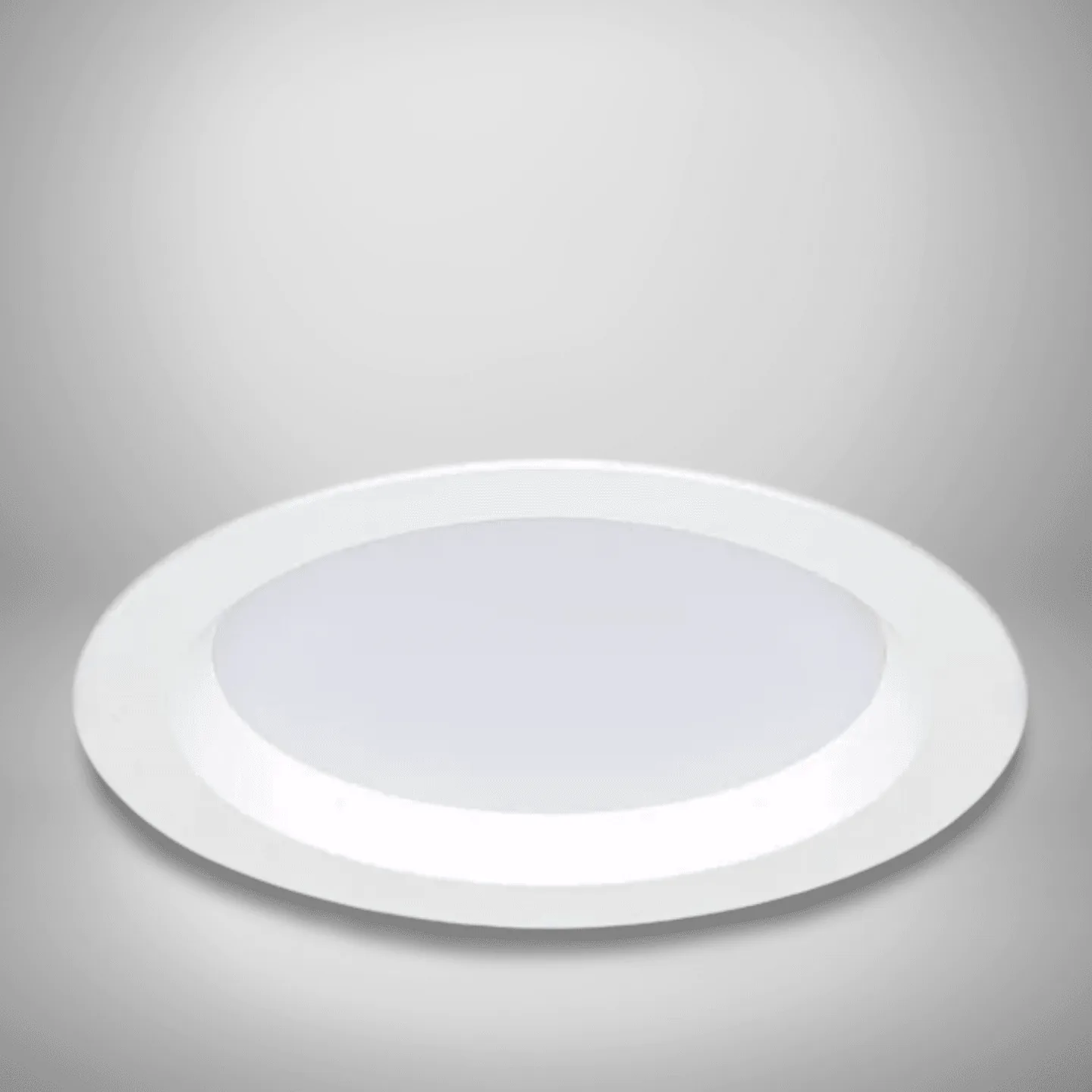

Lumi is a switchable CCT IP54 downlight with a recessed opal PC diffuser and a clean circular aperture for commercial ceilings. The four model codes provide 3000K, 4000K and 5600K output variants.
Lumi construction and mounting
Model codes LUMI.001 to LUMI.004 cover outputs from 1,475 lm to 3,500 lm across 13 W to 31.5 W, depending on the selected output package and colour temperature.
Recessed opal PC diffuser optics.
Output, optics and colour temperature
For switchable CCT downlight specifications, compare the model codes, outputs and available options below.
Lumi output is 1,475–3,500 lm.
System power options are 13–31.5 W.
Controls, emergency and project options
The switchable CCT downlight range includes 3000K, 4000K and 5600K variants across four output packages. Where tunable-white control is required, the range also lists a dedicated tunable-white and DALI suffix.
Control options include tunable white + DALI (/T+DALI), mains dimming (/MDIM) and Casambi wireless (/BTC). Emergency suffixes include 3-hour emergency (/EM), self-test / DALI emergency (/EMD), maintained emergency (/EMI) and DALI emergency (/EMDI), so the main model code can be paired with the required control and emergency arrangement.
Control options include Tunable white + DALI, Mains dimming, Casambi wireless.
Output1,475–3,500 lm
System power13–31.5 W
Colour temperature3000K / 4000K / 5600K
FinishSee datasheet
ControlsMains dimming, DALI, Casambi
EmergencyThree-hour emergency, Maintained emergency, Self-test emergency, DALI emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeswitchable CCT LED downlight
Model codesLUMI.001, LUMI.002, LUMI.003, LUMI.004
Output1,475–3,500 lm
System power13–31.5 W
Colour temperature3000K / 4000K / 5600K
FinishSee datasheet
ControlsMains dimming, DALI, Casambi
EmergencyThree-hour emergency, Maintained emergency, Self-test emergency, DALI emergency
Models, options and accessories
Lumi model codes and specification options.
Choose the Lumi base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes4 listed configurations
4 models are shown with output, CCT and power information where available.
13–13.5 W
18.5–19.5 W
22–23 W
30–31.5 W
Additional Lumi options and accessoriesProduct images and specification choices
Finish/UB
Universal bezel for decorative accessories
Controls/T+DALI
Tunable white with DALI control
Controls/MDIM
Phase-cut mains dimming
Controls/BTC
Casambi Bluetooth wireless control
Emergency/EM
3-hour emergency conversion
Emergency/EMD
Self-test or DALI emergency conversion
Emergency/EMI
Maintained emergency conversion
Emergency/EMDI
DALI emergency option
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Lumi
Why specify this switchable CCT LED downlight?
Lumi is a switchable CCT IP54 downlight with recessed opal PC diffuser optics, 3000K and 4000K model options, a Tridonic-powered SMD LED platform, and tunable white + DALI, Casambi and emergency variants.
The 8-model family combines 1,475–3,500 lm, 3000K / 4000K / 5600K and 8 listed configuration choices without changing the core product identity.
Lumi options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
98% recyclable
Lumi is available for projects requiring 98% recyclable lighting.
commercial
Lumi is available for projects requiring commercial lighting.
high efficacy
Lumi is available for projects requiring high efficacy lighting.
IP54
Lumi is available for projects requiring ip54 lighting.
Output1,475–3,500 lm4 listed models
CCT3000K / 4000K / 5600KModel dependent
Options8Controls and accessories
Typical applicationsWhere Lumi is specified
Downlights
Use Lumi where downlights lighting is required.
Commercial interiors
Lumi is a switchable CCT IP54 downlight with recessed opal PC diffuser optics, 3000K and 4000K model options, a Tridonic-powered SMD LED platform, and tunable white + DALI, Casambi and emergency variants.
Commercial interiors
Lumi is a switchable CCT IP54 downlight with recessed opal PC diffuser optics, 3000K and 4000K model options, a Tridonic-powered SMD LED platform, and tunable white + DALI, Casambi and emergency variants.
Commercial interiors
Lumi is a switchable CCT IP54 downlight with recessed opal PC diffuser optics, 3000K and 4000K model options, a Tridonic-powered SMD LED platform, and tunable white + DALI, Casambi and emergency variants.
Compare Lumi with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
switchable CCT mini LED downlight

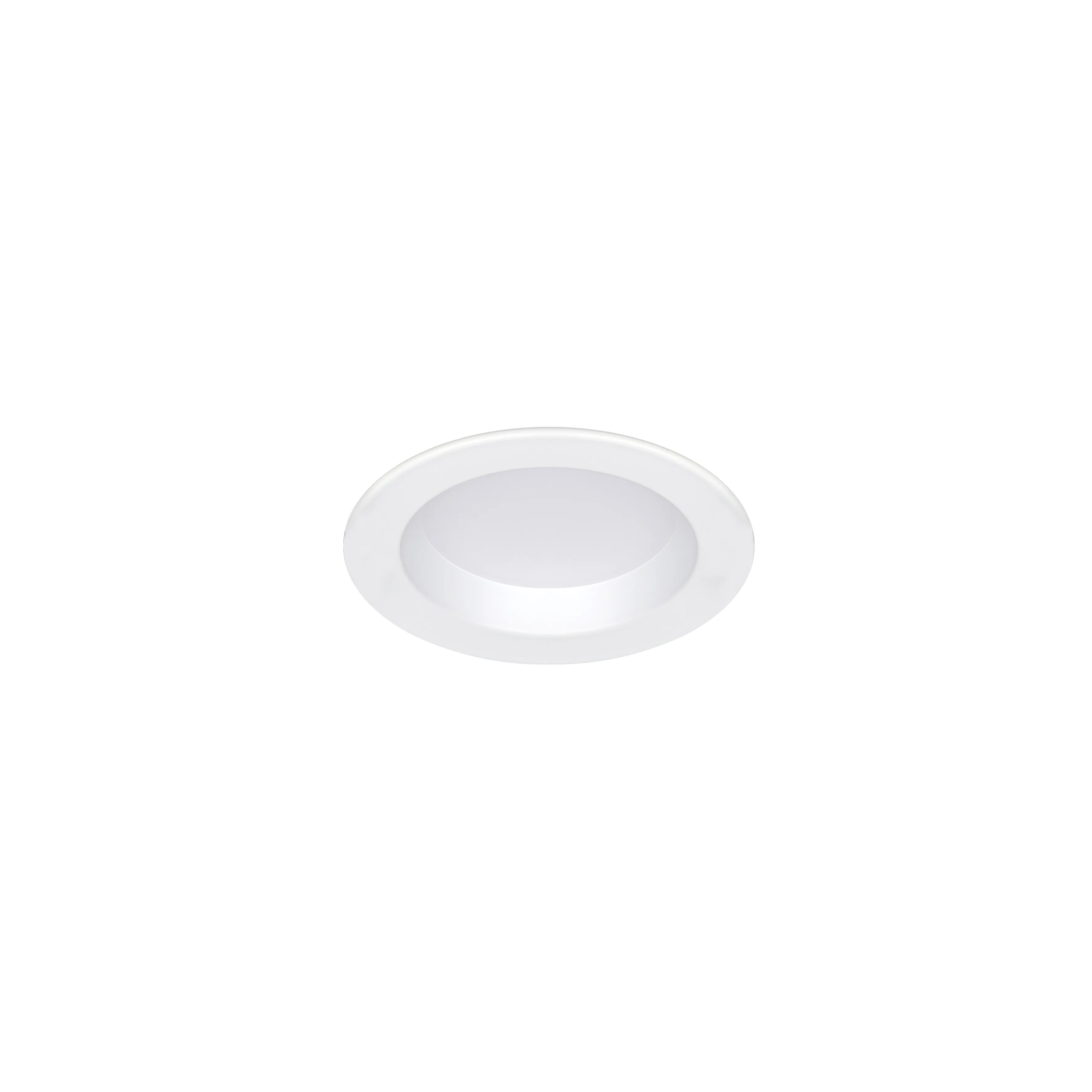

Nova
Nova is a switchable CCT mini LED downlight for commercial interiors, the Nova LED Downlight combines flexibility with efficiency.
Compare product →
colour switchable IP54 downlight
Trio
Trio is a colour switchable IP54 downlight with a recessed opal PC diffuser, two 3-CCT model codes, 1200 lm and 2275 lm outputs, Tridonic-powered SMD LEDs, and mains dimming, DALI, Casambi and emergency options.
Compare product →
IP54 LED downlight
Aero
Aero is an IP54 LED downlight designed for commercial applications.
Compare product →Specification questions
Lumi details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
4 configurations are listed: LUMI.001, LUMI.002, LUMI.003, LUMI.004.
The listed models cover 1,475–3,500 lm. Colour-temperature choices are 3000K / 4000K / 5600K.
Control options include Mains dimming, DALI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Maintained emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The Lumi requires a 200 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Lumi datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
Product quotation
Request a quotation for Lumi.
Send the selected code, quantity and any mounting, control, emergency or finish requirements. Your configurator choices are carried into the form automatically.
Configuration retainedThe product code and quantity update as you configure the fitting.
Useful project detailAdd the application, required date and any option requirements you already know.
Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.
Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
