MountingSurface or suspended
LINEAR dark-light suspended linear luminaire
Lumadark-light suspended linear luminaire
Luma.
dark-light suspended linear luminaire.

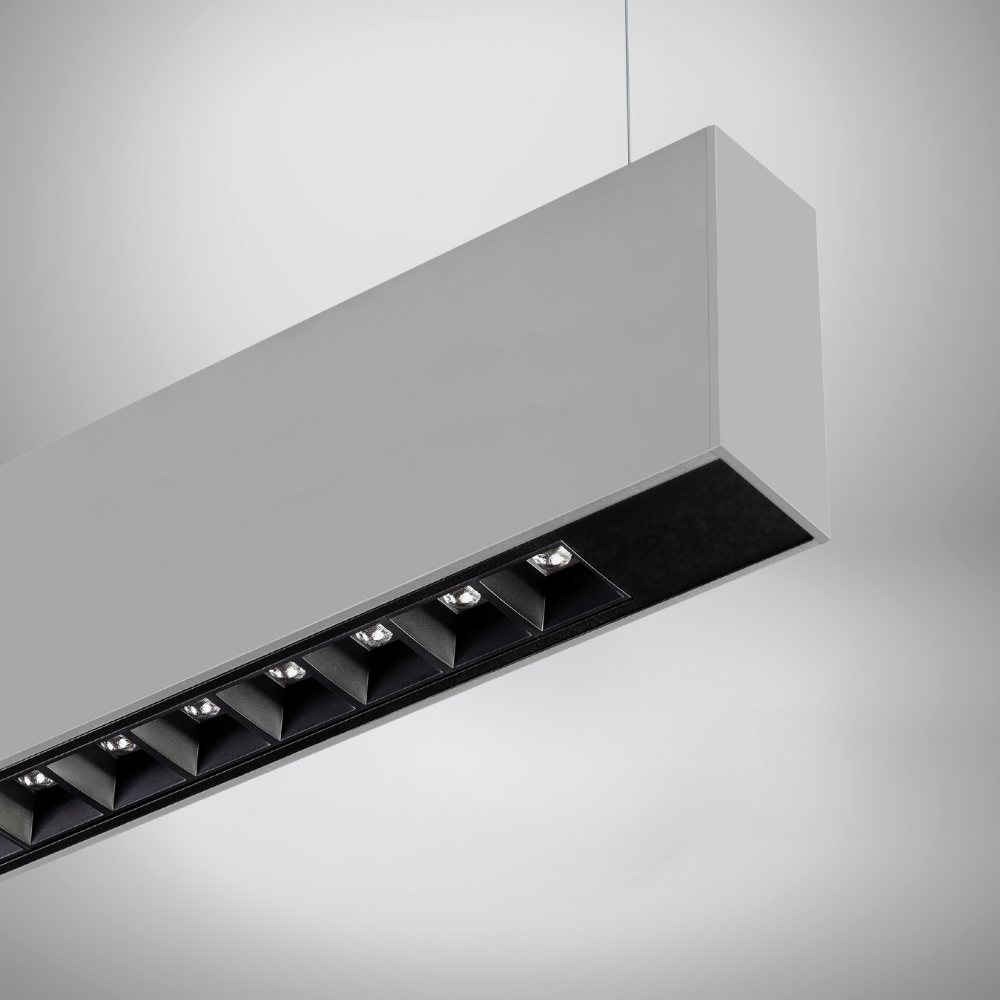

Luma is a dark-light suspended linear luminaire for architectural and commercial interiors, with a low-profile body and matt black dark-light baffles for controlled illumination.
The 1.2 m and 1.5 m formats can be surface mounted or suspended, with twelve 3000K and 4000K model configurations from 1,850 to 4,675 lm.
- Output
- 1,850–4,675 lm 12 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 9 suffixes plus 4 accessories
01 / 10
Output1,850–4,675 lm
Colour temperature3000K / 4000K
ControlsDALI, SwitchDIM, DSI, Casambi
Configuration9 suffixes / 4 accessories
Product configurator
Configure your Luma
Choose the Luma length, output and colour temperature first, then add the required finish, optic, control and emergency suffixes.
LuminaireProduct family
dark-light suspended linear luminaireLuma is a UK-made low-glare linear luminaire with matt black dark-light baffles, a standard 50-degree office lens and surface or suspended mounting.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Luma low-glare linear luminaire quick specification.
Check the mounting, dimensions, output, power, colour temperature and optics before reviewing the full model schedule.
Dimensions62 × 72 mm
Output1,850–4,675 lm
System power14–33 W
CCT3000K / 4000K
Optics50° / 80°
Product files
Download Luma technical files.
Available files for this exact product are listed below.
C0 solid · C90 dashedIntensity · cd/klm
Technical description
Low-glare linear luminaire specification for Luma.
Luma is a UK-made, ultra-low-glare LED linear luminaire for commercial interiors. Its 62 × 72 mm body combines matt black dark-light baffles with a standard 50-degree office lens, Tridonic LED and driver components and twelve output, length and colour-temperature combinations.
Luma construction and mounting

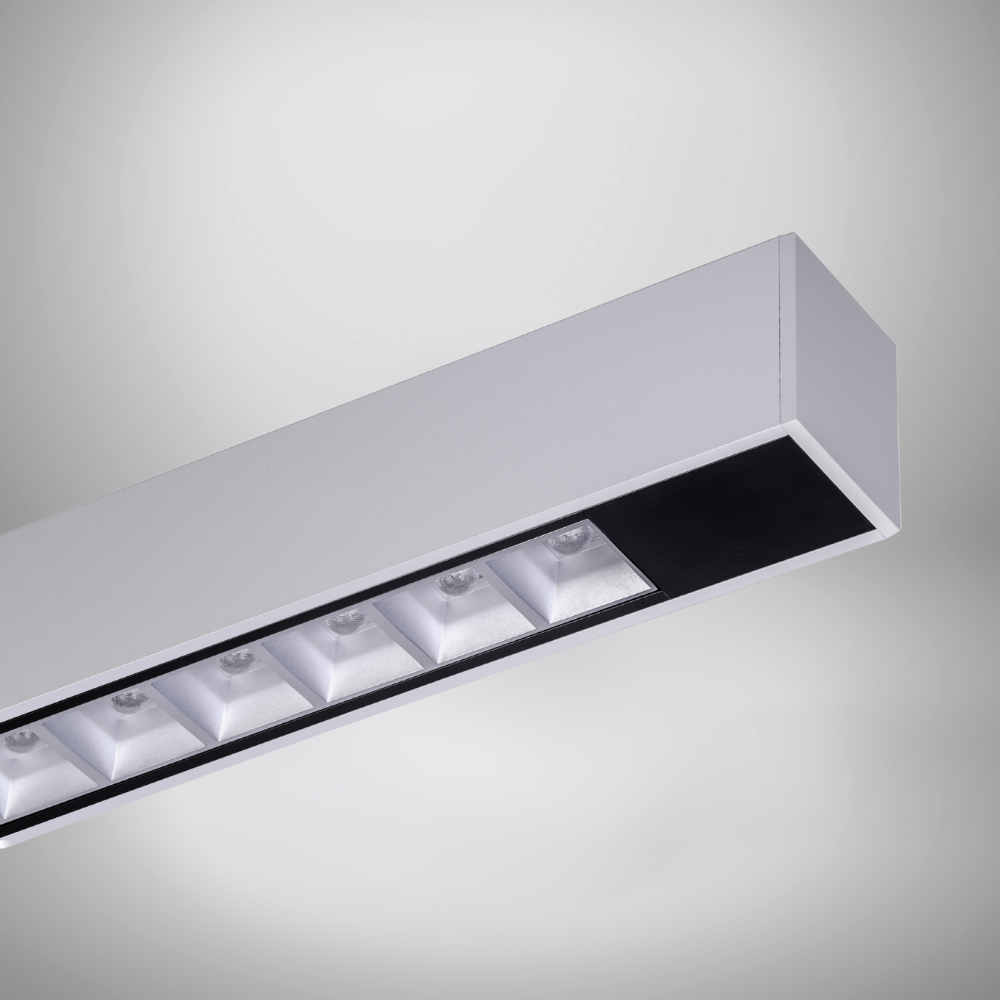

The extruded body is available in 1,271 mm and 1,550 mm lengths. RAL 9006 grey is standard, with RAL 9016 white and RAL 9005 black body options. Surface mounting is standard; suspended installations use the separate LUMA.ACC.03 suspension kit.
Output, optics and colour temperature
Outputs run from 1,850 to 4,675 lm at 14 to 33 W, with 3000K and 4000K models. The schedule records UGR values from 12 to 14 and efficacy from 132 to 143 lm/W. The standard office lens is listed at 50 degrees; the /WB option uses 80-degree wide-beam lenses.
Controls and emergency
/ECO provides SwitchDIM, DALI or DSI control gear. /BTC provides Bluetooth control including dimming. Integral emergency options are /EMI, /EMSI and /EMDI, with /ECO/EMDI for a DALI luminaire and DALI emergency arrangement.
LED system and service life
The datasheet specifies a Tridonic LED and driver platform with lumen maintenance of L80/F10 beyond 75,000 hours.
Output1,850–4,675 lm
System power14–33 W
Optics50° standard / 80° wide beam
Profile62 × 72 mm
Glare controlUGR 12–14 by model
Service life>75,000 h L80/F10
See the Lumenloop suspended lighting range for related mounting, output and optic options.
MountingSurface mounted as standard; suspension with LUMA.ACC.03
Dimensions1,271 / 1,550 mm long · 62 mm wide · 72 mm high
FinishRAL 9006 grey standard; /WH RAL 9016 white; /BK RAL 9005 black
Controls/ECO SwitchDIM, DALI or DSI · /BTC Bluetooth control including dimming
Emergency/EMI integral · /EMSI self-test · /EMDI DALI emergency
| Model | Length | Output / CCT | Power | UGR |
|---|---|---|---|---|
| LUMA.001/LO | 1.2 m | 1,850 lm / 3000K | 14 W | 12 |
| LUMA.001 | 1.2 m | 2,725 lm / 3000K | 20 W | 13 |
| LUMA.001/HO | 1.2 m | 3,575 lm / 3000K | 27 W | 14 |
| LUMA.002/LO | 1.2 m | 1,925 lm / 4000K | 14 W | 12 |
| LUMA.002 | 1.2 m | 2,850 lm / 4000K | 20 W | 13 |
| LUMA.002/HO | 1.2 m | 3,750 lm / 4000K | 27 W | 14 |
| LUMA.003/LO | 1.5 m | 2,300 lm / 3000K | 17 W | 12 |
| LUMA.003 | 1.5 m | 3,425 lm / 3000K | 25 W | 13 |
| LUMA.003/HO | 1.5 m | 4,475 lm / 3000K | 33 W | 14 |
| LUMA.004/LO | 1.5 m | 2,400 lm / 4000K | 17 W | 12 |
| LUMA.004 | 1.5 m | 3,575 lm / 4000K | 25 W | 13 |
| LUMA.004/HO | 1.5 m | 4,675 lm / 4000K | 33 W | 14 |
Models, options and accessories
Luma model codes and specification options.
Choose the required length, output and colour temperature, then add only the finish, optic, control or emergency suffixes needed for the luminaire.
Model codes12 verified configurations
Four model families cover 1.2 m and 1.5 m lengths, 3000K and 4000K, with low, standard and high-output variants.
1,850 lm3000K14 W
2,725 lm3000K20 W
3,575 lm3000K27 W
1,925 lm4000K14 W
2,850 lm4000K20 W
3,750 lm4000K27 W
2,300 lm3000K17 W
3,425 lm3000K25 W
4,475 lm3000K33 W
2,400 lm4000K17 W
3,575 lm4000K25 W
4,675 lm4000K33 W
Luma options and accessoriesSource-backed product choices

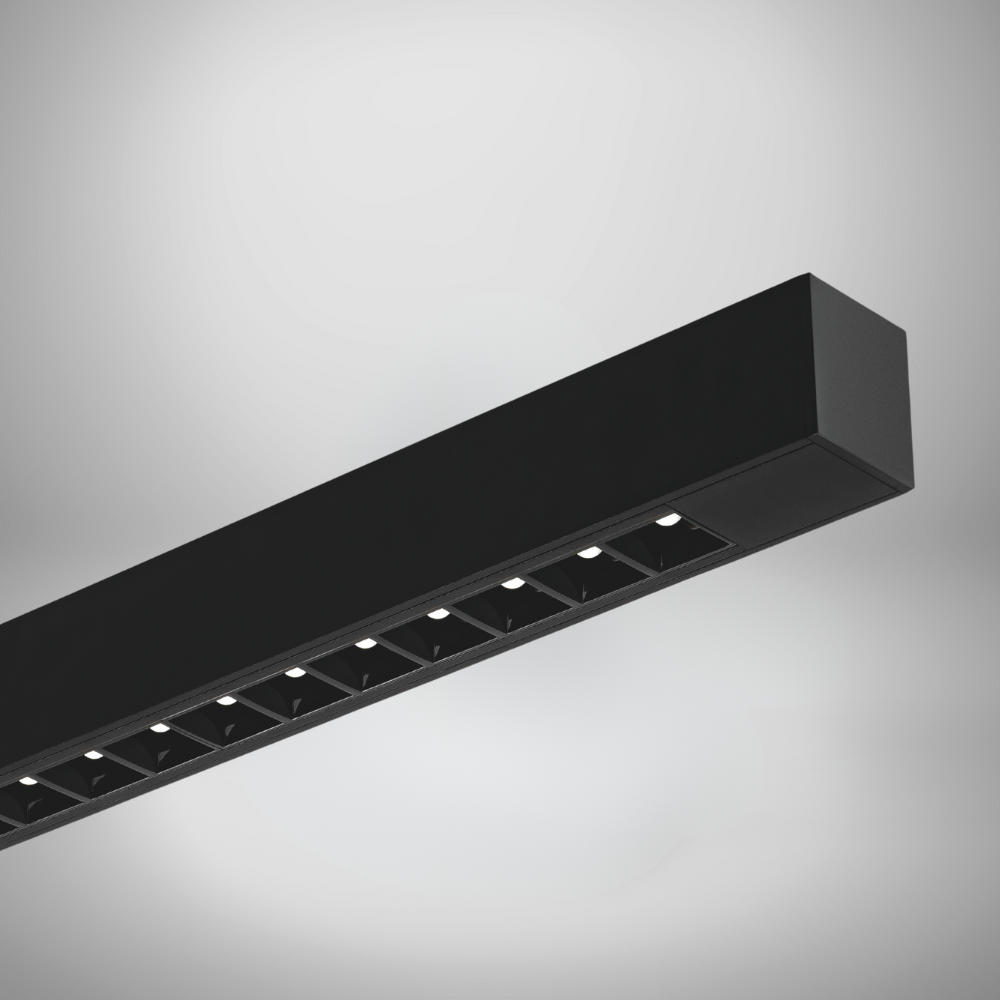

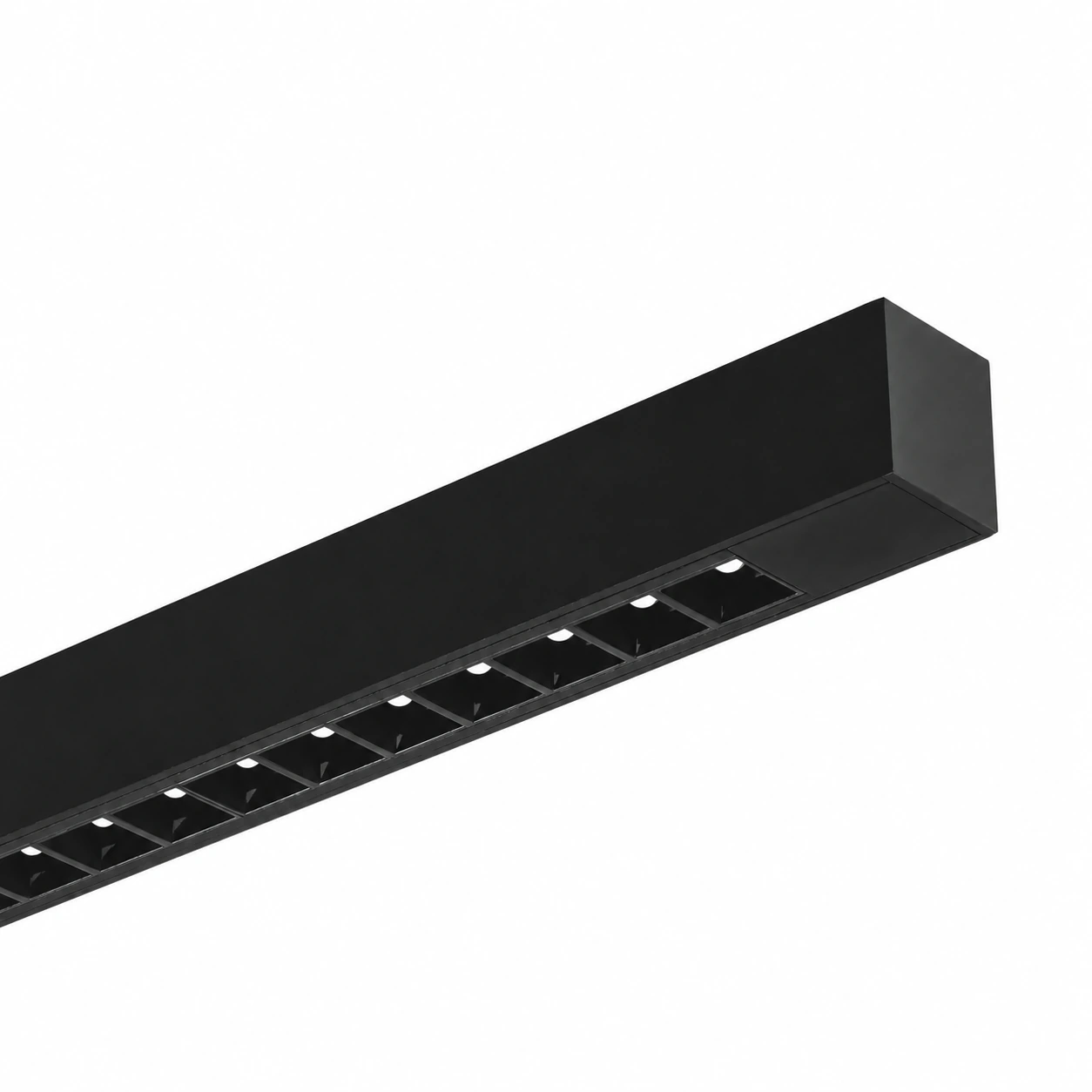

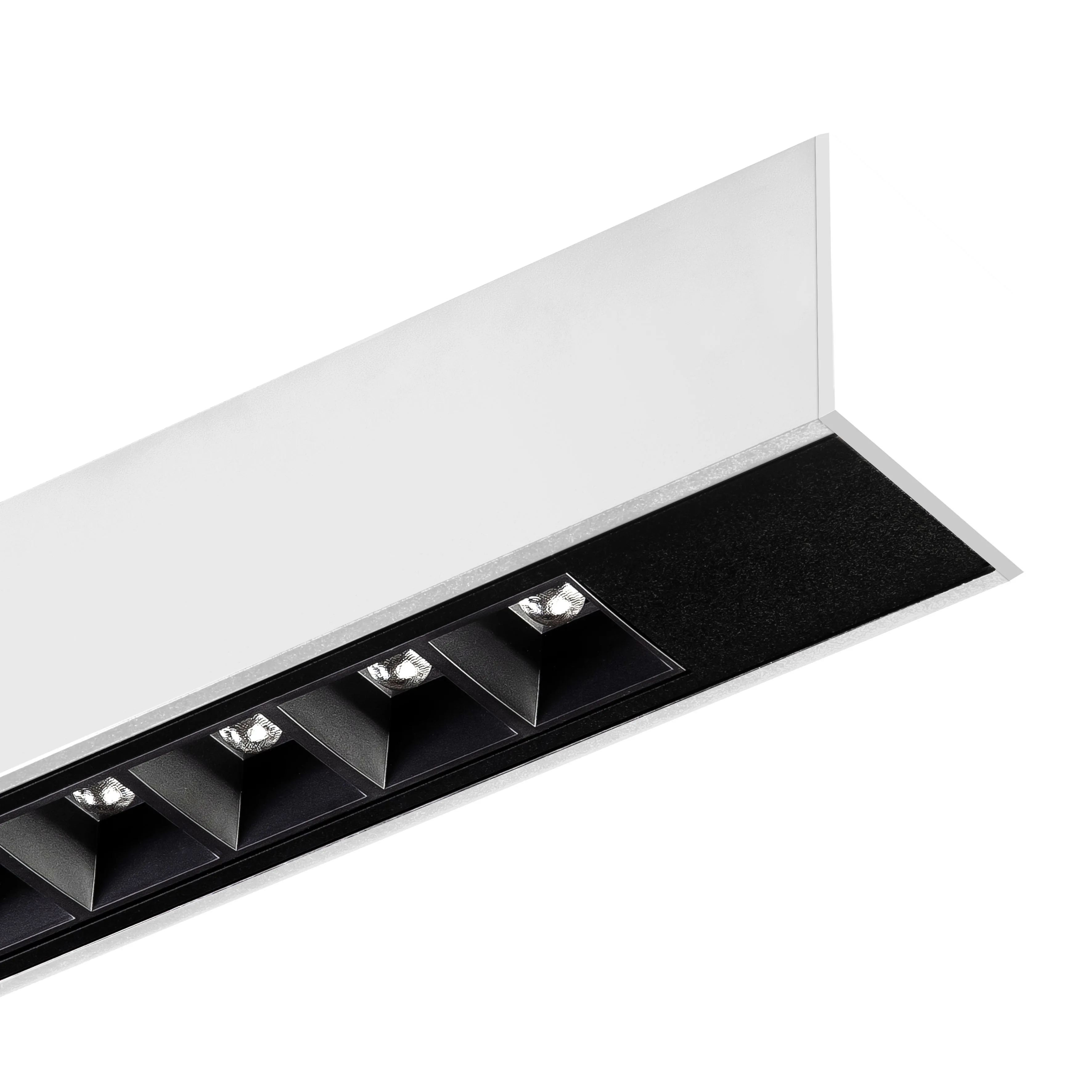

Body finishes/WH · /BK
RAL 9016 white or RAL 9005 black body; RAL 9006 grey is standard.

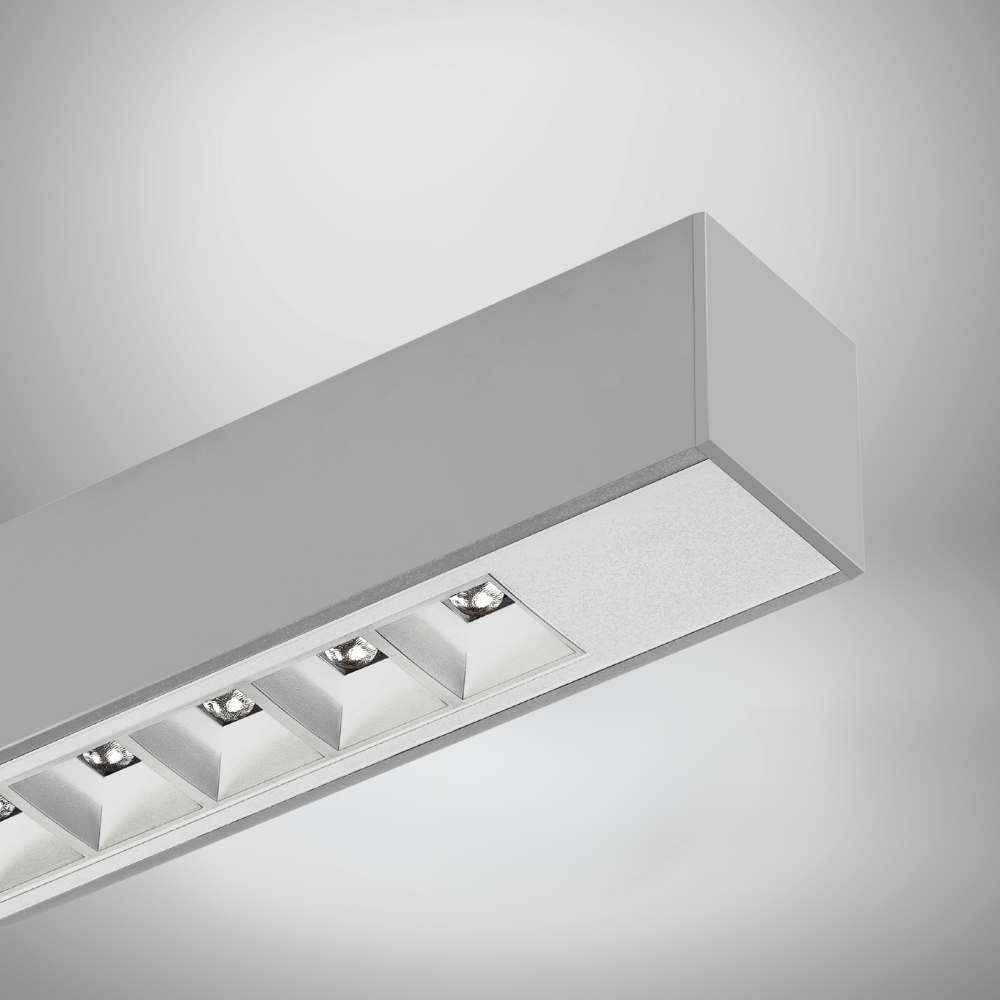

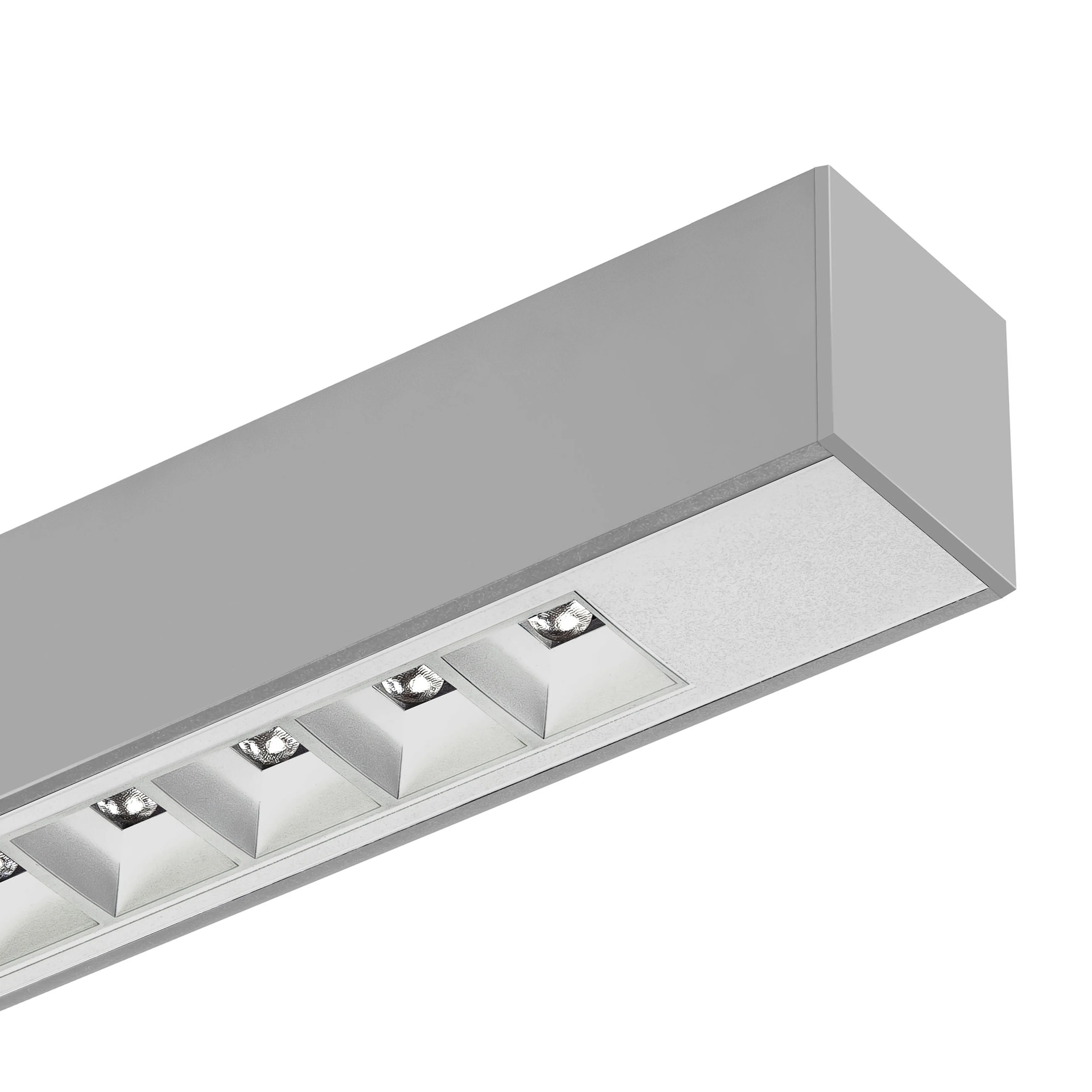

Optics and baffles/WSB · /WB
White soft-light baffles or 80-degree wide-beam lenses; the 50-degree office lens is standard.
Controls/ECO · /BTC
SwitchDIM, DALI or DSI control gear, or Bluetooth control including dimming.

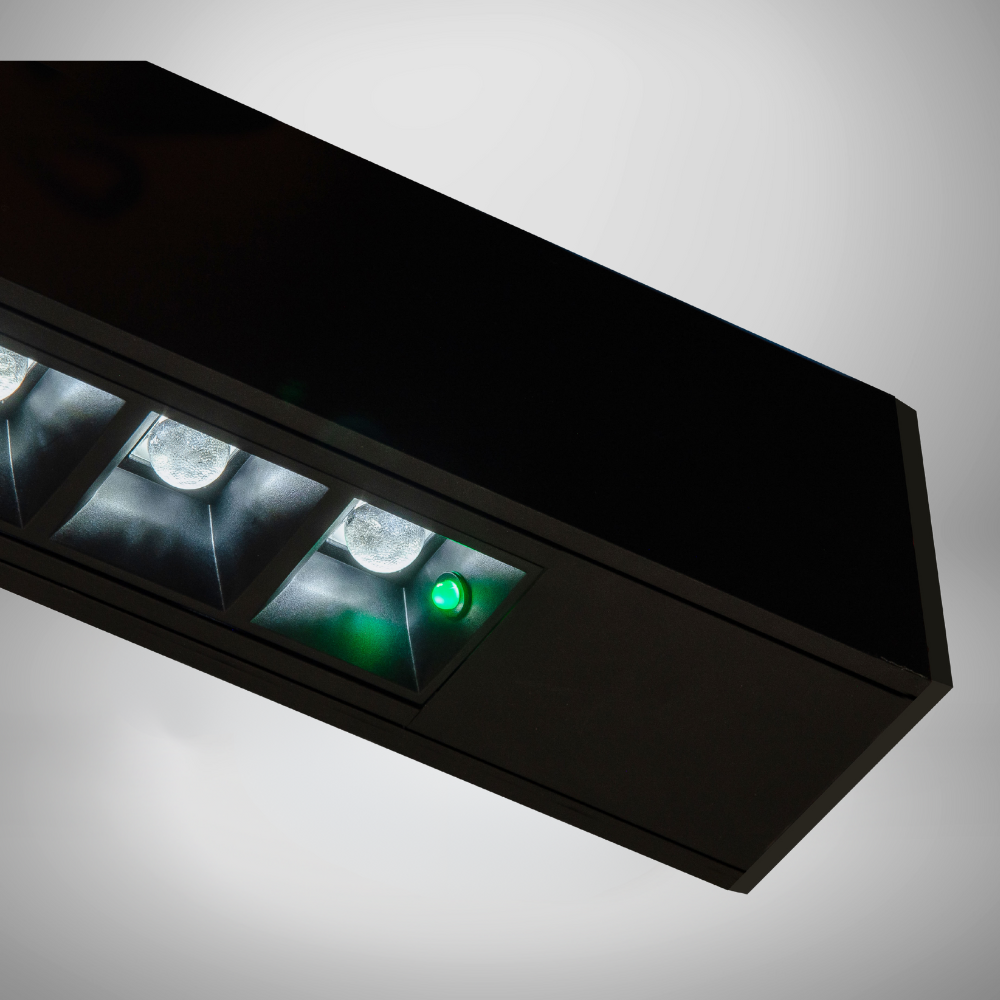

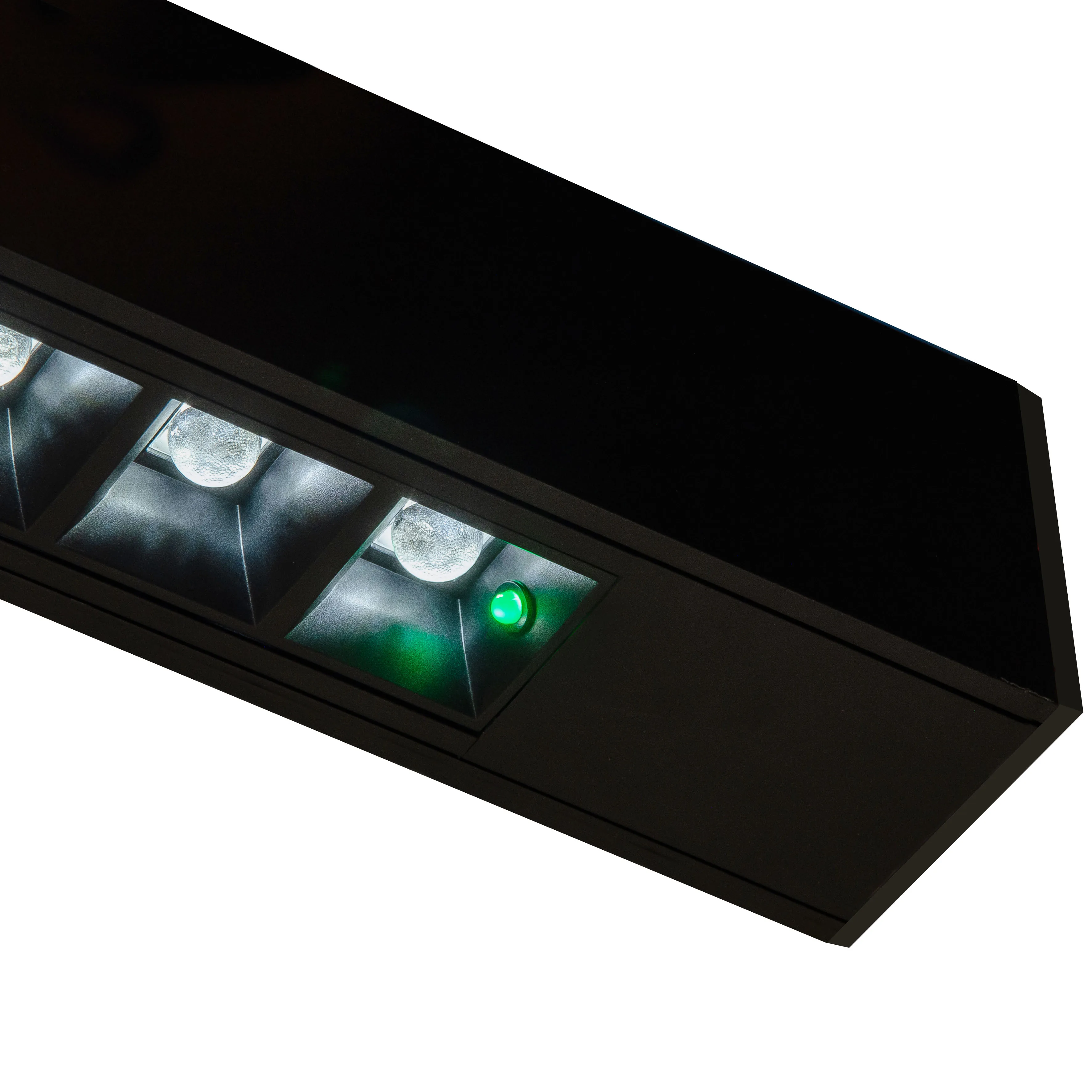

Integral emergency/EMI · /EMSI · /EMDI
Integral emergency, self-test emergency or DALI emergency; /ECO/EMDI combines DALI luminaire and emergency control.
AccessoriesLUMA.ACC.01–04

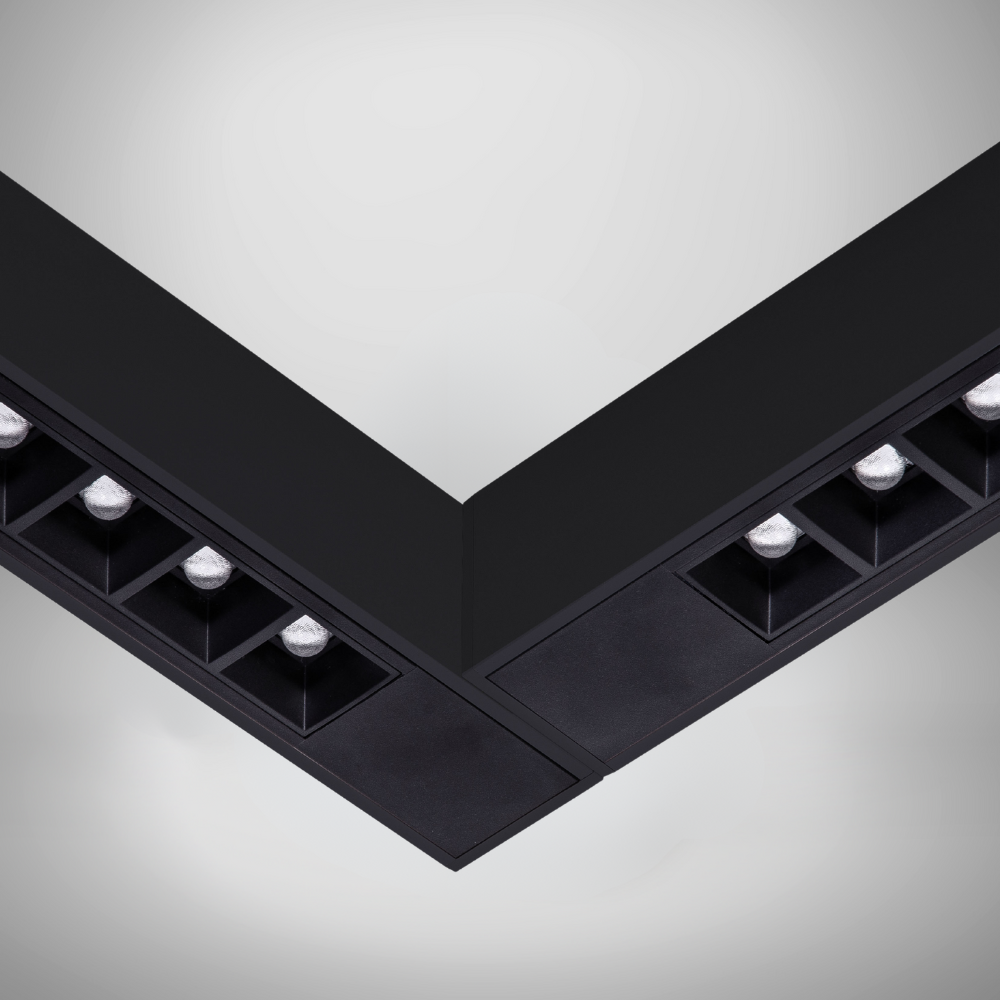

90-degree butt-up kit, 180-degree butt-up kit, suspension kit and baffle removal tool.
Made-to-order variantsCustom configuration

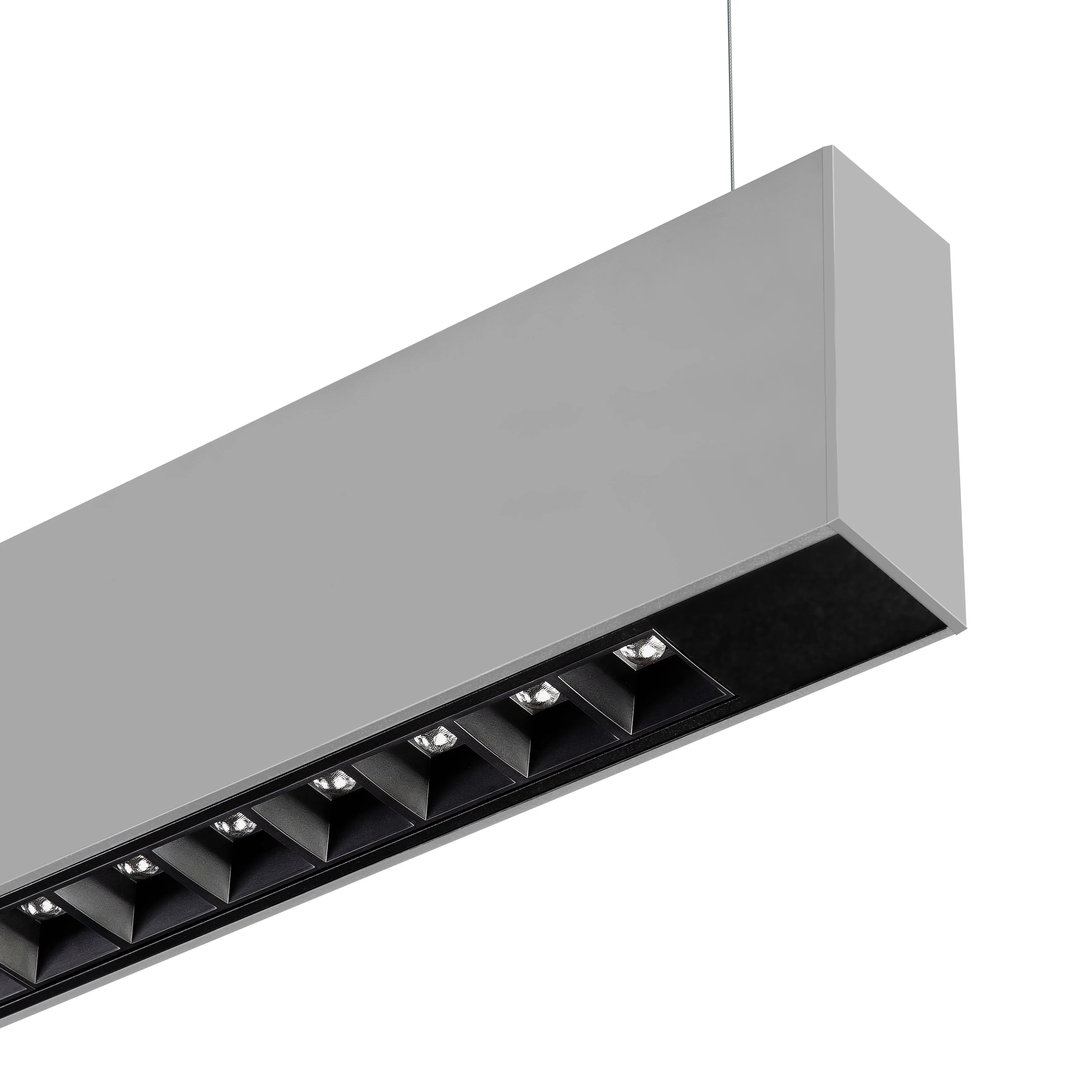

Direct/indirect output, alternative baffle finishes, tunable white, sensors and additional lens distributions are available on request.

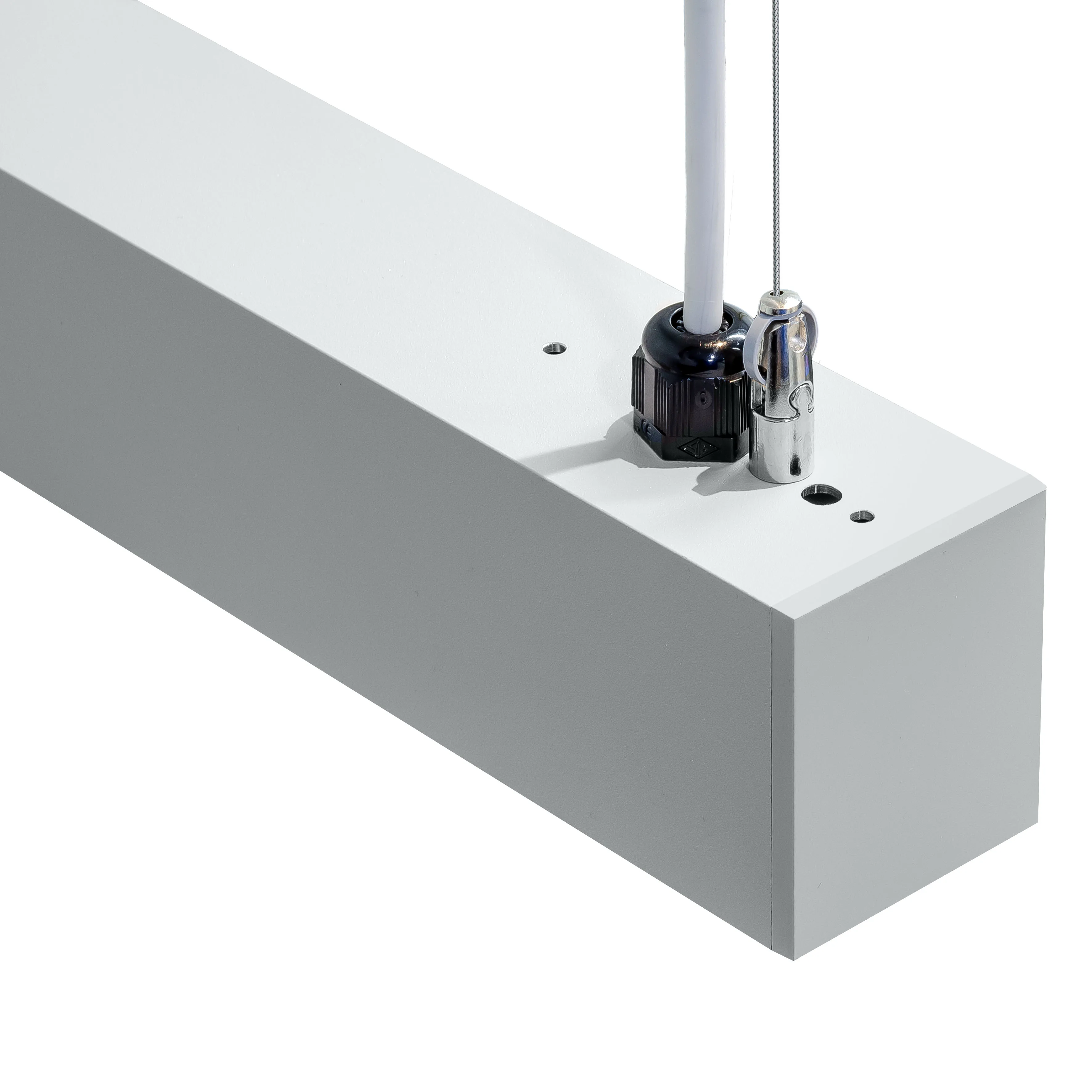

Accessory codes: LUMA.ACC.01 90-degree butt-up kit; LUMA.ACC.02 180-degree butt-up kit; LUMA.ACC.03 suspension kit; LUMA.ACC.04 baffle removal tool.
Why Luma
Why specify Luma low-glare linear lighting?
Luma combines a slim linear profile with dark-light optical control for desk, meeting and screen-based work areas. Twelve model configurations cover two lengths, two colour temperatures and three output levels.
Surface and suspended mounting, standard and wide-beam lenses, dimming controls and integral emergency choices allow one family to serve a coordinated commercial lighting scheme.
Controlled workplace light from a compact linear body
The standard 50-degree office lens and matt black baffles control the visible light source, while UGR values of 12 to 14 and efficacy up to 143 lm/W support efficient workplace specifications.
UGR 12–14
Low, standard and high-output models retain controlled glare performance.
50-degree office lens
The standard lens is paired with matt black dark-light baffles.
Up to 143 lm/W
Model efficacy ranges from 132 to 143 lm/W in the current schedule.
UK-made Tridonic system
Tridonic LED and driver components are housed in the 62 × 72 mm body.
Output1,850–4,675 lm12 verified models
Lengths1.2 m / 1.5 mSurface or suspended
Optics50° / 80°Standard and wide beam
Typical applicationsCommercial interiors for Luma
Office workstations
Controlled linear illumination above desks and task areas.
Meeting spaces
Low-glare lighting above meeting tables and collaborative areas.
Screen-based work areas
Dark-light baffles reduce direct brightness around displays.
Architectural commercial interiors
A clean linear profile for coordinated surface or suspended layouts.
Compare Luma with the wider suspended lighting range when reviewing mounting, output, optics, controls and emergency requirements.

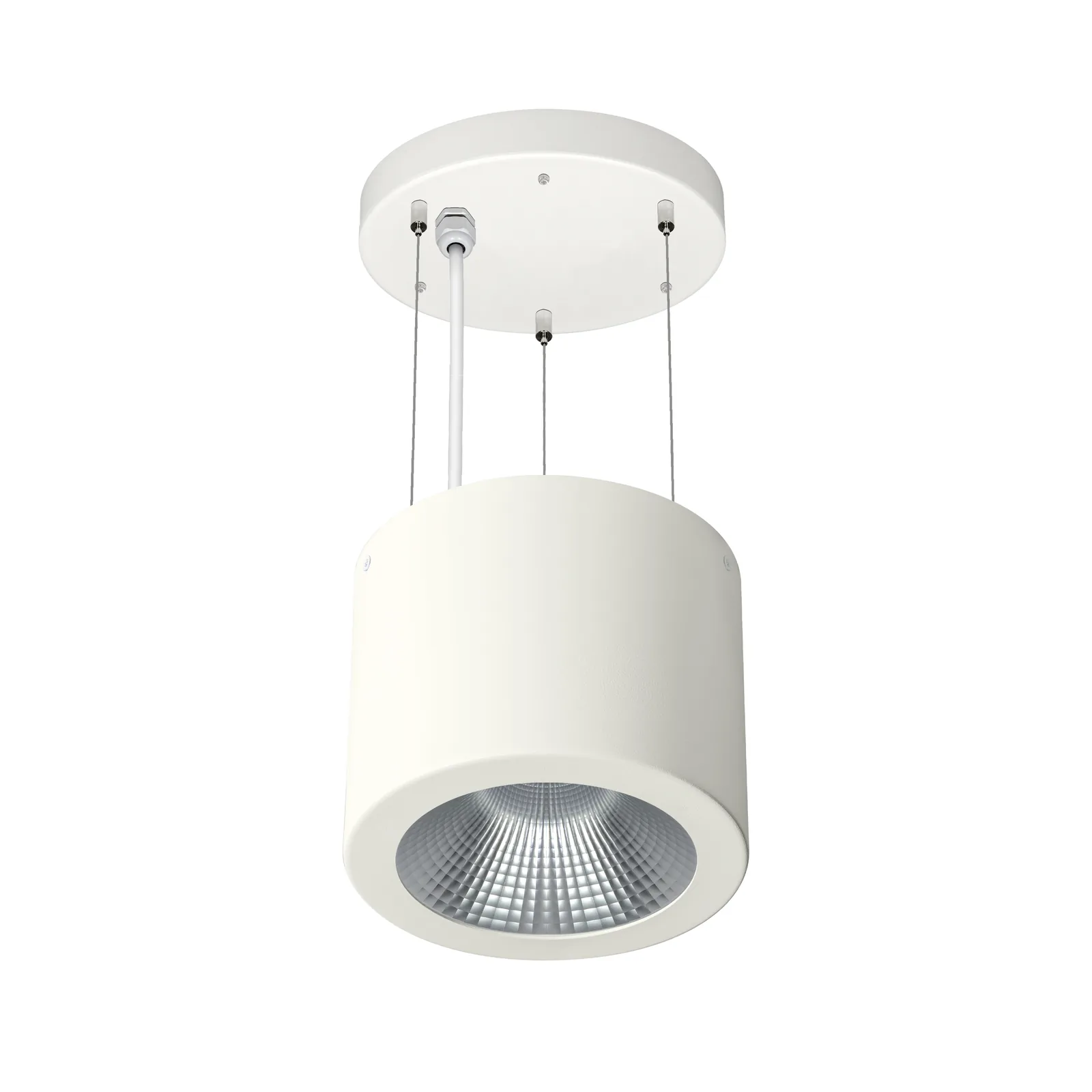

Low-glare suspended LED spotlight
Suspend-Pro
A suspended professional LED downlight with a low-glare faceted reflector and outputs up to 3,125 lm.
Compare product →
Suspended linear LED luminaire
Brilliance
A surface or suspended linear luminaire with four standard lengths, Tridonic components and low or high-output variants.
Compare product →
Suspended mini LED downlight
Lumen Suspended
A compact suspended LED downlight with Tridonic components and standard, narrow and wide reflector choices.
Compare product →Specification questions
Luma details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
12 configurations are listed: LUMA.001/LO, LUMA.001, LUMA.001/HO, LUMA.002/LO, LUMA.002, LUMA.002/HO, LUMA.003/LO, LUMA.003, LUMA.003/HO, LUMA.004/LO, LUMA.004, LUMA.004/HO.
Luma models cover 1,850–4,675 lm. Colour-temperature choices are 3000K / 4000K.
Control options include DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Maintained emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The configurator shows the product dimensional drawing. The product datasheet contains further construction and installation information.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Luma datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
Product quotation
Request a quotation for Luma.
Send the selected code, quantity and any mounting, control, emergency or finish requirements. Your configurator choices are carried into the form automatically.
Configuration retainedThe product code and quantity update as you configure the fitting.
Useful project detailAdd the application, required date and any option requirements you already know.
Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.
Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
