Length595 mm
LOW GLARE LG7-certified recessed 600x600 LED panel
LucidLG7-certified recessed 600x600 LED panel
Uniform light.
UGR<19 glare control.
Lucid is a LG7-certified recessed 600x600 LED panel with Tridonic technology, UGR<19 performance, LG7-certified glare control and output up to 3900 lm on LUCID.004 for offices, schools and healthcare environments.
Four models cover 2,700-3,900 lm in 3000K or 4000K, with control, emergency, diffuser and mounting options listed below.
- Output
- 2,700–3,900 lm 4 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 9 listed controls and accessories
01 / 07
Output2,700–3,900 lm
Colour temperature3000K / 4000K
ControlsNon-dimmable standard; /ECO SwitchDIM, DALI or DSI; /BTC Casambi
Configuration9 listed options
Product configurator
Configure your Lucid
Choose the Lucid model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
LG7-certified recessed 600x600 LED panelLucid is a 600 x 600 mm recessed LED panel with Tridonic technology, UGR<19 performance, LG7-certified glare control and output up to 3900 lm on LUCID.004 for offices, schools and healthcare environments
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Lucid LG7-certified recessed 600x600 LED panel quick specification.
Check the installation, output, colour temperature and control information for this LG7-certified recessed 600x600 LED panel before reviewing the full model schedule.
Output2,700–3,900 lm
System power26.5 W / 26.0 W / 36.5 W / 34.5 W
CCT3000K / 4000K
ControlsNon-dimmable standard; /ECO SwitchDIM, DALI or DSI; /BTC Casambi
EmergencyThree-hour emergency, 3-hour emergency /EM; DALI 3-hour emergency /EMD
Product files
Download Lucid technical files.
Available files for this exact product are listed below.
Diffuser comparisonIntensity — cd/klm
Technical description
LG7 compliant recessed 600x600 LED panel specification for Lucid.
Lucid is an LG7 compliant recessed 600x600 LED panel for 600 x 600 commercial ceiling grids. Tridonic LED technology, UGR<19 low-glare performance and a self-extinguishing TP(a) diffuser option support office, education and healthcare lighting.
Lucid construction and mounting
Four recessed LED panel outputs cover 2,700-3,900 lm in 3000K or 4000K, with surface, plasterboard and suspended mounting kits available alongside the recessed ceiling installation.
Output, optics and colour temperature
Lucid output is 2,700–3,900 lm.
System power options are 26.5 W / 26.0 W / 36.5 W / 34.5 W.
Colour temperature options are 3000K / 4000K.
Controls, emergency and project options
Control options include DALI / SwitchDIM / DSI, Casambi wireless.
Emergency options include 3-hour emergency, DALI 3-hour emergency.
Datasheets and technical files
Published files include the Lucid datasheet and installation guide.
Output2,700–3,900 lm
System power26.5 W / 26.0 W / 36.5 W / 34.5 W
Colour temperature3000K / 4000K
FinishNeeds confirmation
ControlsNon-dimmable standard; /ECO SwitchDIM, DALI or DSI; /BTC Casambi
EmergencyThree-hour emergency, 3-hour emergency /EM; DALI 3-hour emergency /EMD
See the Lumenloop LED panel lighting range for related mounting, output and optic options.
Product typeLG7-certified recessed 600x600 LED panel
Model codesLUCID.001, LUCID.002, LUCID.003, LUCID.004
Output2,700–3,900 lm
System power26.5 W / 26.0 W / 36.5 W / 34.5 W
Colour temperature3000K / 4000K
FinishNeeds confirmation
ControlsNon-dimmable standard; /ECO SwitchDIM, DALI or DSI; /BTC Casambi
EmergencyThree-hour emergency, 3-hour emergency /EM; DALI 3-hour emergency /EMD
Models, options and accessories
Lucid model codes and specification options.
Choose the Lucid base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes4 listed configurations
4 model configurations are shown with their output, CCT, power and finish information where available.
2,700 lm26.5 W
3,100 lm26.0 W
3,600 lm36.5 W
3,900 lm34.5 W
Additional Lucid options and accessoriesProduct images and specification choices
Controls/ECO
Specification dimming and control gear
Controls/BTC
Casambi Bluetooth wireless control
Emergency/EM
3-hour emergency conversion
Emergency/EMD
DALI 3-hour emergency conversion
Body & Mounting/TOP
Top-access body option
Diffuser/TPA
Self-extinguishing TP(a) diffuser
AccessoriesPBF.178
Plasterboard mounting kit
AccessoriesSURF.178
Surface mount frame
AccessoriesSUS.178/1.2M
1.2 m wire suspension kit
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Lucid
Why specify this LG7-certified recessed 600x600 LED panel?
Lucid is a 600 x 600 mm recessed LED panel with Tridonic technology, UGR<19 performance, LG7-certified glare control and output up to 3900 lm on LUCID.004 for offices, schools and healthcare environments
The 4-model family combines 2,700–3,900 lm, 3000K / 4000K and 9 listed configuration choices without changing the core product identity.
A familiar ceiling format with a stronger low-glare specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
UGR<19 performance
Controlled glare for offices, schools and healthcare environments.
600 x 600 format
A familiar modular size for standard ceiling systems.
Four model codes
Outputs extend from 2,700 to 3,900 lumens.
Mounting flexibility
Recessed, surface, plasterboard and suspended arrangements are listed.
Output2,700–3,900 lm4 listed models
CCT3000K / 4000KModel dependent
Options9Controls and accessories
Typical applicationsWhere Lucid is specified
Offices
Low-glare modular lighting for desks, meeting rooms and circulation.
Education
Controlled general illumination for classrooms and shared areas.
Healthcare
Uniform low-glare lighting for suitable clinical and support interiors.
Commercial refurbishment
A 600 x 600 panel with several mounting and control arrangements.
Compare Lucid with the wider led panel lighting when reviewing output, optics, mounting, controls and emergency requirements.
low-glare 600x600 LED panel
Aurora
Aurora is a low-glare 600x600 LED panel powered by Philips, designed for schools, offices and LG7-style commercial spaces requiring UGR<19 visual comfort.
Compare product →
edge-lit UGR19 600x600 LED panel
Edge-Lite
Edge-Lite is a edge-lit UGR19 600x600 LED panel with UGR<19 performance, Philips LED technology and uniform low-glare illumination for education and commercial interiors.
Compare product →
direct indirect LED panel

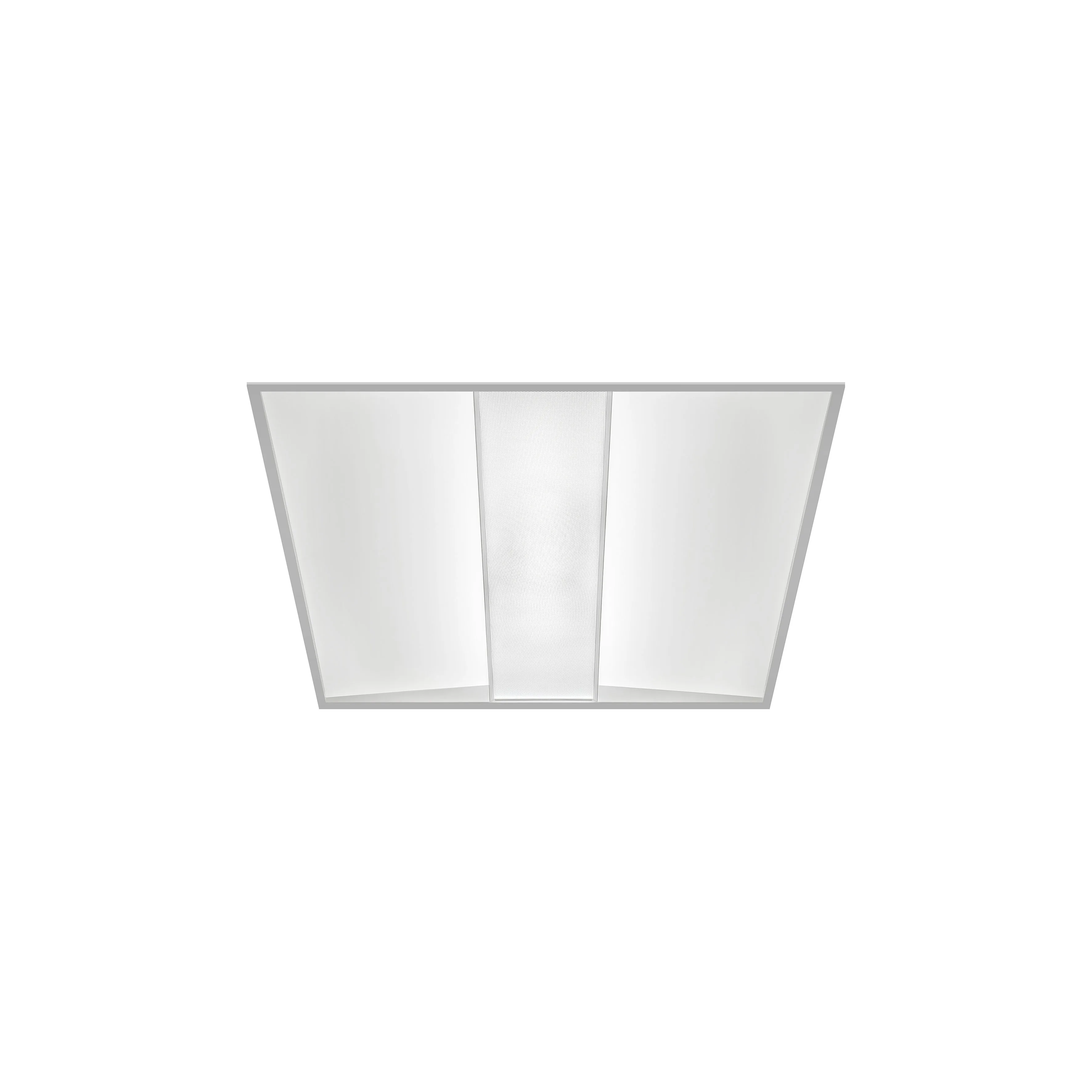

Luminate
Luminate is a direct indirect LED panel with a microprism diffuser, LG7-focused low-glare versions, Touch+DALI, Casambi and emergency options, with tunable white available as a custom configuration.
Compare product →Specification questions
Lucid details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
4 configurations are listed: LUCID.001, LUCID.002, LUCID.003, LUCID.004.
The product family covers 2,700–3,900 lm. Colour-temperature choices are 3000K / 4000K.
Control options include Non-dimmable standard; /ECO SwitchDIM, DALI or DSI; /BTC Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, 3-hour emergency /EM; DALI 3-hour emergency /EMD. Select the emergency requirement separately from the base model and normal control method.
The configurator shows the product dimensional drawing. The product datasheet contains further construction and installation information.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Lucid datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
