Output675–4,250 lm

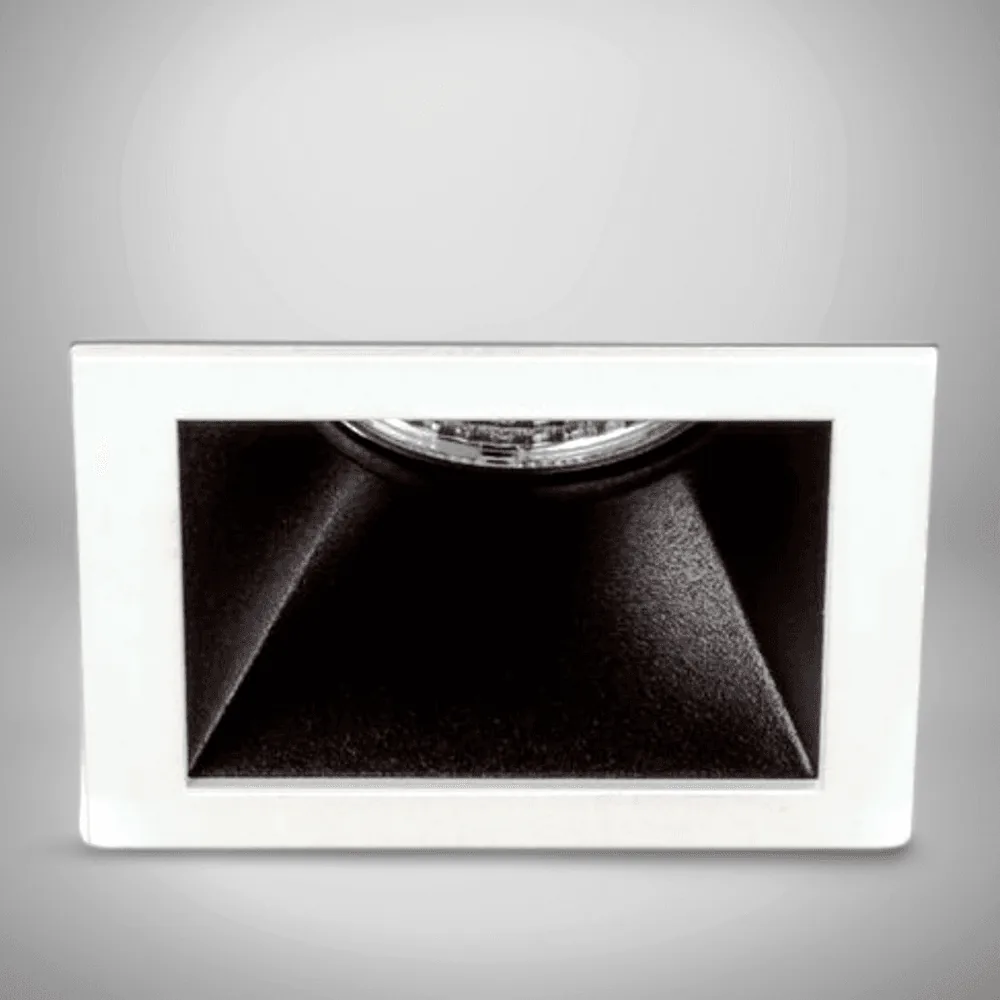

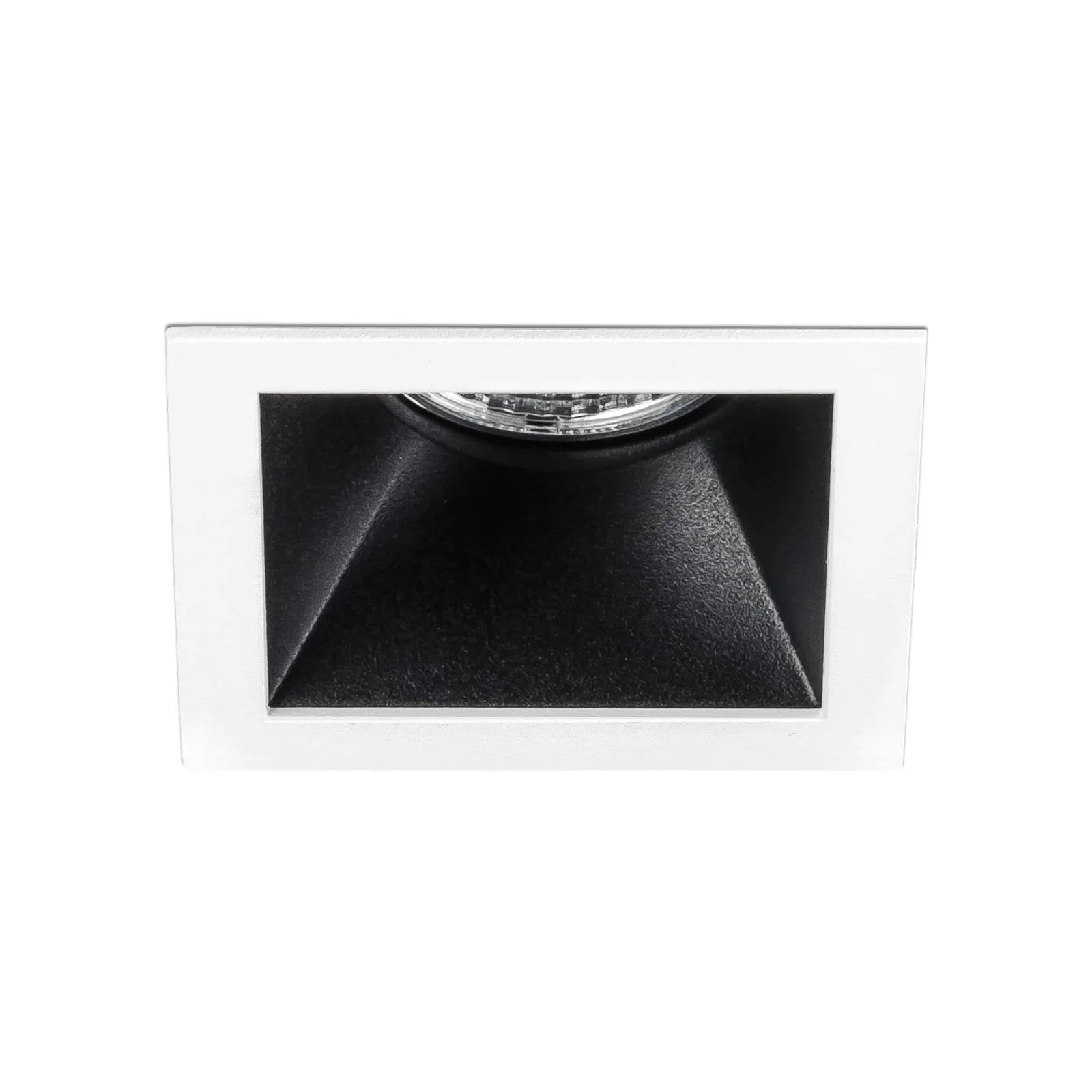

MULTI-HEAD IP44 architectural LED downlight
GuardIP44 architectural LED downlight
Multiply the source.
Keep the ceiling ordered.
Guard is an IP44 architectural LED downlight for considered commercial lighting schemes. Its source-backed range includes Single, twin and triple configurations and Die-cast aluminium construction.
- Output
- 675–4,250 lm
- Colour temperature
- 2700K / 3000K / 4000K model dependent
- Options
- 12 listed controls and accessories
01 / 08
OutputSee model schedule
Colour temperature2700K / 3000K / 4000K
ControlsMains dimming, SwitchDIM, DSI, DALI, Casambi
Single-head ceiling cut-out81 × 81 / 145 × 81 / 213 × 81 mm
Product configurator
Configure your Guard
Choose the Guard model first, then add only the control, optic, emergency, finish or mounting options required for the project.
Plaster-in and black finish options are available only on single fittings. Guard is available with one, two or three heads. Output and power are totals per fitting. Cut-out and bezel dimensions depend on the selected model.
LuminaireProduct family
IP44 architectural LED downlightGuard Architectural LED Downlight: indoor downlight with single, twin and triple configurations. Die-cast aluminium construction, IP44 protection, up to 900 lumens output
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Guard IP44 architectural LED downlight quick specification.
Check the installation, output, colour temperature and control information for this IP44 architectural LED downlight before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationCatalogue page 32
- 01Single-head ceiling cut-out
- 81 × 81 / 145 × 81 / 213 × 81 mm
- 02Single-head bezel
- 85 × 85 / 154 × 85 / 222 × 85 mm
- 03Output
- 675–4,250 lm
- 04System power
- 6.5–41.5 W
- 05CCT
- 2700K / 3000K / 4000K
- 06Controls
- Mains dimming, SwitchDIM, DSI, DALI, Casambi
Product files
Download Guard technical files.
Available files for this exact product are listed below.
C0 plane distributionIntensity · cd/klm
Technical description
IP44 architectural LED downlight specification for Guard.
Published output and system power are listed by model in the specification schedule.
Guard construction and mounting
For multi-head downlight specifications, compare the model codes, outputs and available options below.
Performance and installation details include life >55,000 hours (L90 / F10). This section covers output, optics, mounting and controls.
Finish is White (RAL 9003) / Black (RAL 9005).
Output, optics and colour temperature
Published output and system power are listed by model in the specification schedule.
Published output and system power are listed by model in the specification schedule.
Colour temperature options are 2700K / 3000K / 4000K.
Controls, emergency and project options
Control options include DALI / SwitchDIM / DSI, Casambi wireless.
Emergency options use remote indicators, with DALI / self-test and integral-indicator variants.
System power6.5–41.5 W
Colour temperature2700K / 3000K / 4000K
FinishWhite (RAL 9003) / Black (RAL 9005)
ControlsDALI, SwitchDIM, DSI, Casambi
EmergencyEmergency remote indicator variants
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeIP44 architectural LED downlight
Model codesGUARD.001, GUARD.002, GUARD.003, GUARD.004, GUARD.005, GUARD.006, GUARD.007, GUARD.008, GUARD.009, GUARD.201, GUARD.202, GUARD.203, GUARD.204, GUARD.205, GUARD.206, GUARD.207, GUARD.208, GUARD.209, GUARD.301, GUARD.302, GUARD.303, GUARD.304, GUARD.305, GUARD.306, GUARD.307, GUARD.308, GUARD.309
Output675–4,250 lm
System power6.5–41.5 W
Colour temperature3000K / 4000K
FinishWhite (RAL 9003) / Black (RAL 9005)
ControlsDALI, SwitchDIM, DSI, Casambi
EmergencyEmergency remote indicator variants
Models, options and accessories
Guard model codes and specification options.
Choose the Guard base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes27 listed configurations
Output, colour temperature and power are shown for each model.
Single head; 675 lm / 2700K / 8 W total; cut-out 81 × 81 mm; bezel 85 × 85 mm
Single head; 700 lm / 3000K / 6.5 W total; cut-out 81 × 81 mm; bezel 85 × 85 mm
Single head; 750 lm / 4000K / 6.5 W total; cut-out 81 × 81 mm; bezel 85 × 85 mm
Single head; 900 lm / 2700K / 10 W total; cut-out 81 × 81 mm; bezel 85 × 85 mm
Single head; 925 lm / 3000K / 8.5 W total; cut-out 81 × 81 mm; bezel 85 × 85 mm
Single head; 975 lm / 4000K / 8.5 W total; cut-out 81 × 81 mm; bezel 85 × 85 mm
Single head; 1,225 lm / 2700K / 14 W total; cut-out 81 × 81 mm; bezel 85 × 85 mm
Single head; 1,350 lm / 3000K / 12 W total; cut-out 81 × 81 mm; bezel 85 × 85 mm
Single head; 1,425 lm / 4000K / 12 W total; cut-out 81 × 81 mm; bezel 85 × 85 mm
Twin head; 1,325 lm / 2700K / 15.5 W total; cut-out 145 × 77 mm; bezel 154 × 85 mm
Twin head; 1,400 lm / 3000K / 13 W total; cut-out 145 × 77 mm; bezel 154 × 85 mm
Twin head; 1,475 lm / 4000K / 13 W total; cut-out 145 × 77 mm; bezel 154 × 85 mm
Twin head; 1,800 lm / 2700K / 20 W total; cut-out 145 × 77 mm; bezel 154 × 85 mm
Twin head; 1,850 lm / 3000K / 16.5 W total; cut-out 145 × 77 mm; bezel 154 × 85 mm
Twin head; 1,950 lm / 4000K / 16.5 W total; cut-out 145 × 77 mm; bezel 154 × 85 mm
Twin head; 2,450 lm / 2700K / 27.5 W total; cut-out 145 × 77 mm; bezel 154 × 85 mm
Twin head; 2,675 lm / 3000K / 24 W total; cut-out 145 × 77 mm; bezel 154 × 85 mm
Twin head; 2,850 lm / 4000K / 24 W total; cut-out 145 × 77 mm; bezel 154 × 85 mm
Triple head; 1,975 lm / 2700K / 23.5 W total; cut-out 213 × 77 mm; bezel 222 × 85 mm
Triple head; 2,100 lm / 3000K / 19 W total; cut-out 213 × 77 mm; bezel 222 × 85 mm
Triple head; 2,225 lm / 4000K / 19 W total; cut-out 213 × 77 mm; bezel 222 × 85 mm
Triple head; 2,700 lm / 2700K / 30.5 W total; cut-out 213 × 77 mm; bezel 222 × 85 mm
Triple head; 2,750 lm / 3000K / 25 W total; cut-out 213 × 77 mm; bezel 222 × 85 mm
Triple head; 2,925 lm / 4000K / 25 W total; cut-out 213 × 77 mm; bezel 222 × 85 mm
Triple head; 3,675 lm / 2700K / 41.5 W total; cut-out 213 × 77 mm; bezel 222 × 85 mm
Triple head; 4,025 lm / 3000K / 35.5 W total; cut-out 213 × 77 mm; bezel 222 × 85 mm
Triple head; 4,250 lm / 4000K / 35.5 W total; cut-out 213 × 77 mm; bezel 222 × 85 mm
Additional Guard options and accessoriesProduct images and specification choices
Performance/9
High colour rendering Ra90 LEDs

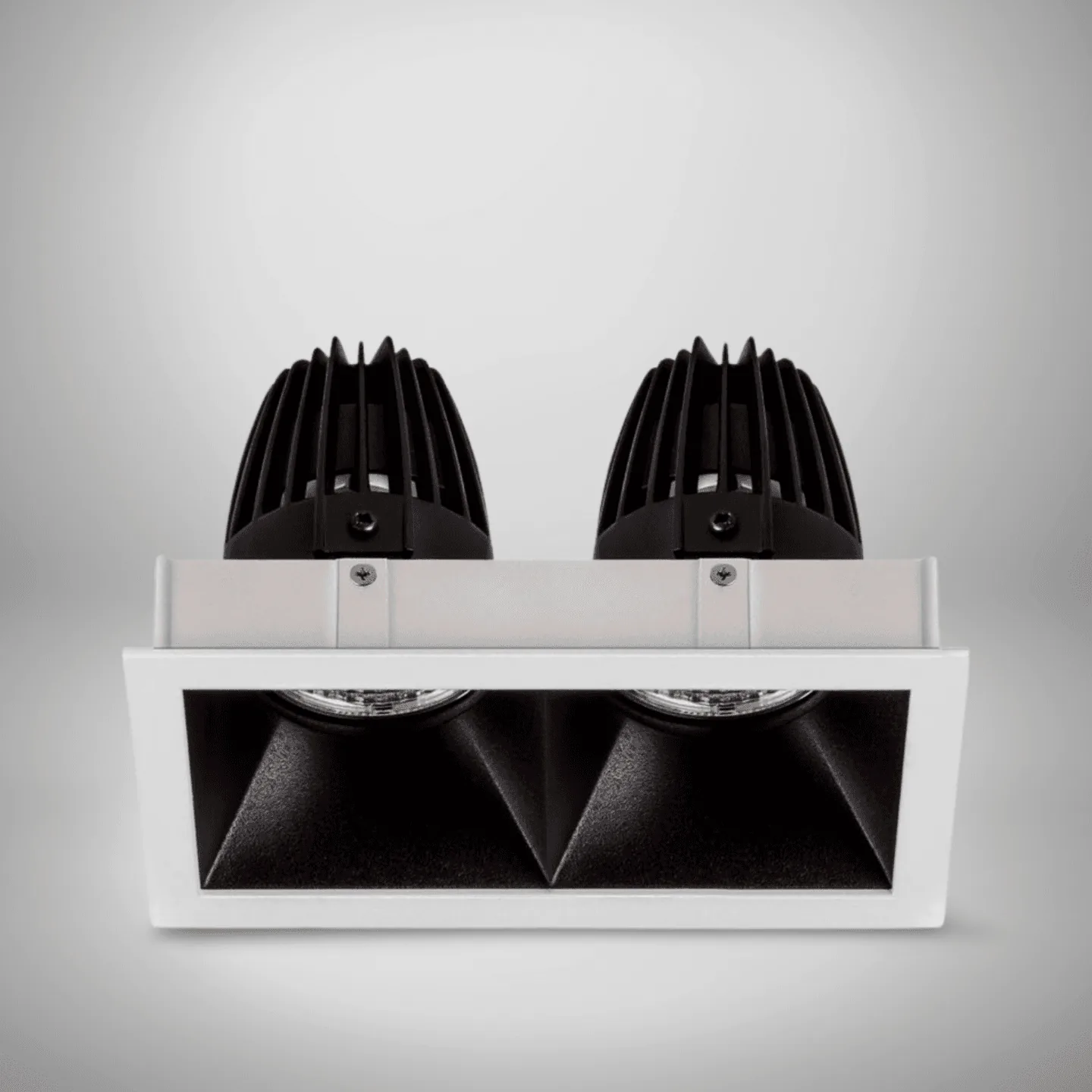

Body & Mounting/PI
Plaster-in bezel version
Finish/BK
Black bezel RAL 9005 (single only)
Finish/WSB
White softlight baffle RAL 9003
Controls/ECO
SwitchDIM, DALI or DSI
Controls/MDIM
Mains dimming
Controls/BTC
Bluetooth / Casambi wireless control (inc dim)
Emergency/EM
EM conversion
Emergency/EMI
EM conversion with integral indicator
Emergency/EMD
Self test and DALI EM conversion
Emergency/EMDI
DALI/self test EM conversion with integral indicator
Beam & Optics/NB
20° narrow beam reflector
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Guard
Why specify this IP44 architectural LED downlight?
Published output and system power are listed by model in the specification schedule.
Guard IP44 architectural LED downlight. Output: 675–4,250 lm; system power: 6.5–41.5 W. Colour temperature: 2700K / 3000K / 4000K.
One architectural language across single, twin and triple fittings
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Three body formats
Coordinate single, twin and triple fittings within the same interior.
IP44 protection
A protected optical arrangement for suitable interior applications.
Narrow beam option
Add a more concentrated distribution where the project requires it.
Controls and emergency
DALI, Casambi and four emergency arrangements remain explicit.
Output675–4,250 lm27 listed models
CCT2700K / 3000K / 4000KModel dependent
Options12Controls and accessories
Typical applicationsWhere Guard is specified
Retail
Single and multi-head accent lighting for customer and display areas.
Hospitality
Coordinated recessed lighting for reception, lounge and circulation.
Commercial interiors
A consistent ceiling language across different output requirements.
Residential developments
Architectural recessed lighting for shared and high-specification interiors.
Compare Guard with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
mini LED downlight
Axis
Mini LED downlight. Review the model schedule and compatible options.
Compare product →
low-glare LED downlight
Beam
Low-glare LED downlight. Review the model schedule and compatible options.
Compare product →
compact surface mounted LED downlight
Crown
Compact surface mounted LED downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Guard details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
27 configurations are listed: GUARD.001, GUARD.002, GUARD.003, GUARD.004, GUARD.005, GUARD.006, GUARD.007, GUARD.008, GUARD.009, GUARD.201, GUARD.202, GUARD.203, GUARD.204, GUARD.205, GUARD.206, GUARD.207, GUARD.208, GUARD.209, GUARD.301, GUARD.302, GUARD.303, GUARD.304, GUARD.305, GUARD.306, GUARD.307, GUARD.308, GUARD.309.
Models cover 675–4,250 lm and 6.5–41.5 W. See the model schedule for individual output, power and CCT.
Control options include DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options use remote indicators, with DALI / self-test and integral-indicator variants. Select the emergency requirement separately from the base model and normal control method.
Guard cut-outs depend on head count: 81 × 81 mm for single-head models, 145 × 77 mm for twin-head models and 213 × 77 mm for triple-head models. Check the dimensional drawing for the selected model.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Guard datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
