ADJUSTABLE adjustable scoop LED downlight

Glanceadjustable scoop LED downlight

Open the scoop.
Direct the focus.

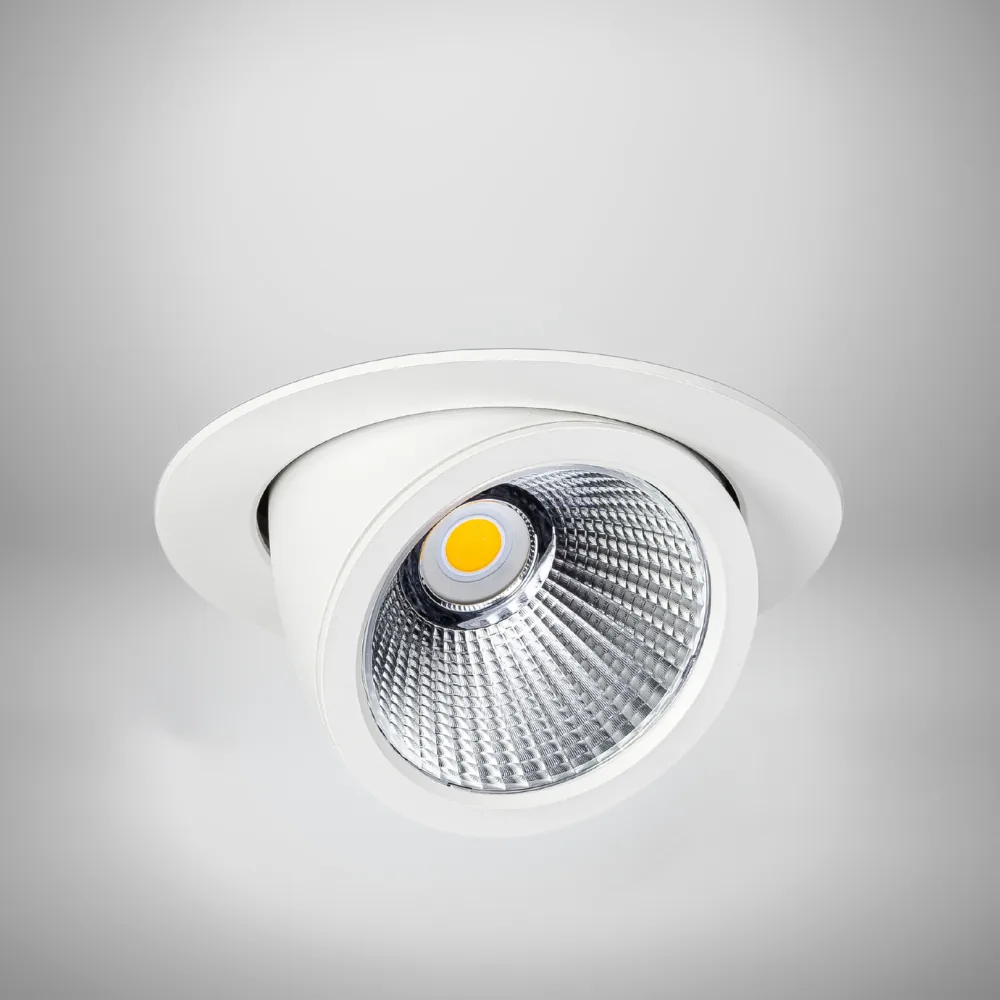

Glance is an adjustable scoop LED downlight for directional accent lighting in retail, gallery and hospitality interiors. Philips LED technology, Ra90 colour accuracy and outputs from 975 to 2,625 lumens support precise illumination of displays, walls and focal areas.

Output: 975–2,625 lm 6 model codes
Colour temperature: 3000K / 4000K model dependent
Options: 6 listed controls and accessories

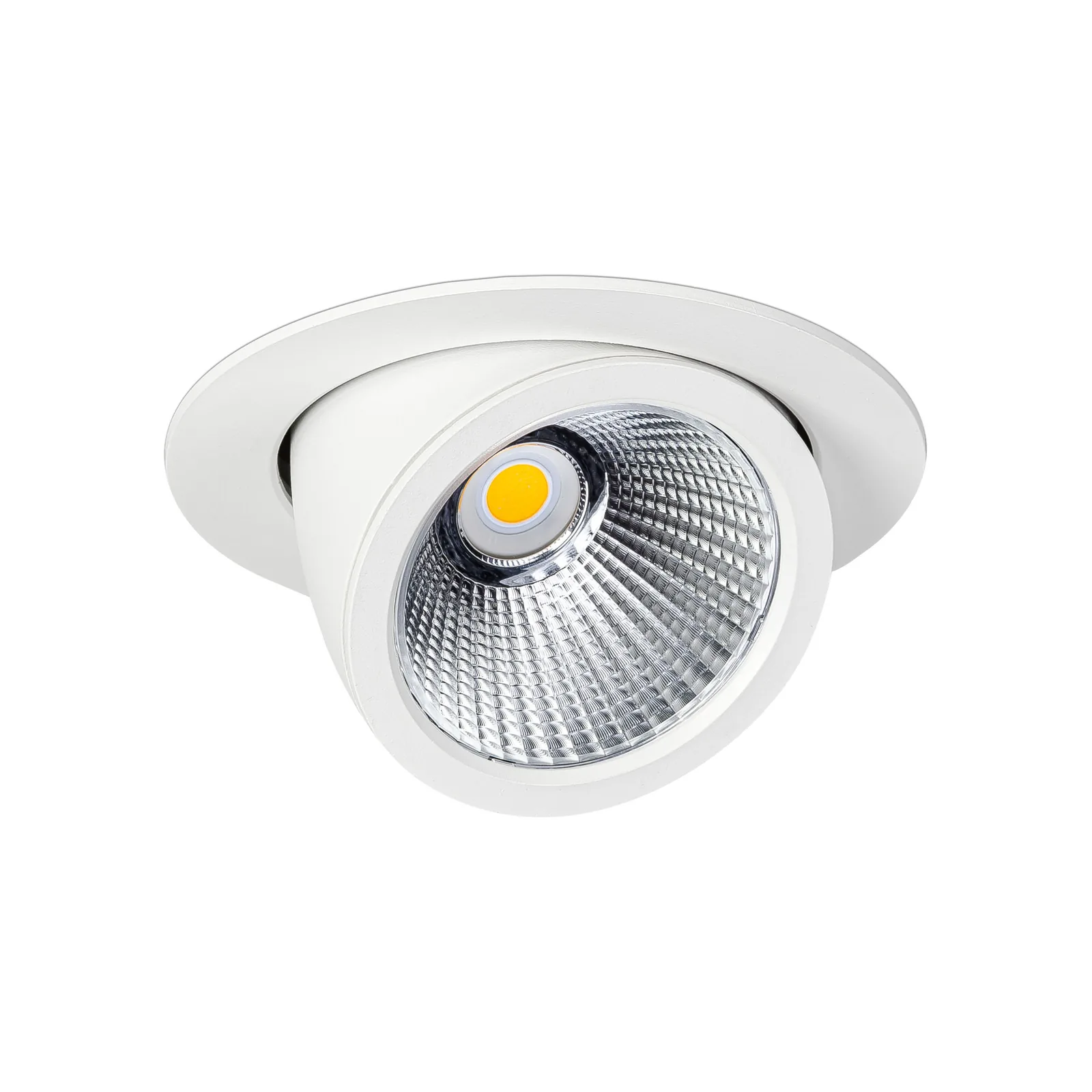

Glance fully adjustable architectural LED scoop downlight on a high-resolution white background

01 / 07

Adjustable scoopRa90Fully adjustable die-cast optical assembly

Output: 975–2,625 lm
CCT: 3000K / 4000K
Options: 6 listed

Model codesGLANCE.001975 lm · 3000K GLANCE.0021,050 lm · 4000K

Output975–2,625 lm

Colour temperature3000K / 4000K

ControlsDALI, Casambi

Ceiling cut-out140 mm

Product configurator

Configure your Glance

Choose the Glance model first, then add only the control, optic, emergency, finish or mounting options required for the project.

LuminaireProduct family

adjustable scoop LED downlightGlance is a fully adjustable die-cast LED scoop with Philips LED technology, ECA/Part L compliance, Ra90 colour accuracy and output up to 2625 lm for retail, gallery and hospitality interiors.

Output and CCT6 listed model choices

Beam & OpticsAvailable beam & optics

ControlsDALI, Casambi

EmergencyThree-hour emergency, Self-test emergency, DALI emergency

QuantityNumber of fittings

fittingsAdded to the quotation email

Technical filesProduct and design information

Datasheet Installation guide Photometric data

At a glance

Adjustable scoop LED downlight specification for Glance.

Check the installation, output, colour temperature and control information for this adjustable scoop LED downlight before reviewing the full model schedule.

Configure Glance Request pricing

Glance technical line drawing on a white background — **Glance**Product geometry and mounting reference

Key specificationSource-backed summary

01Ceiling cut-out: 140 mm
02Bezel: 150 mm
03Output: 975–2,625 lm
04System power: 10 W / 16 W / 27 W
05CCT: 3000K / 4000K
06Controls: DALI, Casambi

Product files

Download Glance technical files.

Available files for this exact product are listed below.

DatasheetPDF download Installation guidePDF download Photometric dataZIP download

Polar luminous intensity179.001 · Standard distribution

Rotational distributionIntensity · cd/klm

Technical description

Adjustable low-glare LED downlight specification for Glance.

The fully adjustable die-cast scoop directs light onto displays, walls and focal areas while retaining a clean recessed ceiling detail. Six models combine 10 W, 16 W and 27 W system powers with 3000K or 4000K colour temperatures, narrow, standard or wide reflector choices, and a rated life above 66,000 hours (L90).

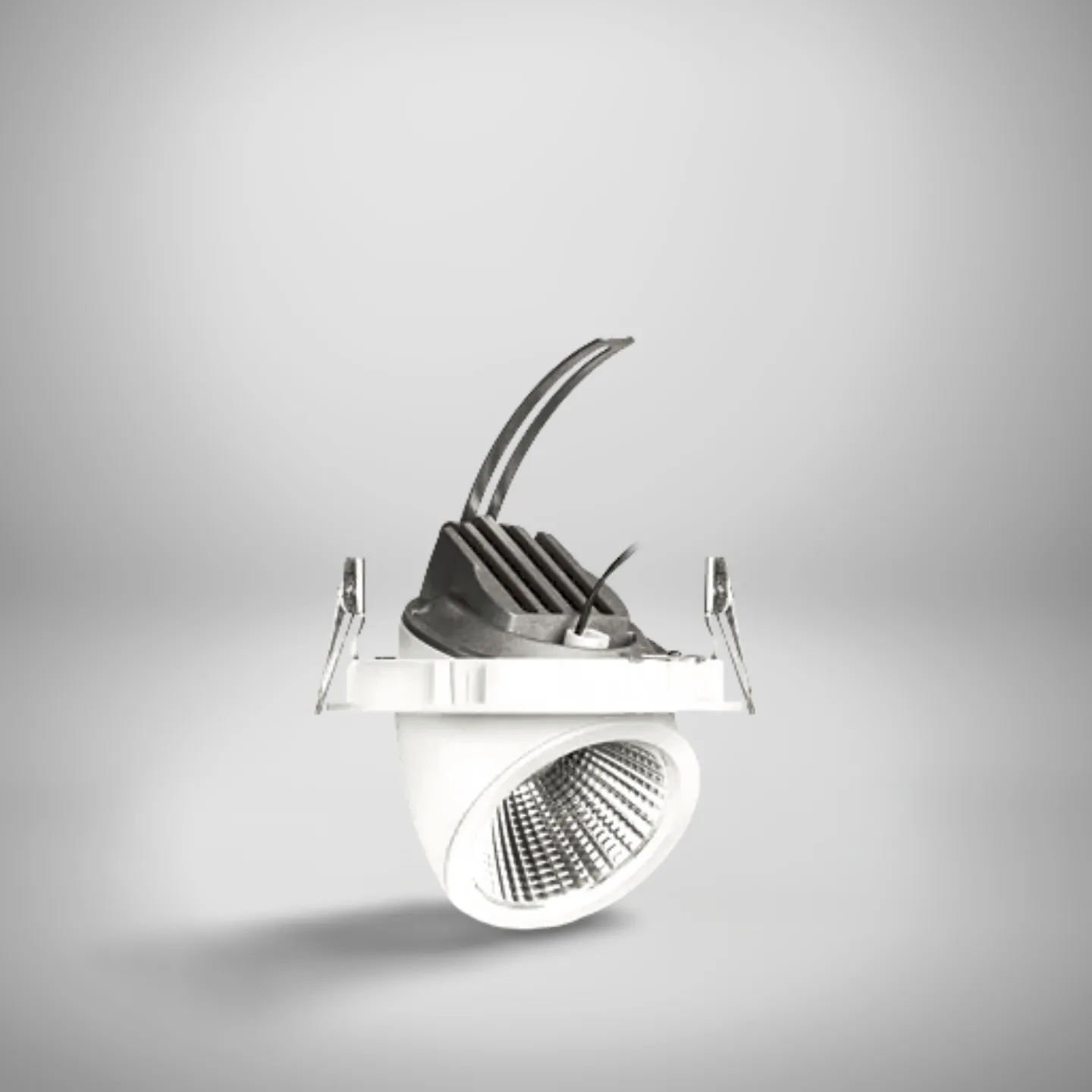

Glance construction and mounting

Glance fits a 140 mm ceiling cut-out and provides 975 to 2,625 lumen output options. Select the integral LED downlight by output, wattage, colour temperature and beam distribution to suit the required directional lighting effect.

Performance and installation details include life >66,000 hours (L90 ). This section covers output, optics, mounting and controls.

Output, optics and colour temperature

Glance output is 975–2,625 lm.

System power options are 10 W / 16 W / 27 W.

Colour temperature options are 3000K / 4000K.

Controls, emergency and project options

Control options include Tunable white + DALI, Casambi wireless.

Emergency options include 3-hour emergency, Self-test / DALI emergency.

Output975–2,625 lm

System power10 W / 16 W / 27 W

Colour temperature3000K / 4000K

FinishSee datasheet

ControlsDALI, Casambi

EmergencyThree-hour emergency, Self-test emergency, DALI emergency

Download Glance datasheet Configure Glance

See the Lumenloop commercial downlights range for related mounting, output and optic options.

Product typeadjustable scoop LED downlight

Model codesGLANCE.001, GLANCE.002, GLANCE.003, GLANCE.004, GLANCE.005, GLANCE.006

Output975–2,625 lm

System power10 W / 16 W / 27 W

Colour temperature3000K / 4000K

FinishSee datasheet

ControlsDALI, Casambi

EmergencyThree-hour emergency, Self-test emergency, DALI emergency

Models, options and accessories

Glance model codes and specification options.

Choose the Glance base model, then review the available controls, emergency arrangements, optics and accessories.

Model codes6 listed configurations

6 model configurations are shown with their output, CCT, power and finish information where available.

3000KGLANCE.001

975 lm10 W

4000KGLANCE.002

1,050 lm10 W

3000KGLANCE.003

1,650 lm16 W

4000KGLANCE.004

1,775 lm16 W

3000KGLANCE.005

2,450 lm27 W

4000KGLANCE.006

2,625 lm27 W

Options and accessories

Configure the available Glance options.

Review the available controls, emergency arrangements, sensors, mounting accessories and custom configurations for the selected luminaire.

Additional Glance options and accessoriesProduct images and specification choices

Beam & Optics/NB

Narrow beam reflector

Beam & Optics/WB

Wide beam reflector

Controls/T+DALI

Touch dimming / DALI

Controls/BTC

Casambi wireless network (including dimming)

Emergency/EM

EM conversion

Emergency/EMD

DALI and self test EM conversion

Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.

Configure these options Request a quote

Why Glance

Why specify this adjustable scoop LED downlight?

Philips LED technology and Ra90 colour rendering support accurate presentation of merchandise, materials and finishes. TouchDIM, DALI and Casambi control options extend the adjustable scoop downlight across project requirements, with three-hour, self-test, DALI and maintained emergency variants available.

The 6-model family combines 975–2,625 lm, 3000K / 4000K and 6 listed configuration choices without changing the core product identity.

High-output accent lighting with every optical and control choice visible

Base model, control, emergency and accessory decisions remain visibly separate in the configurator.

This keeps the fitting code readable while retaining the breadth of the current product range.

Fully adjustable scoop

Aim the optical assembly towards displays, artwork and architectural features.

Ra90 colour quality

Accurate colour appearance for retail, gallery and hospitality interiors.

Three beam choices

Narrow, standard and wide-beam reflector arrangements are listed.

Control and emergency

Tunable-white DALI, Casambi and emergency suffixes remain separate.

Output975–2,625 lm6 listed models

CCT3000K / 4000KModel dependent

Options6Controls and accessories

Typical applicationsWhere Glance is specified

Retail displays

Adjustable high-colour-quality lighting for merchandise and feature areas.

Galleries

Directional illumination for artwork and architectural surfaces.

Hospitality

Focused accent lighting for reception, lounge and dining spaces.

Commercial interiors

A high-output adjustable fitting for feature and perimeter lighting.

Compare Glance with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.

Build your Glance Specification support

Specification questions

Glance details worth checking.

Direct answers for consultants, contractors and commercial lighting buyers.

Configure Glance Ask about Glance

Which Glance model codes are available?

6 configurations are listed: GLANCE.001, GLANCE.002, GLANCE.003, GLANCE.004, GLANCE.005, GLANCE.006.

Which outputs and colour temperatures are available?

The product family covers 975–2,625 lm. Colour-temperature choices are 3000K / 4000K.

Which control options can be specified?

Control options include DALI, Casambi. Each option requires the matching control gear and wiring arrangement.

Which emergency options are available?

Emergency options include Three-hour emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.

What ceiling cut-out does Glance require?

The Glance requires a 140 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.

How do I request a quotation?

Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.

Is the Glance datasheet available?

Yes. The Glance datasheet is linked in the hero, configurator and technical section.

What is the standard lead time for Glance?

Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
