Medium beam as standard
Recorded medium beam for controlled accent-lighting layouts.

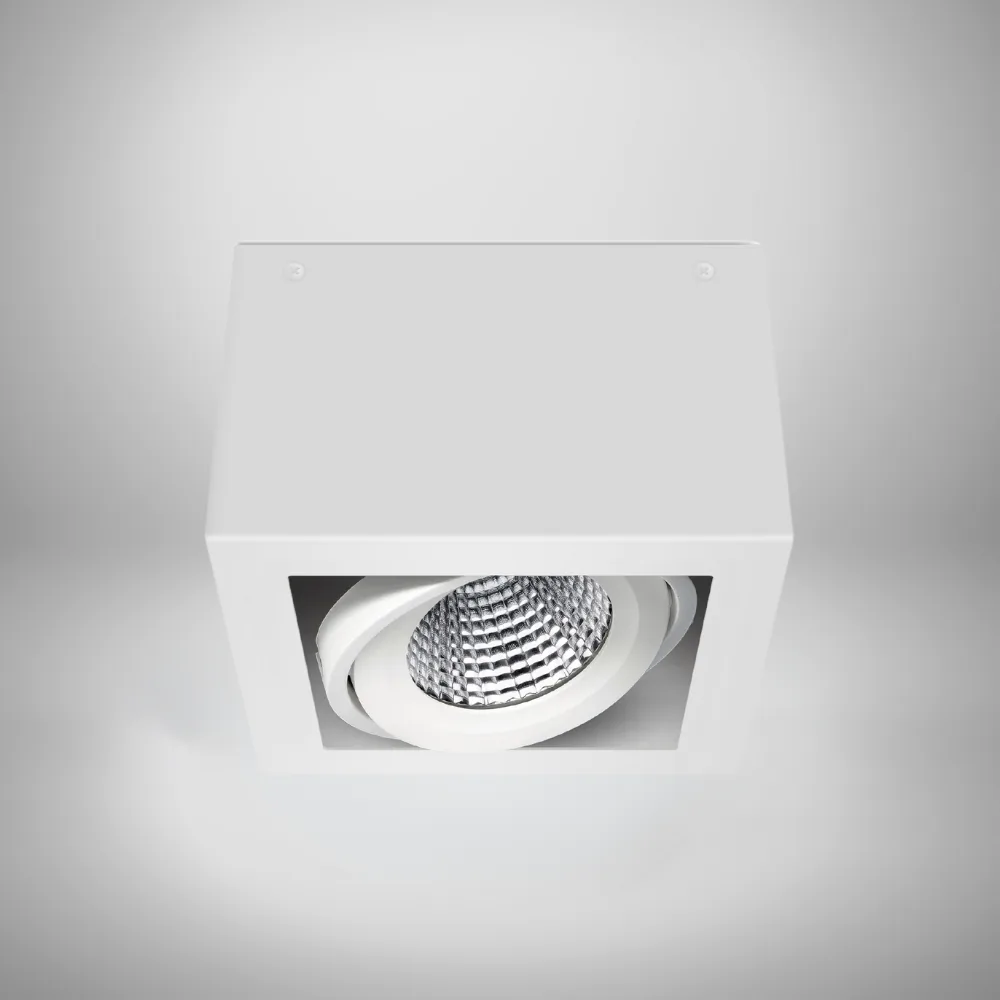

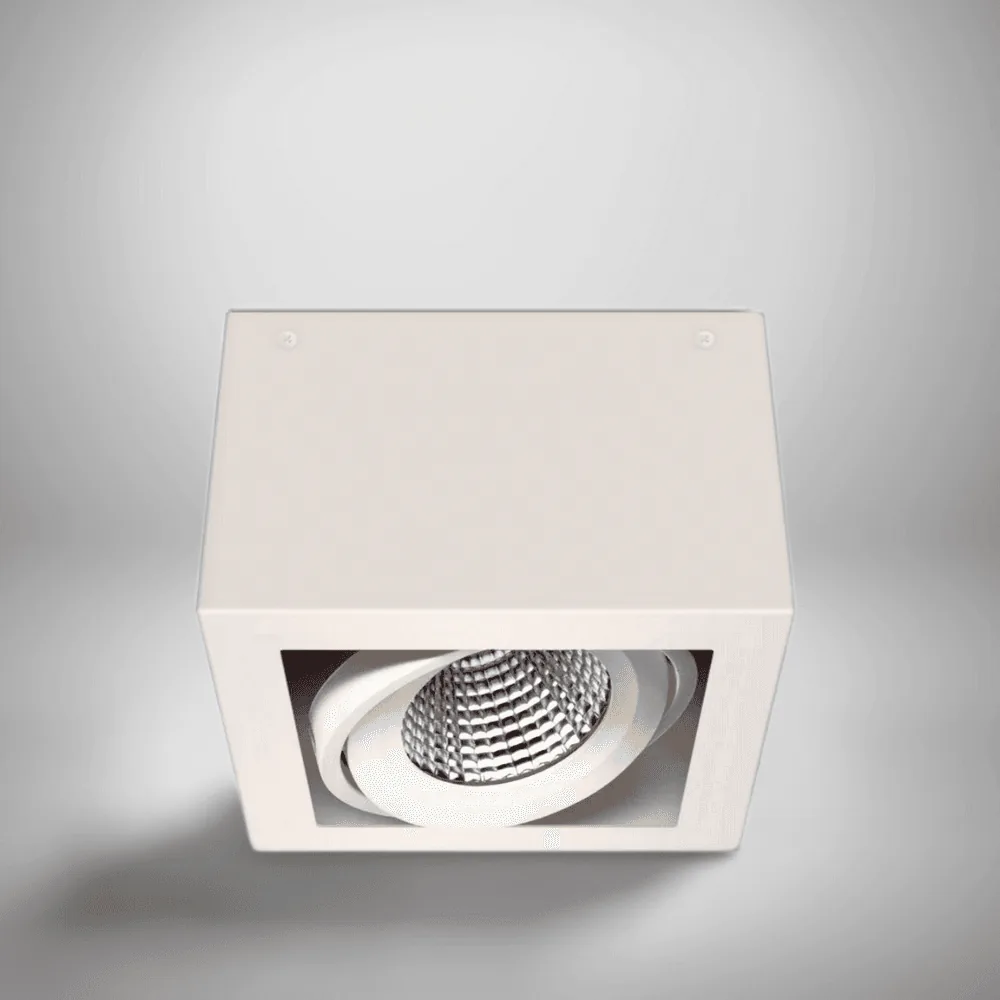

Align adjustable LED spotlight
Align is a surface-mounted adjustable LED spotlight powered by Tridonic, with outputs from 1,025 lm to 3,000 lm, 3000K and 4000K base models, medium beam as standard and narrow or wide beam options.
Efficacy up to 112.9 llm/tcW
Recorded delivered performance across the Align base models.
DALI / SwitchDIM / DSI
Recorded control options for commercial dimming and switching strategies.
161 Series twin version
Single and twin format reference for related project layouts.
Model range
ALIGN.001 /.002 /.003 /.004 /.005 /.006
HighRack
Medium beam standard, with /NB and /WB options
Outputs
1,025 lm to 3,000 lm in 3000K and 4000K
Specification resources
Datasheet, Installation Guide, Photometric Data, BIM file
Luminaire type
Adjustable LED spotlight
Life >60,000 hours
Recorded L70 / F10 life rating for maintenance planning.
Controls
DALI / SwitchDIM / DSI /ECO
Finish options
White standard, black /BK and other RAL colours on request.
Download Datasheet
Technical datasheet for specification review.
Installation Guide
Installation guide for mounting and aiming coordination.
Photometric Data
Photometric data pack for lighting calculations.
BIM File
BIM file for coordinated spotlight layouts.
Project selection
Choose the base model, then add beam, finish and control suffixes for review.
Configure For Enquiry
Configure Align for enquiry.
Select the base output and CCT, then add beam, finish, control and performance suffixes for specification support.
Configured Specification
Selected Align specification.
Selection reference
ALIGN.001
Selection reference
ALIGN.001
Technical Description
Adjustable LED spotlight specification for Align.
Align is a surface-mounted adjustable LED spotlight powered by Tridonic, with outputs from 1,025 lm to 3,000 lm, 3000K and 4000K base models, medium beam as standard and narrow or wide beam options.
Recorded page facts also include efficacy up to 112.9 llm/tcW, life over 60,000 hours at L70 / F10, DALI / SwitchDIM / DSI /ECO control options, high CRI /R9, black finish /BK, other RAL colours on request and a related 161 Series twin version.
Use the datasheet, installation guide, photometric data and BIM file when confirming output, beam, finish and control selections for the final schedule.
Specification-led adjustable LED spotlight features.
- HighRack: Medium beam as standard, with narrow and wide beam options.
- Efficacy: Up to 112.9 llm/tcW.
- Controls: DALI / SwitchDIM / DSI /ECO.
- Outputs: 1,025 lm to 3,000 lm across the Align base range.
- Finishes: White standard, black /BK and other RAL colours on request.
- Life: >60,000 hours (L70 / F10).
- Performance option: High CRI /R9.
- Related format: 161 Series twin version also available.

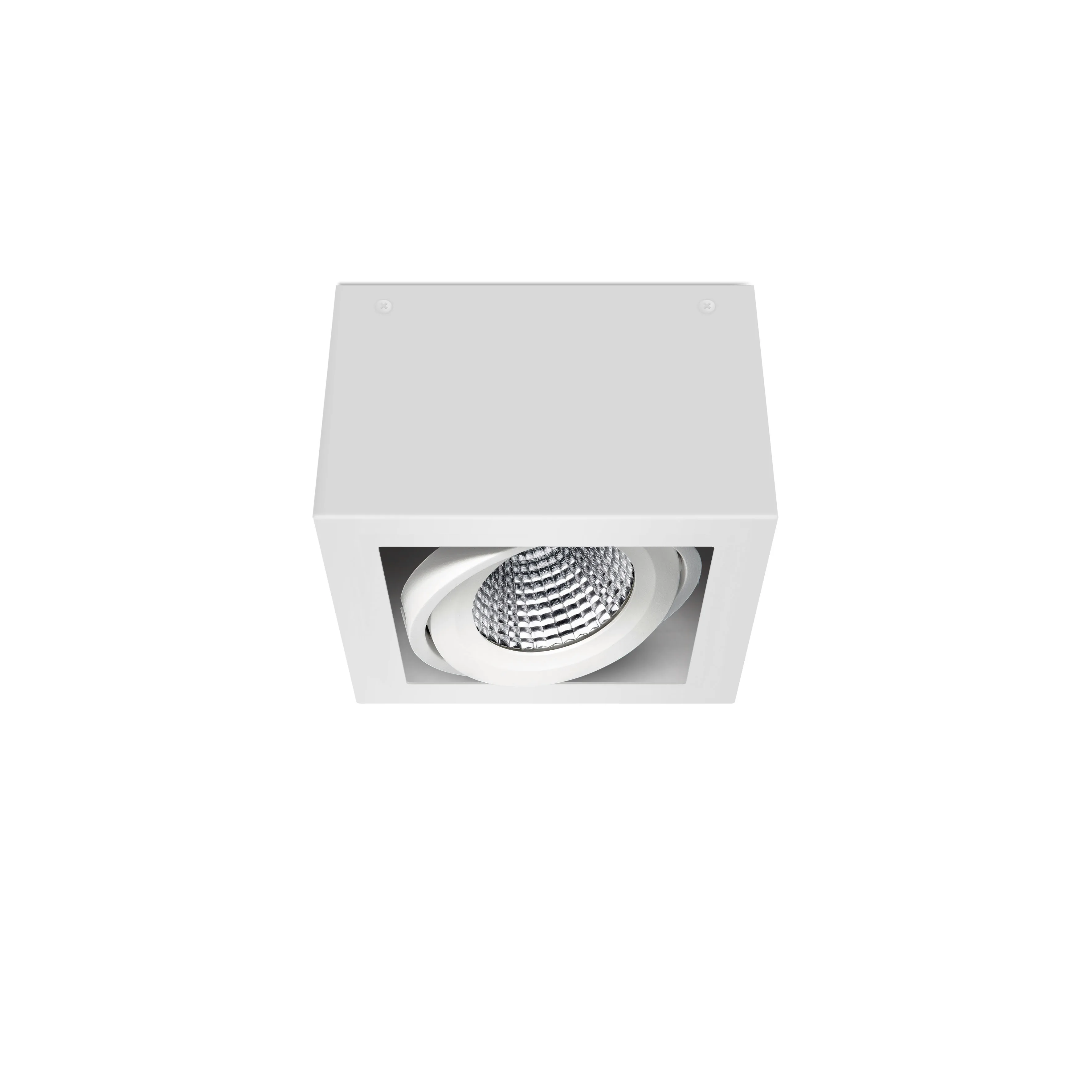

Body and mounting reference
Align body and mounting reference.
Align uses a surface-mounted adjustable spotlight body with a recessed reflector assembly and Tridonic-powered light engine for commercial accent-lighting positions.
Recorded base models cover 3000K and 4000K outputs from 1,025 lm to 3,000 lm, with medium beam as standard and narrow or wide beam options where the project needs different emphasis.
Use the product image, installation guide, photometric data and BIM file when confirming mounting position, aiming direction and output selection.
Model references
Base models for Align.
Output and CCT
ALIGN.0011,025 lm | 10 W | 3000K
Output and CCT
ALIGN.0021,025 lm | 9 W | 4000K
Output and CCT
ALIGN.0032,000 lm | 19 W | 3000K
Output and CCT
ALIGN.0042,000 lm | 18 W | 4000K
Output and CCT
ALIGN.0053,000 lm | 31 W | 3000K
Output and CCT
ALIGN.0063,000 lm | 29 W | 4000K
Options And Accessories
Align beam, finish and control options.
HighRack, finish, control and performance references.
/ECO
DALI / SwitchDIM / DSI (/ECO) for commercial dimming and switching control strategies.
/BK
Black finish (/BK), with other RAL colours available on request.
/NB/WB
Narrow beam (/NB) or wide beam (/WB), with medium beam recorded as standard.
/R9
High CRI (/R9) for colour-critical retail, hospitality and display accents.
Custom configuration
Project-specific variation available.
Specification reasons
Why specify Align?
Optics
Medium beam as standard
Recorded medium beam for controlled accent-lighting layouts.
Performance
Efficacy up to 112.9 llm/tcW
Recorded delivered performance across the Align base models.
Controls
DALI / SwitchDIM / DSI
Recorded control options for commercial dimming and switching strategies.
Controls
161 Series twin version
Single and twin format reference for related project layouts.
Options
White and black finish options
White standard, black /BK and other RAL colours on request.
Warranty
High CRI /R9 option
Performance option for colour-critical accent-lighting applications.
Product FAQs
Align specification questions.
Source-backed notes for contractors, consultants and buyers reviewing adjustable LED spotlight options.
What makes Align different from a standard adjustable LED spotlight?
Align is a surface-mounted adjustable LED spotlight powered by Tridonic, with outputs from 1,025 lm to 3,000 lm, 3000K and 4000K base models, medium beam as standard and narrow or wide beam options.
Is Align suitable for retail and hospitality accent lighting?
Align suits retail display lighting, hospitality feature lighting and other commercial accent-lighting positions where an adjustable spotlight and beam selection are needed.
Which outputs, wattages and colour temperatures are available?
Recorded base models cover 1,025 lm at 10 W / 9 W, 2,000 lm at 19 W / 18 W and 3,000 lm at 31 W / 29 W, with 3000K and 4000K versions across the range.
Which beam and control options can be specified?
Align uses medium beam as standard, with narrow beam and wide beam options. Recorded control options are DALI, SwitchDIM, DSI and /ECO.
What finish and performance options are available?
The page records white as the main finish, black finish /BK as an option, other RAL colours on request, high CRI /R9 and a related 161 Series twin version.
Are datasheet, photometric, BIM and installation files available?
The current page record includes a datasheet, installation guide, photometric data pack and BIM file for Align.
Related commercial paths
Where this downlight sits in the commercial range.
Related pages cover the parent downlight range, emergency variants, controls and application context.
Commercial downlights
Parent category for low-glare, adjustable, IP-rated and emergency-ready downlight families.
Emergency downlightsEmergency downlight route where emergency conversion or self-test is part of the brief.
IP65 downlightsProtected downlight guidance for washrooms, bathrooms and hospitality areas.
Lighting controlsDALI, Casambi, mains dimming and switching routes for commercial luminaires.
Product Support
Confirm beam, finish and control details.
Share the selected code, beam choice, finish, control requirement and any performance notes. Lumenloop can review the recorded Align details and supporting files for that selection.
