Ceiling cut-out180 × 180 mm single / 339 × 180 mm twin
ADJUSTABLE adjustable framelight downlight
Frameadjustable framelight downlight
Full adjustment.
Precise beam control.
Frame is an adjustable framelight downlight for architectural and commercial lighting applications where precise light control, low glare, and high performance are essential. Equipped with a Tridonic LED module and driver system, the Frame ensures long-lasting efficiency and reliability.
Single and twin-head models use a Tridonic LED and driver platform with a 40-degree multi-faceted reflector as standard, plus verified reflector, control, emergency, finish and shielding options.
- Output
- 1 or 2 heads · 1,025–3,275 lm per head 16 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 19 listed controls and accessories
01 / 07
Output1 or 2 heads · 1,025–3,275 lm per head
Colour temperature3000K / 4000K
ControlsDALI, SwitchDIM, DSI, Casambi
Ceiling cut-out180 × 180 mm single / 339 × 180 mm twin
Product configurator
Configure your Frame
Choose the Frame model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
adjustable framelight downlightThe Frame Series is a premium fully adjustable LED framelight, engineered for architectural and commercial lighting applications where precise light control, low glare, and high performance are essential. Equipped with a Tridonic LED module and driver system, the Frame ensures long-lasting efficiency and reliability
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Frame adjustable framelight downlight quick specification.
Check the installation, output, colour temperature and control information for this adjustable framelight downlight before reviewing the full model schedule.
Depth145 mm / 35 mm max
Output1 or 2 heads · 1,025–3,275 lm per head
System power8–28 W per head
CCT3000K / 4000K
ControlsNon-dimmable, SwitchDIM, DSI, DALI, Casambi
Product files
Download Frame technical files.
Available files for this exact product are listed below.
Standard multi-faceted reflectorIntensity · cd/klm
Technical description
Adjustable low-glare LED downlight specification for Frame.
The Frame Series is a premium fully adjustable LED framelight, engineered for architectural and commercial lighting applications where precise light control, low glare, and high performance are essential. Equipped with a Tridonic LED module and driver system, the Frame ensures long-lasting efficiency and reliability
Frame construction and mounting
For adjustable framelight specifications, compare the model codes, outputs and available options below.
Commercial and architectural applications.
Output, optics and colour temperature
Designed for precise light control and low glare.
Frame output is 1 or 2 heads · 1,025–3,275 lm per head.
System power options are 8–28 W per head.
Controls, emergency and project options
Reflector options include 25° and 60° multi-faceted, 40° specular and 50° satin distributions. Non-dimmable control gear is standard; SwitchDIM, DALI or DSI is available with /ECO, and Casambi wireless control with /BTC.
Emergency options include 3-hour emergency, Self-test / DALI emergency, Maintained emergency, DALI emergency.
Output1 or 2 heads · 1,025–3,275 lm per head
System power8–28 W per head
Colour temperature3000K / 4000K
FinishWhite standard; /WW, /BB, /WB and /BW combinations
ControlsNon-dimmable, SwitchDIM, DALI, DSI, Casambi
EmergencyThree-hour emergency, Maintained emergency, Self-test emergency, DALI emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeadjustable framelight downlight
Model schedule
| Model | Heads | Output | CCT | System power |
|---|---|---|---|---|
| FRAME.001 | 1 | 1,025 lm | 3000K | 8 W |
| FRAME.002 | 1 | 1,075 lm | 4000K | 8 W |
| FRAME.003 | 1 | 1,725 lm | 3000K | 14 W |
| FRAME.004 | 1 | 1,800 lm | 4000K | 14 W |
| FRAME.005 | 1 | 2,375 lm | 3000K | 19 W |
| FRAME.006 | 1 | 2,450 lm | 4000K | 19 W |
| FRAME.007 | 1 | 3,150 lm | 3000K | 28 W |
| FRAME.008 | 1 | 3,275 lm | 4000K | 28 W |
| FRAME.201 | 2 | 1,025 lm/head | 3000K | 8 W/head |
| FRAME.202 | 2 | 1,075 lm/head | 4000K | 8 W/head |
| FRAME.203 | 2 | 1,725 lm/head | 3000K | 14 W/head |
| FRAME.204 | 2 | 1,800 lm/head | 4000K | 14 W/head |
| FRAME.205 | 2 | 2,375 lm/head | 3000K | 19 W/head |
| FRAME.206 | 2 | 2,450 lm/head | 4000K | 19 W/head |
| FRAME.207 | 2 | 3,150 lm/head | 3000K | 28 W/head |
| FRAME.208 | 2 | 3,275 lm/head | 4000K | 28 W/head |
Output1 or 2 heads · 1,025–3,275 lm per head
System power8–28 W per head
Colour temperature3000K / 4000K
FinishWhite bezel and gimbal standard; /WW, /BB, /WB and /BW combinations
ControlsNon-dimmable standard; SwitchDIM, DALI or DSI /ECO; Casambi /BTC
EmergencyThree-hour emergency, Maintained emergency, Self-test emergency, DALI emergency
Models, options and accessories
Frame model codes and specification options.
Choose the Frame base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes16 listed configurations
16 models are shown with output, CCT and power information where available.
1 × 1,025 lm3000K1 × 8 W
1 × 1,075 lm4000K1 × 8 W
1 × 1,725 lm3000K1 × 14 W
1 × 1,800 lm4000K1 × 14 W
1 × 2,375 lm3000K1 × 19 W
1 × 2,450 lm4000K1 × 19 W
1 × 3,150 lm3000K1 × 28 W
1 × 3,275 lm4000K1 × 28 W
2 × 1,025 lm3000K2 × 8 W
2 × 1,075 lm4000K2 × 8 W
2 × 1,725 lm3000K2 × 14 W
2 × 1,800 lm4000K2 × 14 W
2 × 2,375 lm3000K2 × 19 W
2 × 2,450 lm4000K2 × 19 W
2 × 3,150 lm3000K2 × 28 W
2 × 3,275 lm4000K2 × 28 W
Additional Frame options and accessoriesProduct images and specification choices
Finish/9
Ra90 colour rendering for enhanced definition
Finish/PI
Trimless plaster-in bezel
Finish/WW
White/Black bezel and gimbal combinations
Finish/BB
White/Black bezel and gimbal combinations
Finish/BW
White/Black bezel and gimbal combinations
Controls/MF25
25° multi-faceted reflector
Controls/MF60
60° multi-faceted reflector
Controls/SP40
40° specular reflector
Controls/SA50
50° satin reflector
Controls/ECO
Specification dimming and control gear
Controls/BTC
Casambi Bluetooth wireless control
Emergency/EM
3-hour emergency conversion
Emergency/EMD
Self-test or DALI emergency conversion
Emergency/EMI
Maintained emergency conversion
Emergency/EMDI
DALI emergency option
Beam & Optics/WB
Wide beam optic
Baffles & Louvres/SN
Black snoot accessory

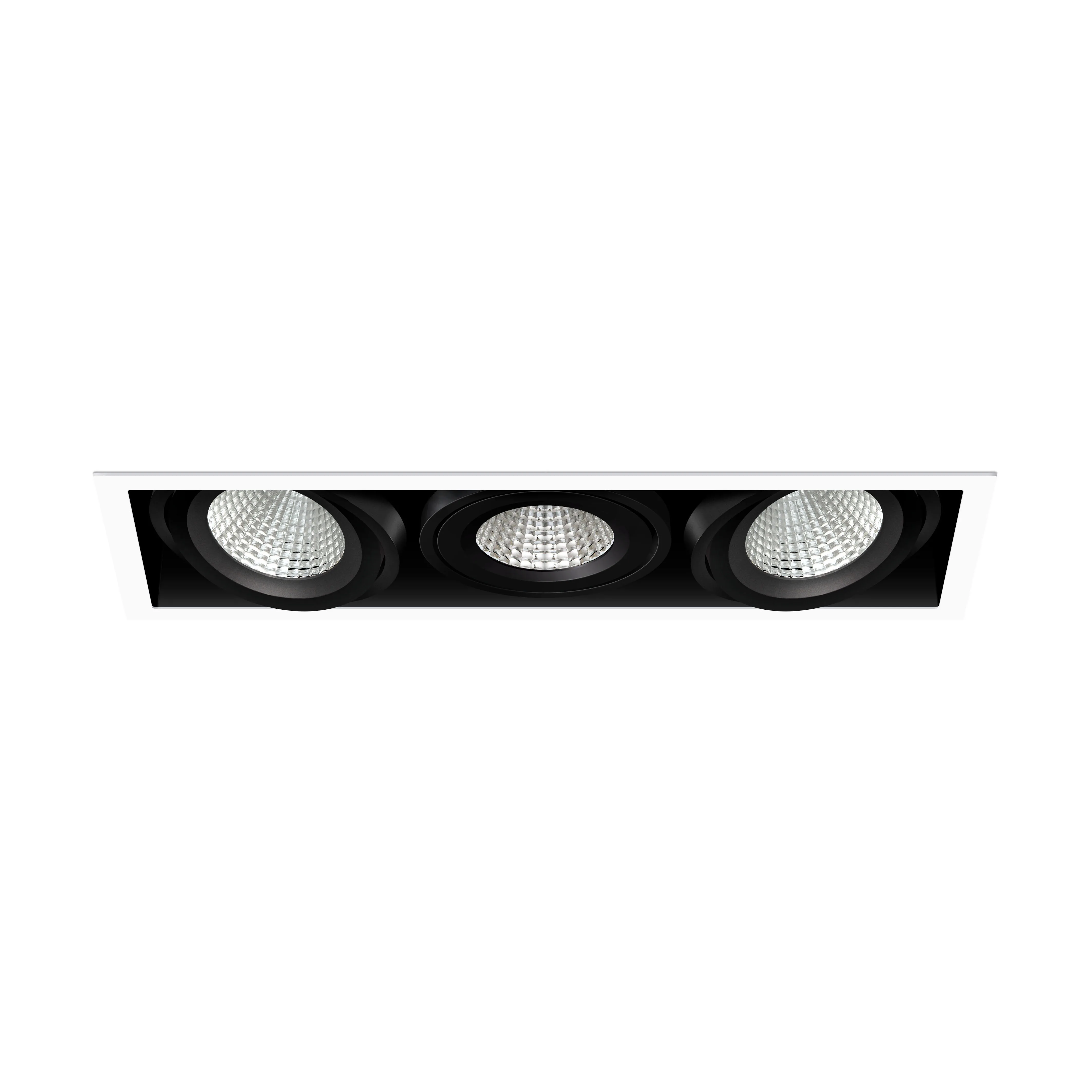

Body & Mounting/TOP
Top-access body option
Other Options/VG
Mesh void guard
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Frame
Why specify this adjustable framelight downlight?
The Frame Series is a premium fully adjustable LED framelight, engineered for architectural and commercial lighting applications where precise light control, low glare, and high performance are essential. Equipped with a Tridonic LED module and driver system, the Frame ensures long-lasting efficiency and reliability
The 4-model family combines 1 or 2 heads · 1,025–3,275 lm per head, 3000K / 4000K and 19 listed configuration choices without changing the core product identity.
Precise aiming within a clean architectural frame
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Fully adjustable
Aim the optical assembly to suit displays and features.
Low-glare control
Restrained optical treatment for comfortable accent lighting.
Tridonic platform
LED module and driver system for professional applications.
Extensive options
Beam, control, emergency and finish choices remain separate.
Output1 or 2 heads · 1,025–3,275 lm per head16 listed models
CCT3000K / 4000KModel dependent
Options19Controls and accessories
Typical applicationsWhere Frame is specified
Retail displays
Directional lighting for merchandise and feature areas.
Hospitality
Adjustable accent lighting for reception and lounge spaces.
Commercial interiors
Precise lighting within a clean ceiling frame.
Gallery-style spaces
Controlled beams for artwork and architectural surfaces.
Compare Frame with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
adjustable LED downlight
AeroLux
AeroLux is an adjustable LED downlight with a 36 degree faceted reflector, low-profile die-cast bezel, 3000K or 4000K model codes, and DALI, Casambi and emergency options for architectural, retail and hospitality interiors.
Compare product →
surface-mounted adjustable LED spotlight
Align
Align is a fully adjustable single LED surface-mounted framelight for accent and general downlighting.
Compare product →

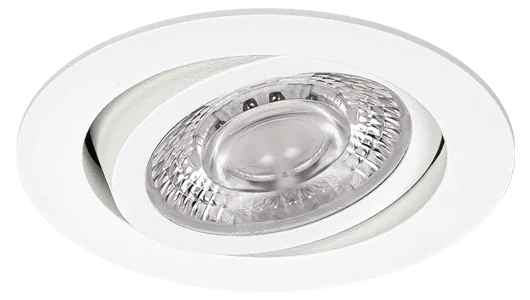

mini LED downlight
Axis
Axis is a mini LED downlight.
Compare product →Specification questions
Frame details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
16 configurations are listed: FRAME.001, FRAME.002, FRAME.003, FRAME.004, FRAME.005, FRAME.006, FRAME.007, FRAME.008, FRAME.201, FRAME.202, FRAME.203, FRAME.204, FRAME.205, FRAME.206, FRAME.207, FRAME.208.
The listed models cover 1 or 2 heads · 1,025–3,275 lm per head. Colour-temperature choices are 3000K / 4000K.
Control options include DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Maintained emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The Frame requires a 180 × 180 mm single / 339 × 180 mm twin ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Frame datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
