Ceiling cut-out110 mm
UGR<19 recessed commercial downlight
Clarityrecessed commercial downlight
Compact form.
Exceptional choice.

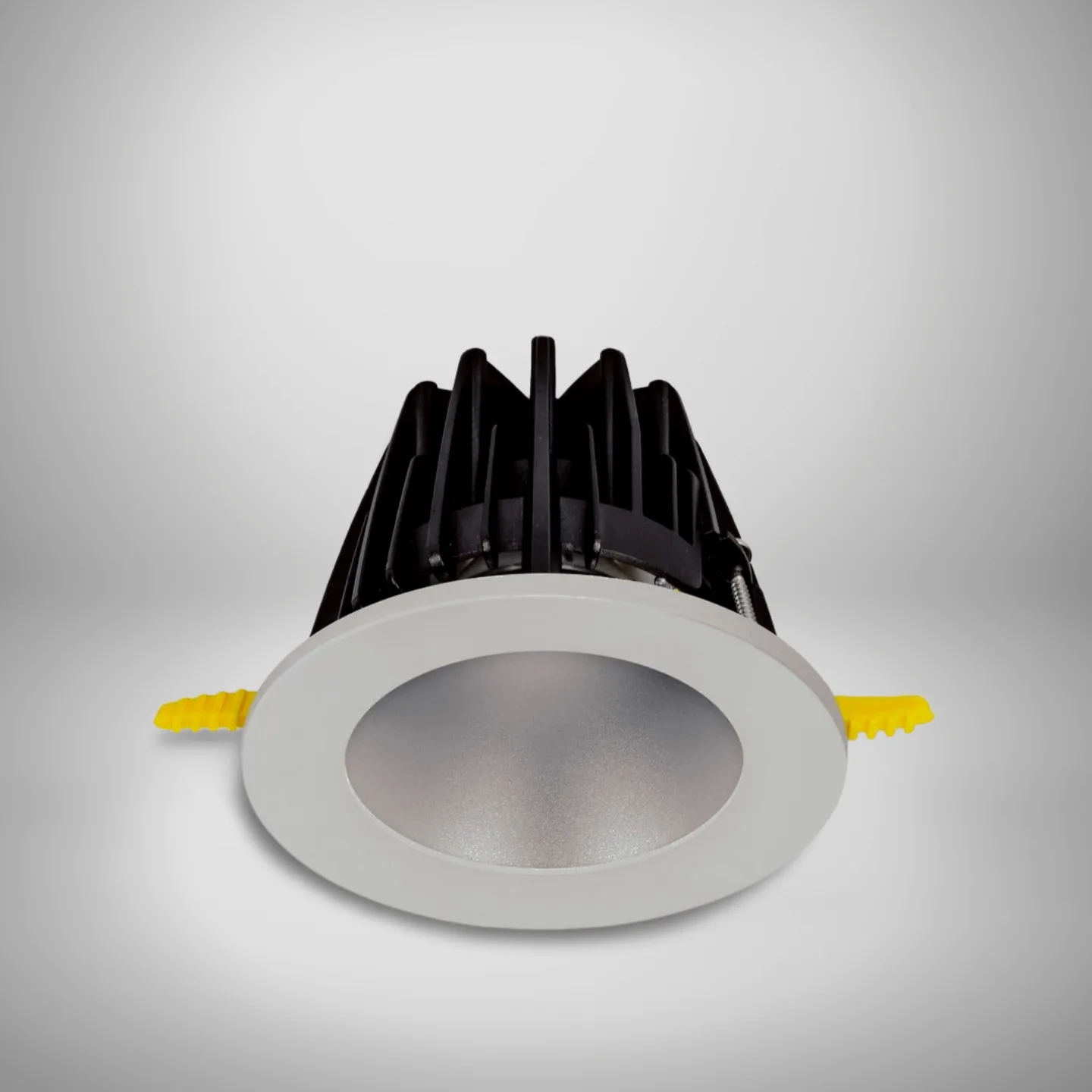

Clarity is a recessed commercial downlight for easy installation and offers a range of interchangeable accessories for flexible customization. It comes standard with a multi-faceted 40-degree reflector, though other reflector styles and beam angles are available to suit different applications.
A 40° multi-faceted reflector is standard, with interchangeable reflector and accessory options listed in the datasheet.
- Output
- 1025–3275 lm 8 model codes
- Body height
- 99 mm 110 mm cut-out
- Warranty
- 5 years UK made
01 / 08
Visual comfortUGR<19
OutputsUp to 3275 lm
ProtectionIP54 + IP65 options
ControlsDALI, SwitchDIM, DSI, Casambi
Product configurator
Configure your Clarity
Choose output and CCT, then define the reflector, control gear, emergency conversion and visible bezel. Additional mounting, IP and decorative accessories are listed below.
LuminaireProduct family
recessed commercial downlightCompact Tridonic-powered downlight with twist-lock bezel
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Clarity recessed commercial downlight quick specification.
Check the installation, output, colour temperature and control information for this recessed commercial downlight before reviewing the full model schedule.
Bezel130 mm
OutputUp to 3275 lm
ControlsNon-dimmable; SwitchDIM, DSI, DALI or Casambi options
EmergencyEmergency conversion, Self-test emergency, DALI emergency
ProtectionIP54 / IP65
Product files
Download Clarity technical files.
Available files for this exact product are listed below.
Rotational distributionIntensity · cd/klm
Technical description
One body. A complete optical toolkit.
Clarity is a recessed commercial downlight built around Tridonic technology, controlled low-glare optics and a twist-lock bezel system that supports a notably broad range of reflectors, finishes and protective accessories.
Compact ceiling integration
The 130 mm bezel covers a 110 mm ceiling cut-out. A 99 mm body height keeps the fitting below 100 mm, while the published maximum ceiling depth is 40 mm.
The die-cast twist-lock bezel accepts interchangeable optical and decorative accessories. Surface can, suspended can, plaster-in and halo kits extend the same light engine beyond a standard recessed installation.
Output and reflector selection
Eight model codes provide 3000K and 4000K outputs from 1025 to 3275 lumens at 8 W, 14 W, 19 W or 28 W. The highest published efficacy is 133.1 lm/W.
A 40° multifaceted reflector is standard. Alternative 25° multifaceted, 40° specular, 50° satin and 60° multifaceted reflectors allow the beam distribution to change without replacing the complete downlight family.
IP, control and emergency options
IP54 glass accessories and an IP65 clear polycarbonate bezel are available for projects with a defined ingress-protection requirement. Anti-tamper, snoot, halo and decorative highlight accessories are also listed.
SwitchDIM, DALI or DSI use /ECO, while Casambi wireless dimming uses /BTC. Four emergency suffixes separate remote and integral indicators from standard and DALI/self-test operation.
UGR<19Low-glare commercial optical performance
1025–3275 lmEight 3000K and 4000K models
Five reflector distributions25°, 40°, 50° and 60° choices
110 mm cut-out130 mm bezel and 99 mm body
IP54 and IP65Glass and polycarbonate accessories
Five-year warrantyUK-made professional downlight
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typerecessed commercial downlight
Model codesCLARITY.001 to CLARITY.008
Output1025 to 3275 lumens
System power8, 14, 19 or 28 W
Colour temperature3000K / 4000K
Bezel130 mm
Cut-out110 mm
Body height99 mm
Maximum ceiling depth40 mm
Standard optic40° multifaceted reflector
Alternative optics25° multifaceted, 40° specular, 50° satin, 60° multifaceted
GlareUGR<19
Protection optionsIP54 and IP65 accessories
ControlsDALI, SwitchDIM, DSI, Casambi
EmergencySelf-test emergency
Life>55,000 hours L70/B10
Warranty5 years
ComplianceUKCA / CE; Declaration of Conformity available
Models, options and accessories
Clarity model codes and specification options.
Choose output and colour temperature first, then match the reflector, control gear, emergency conversion, bezel and installation accessory to the project.
Model codes8 listed configurations
Four wattages are available in both 3000K and 4000K.
1025 lm8 W
1075 lm8 W
1725 lm14 W
1800 lm14 W
2375 lm19 W
2450 lm19 W
3150 lm28 W
3275 lm28 W
Reflector
/MF25
25° multifaceted reflector
Reflector
/SP40
40° specular reflector
Reflector
/SA50
50° satin reflector
Reflector
/MF60
60° multifaceted reflector
Emergency
/EMD
DALI and self-test emergency with remote indicator
Driver
/TOP
Tridonic Excite driver, 100K hours, I-Select, loop-in/loop-out
Wireless control
/BTC
Casambi Bluetooth network including dimming
Additional Clarity options and accessoriesFinishes, protection, mounting and control accessories
Emergency/EM
Emergency conversion with remote indicator
Emergency/EMI
Emergency conversion with integral indicator
Emergency/EMDI
DALI and self-test emergency with integral indicator
Control gear/ECO
SwitchDIM, DALI or DSI
Mounting accessorySurface can
Surface-mounted Clarity arrangement
Mounting accessorySuspended surface can
Suspended Clarity arrangement
BezelTA200/WH
White bezel — RAL9010
BezelTA200/GY
Grey bezel — RAL9006
BezelTA200/BL
Black bezel — RAL9005
BezelTA200/BWH
Brilliant white bezel — RAL9016
Halo bezelTA225/WH
White bezel drop clear halo
Halo bezelTA226/WH
White bezel drop opal halo
Anti-tamperAT200/WH
White anti-tamper bezel
IP65IP65/001/130
IP65 clear polycarbonate bezel
IP54TA240
IP54 clear glass
IP54TA241
IP54 centre-etched glass
IP54TA242
IP54 fully etched glass
HighlightTA220/FROST
Frosted highlight
HighlightTA220/BLUE
Blue highlight
SnootTA210/BLACK
Black snoot
SnootTA210/FROST
Frosted snoot
SnootTA210/BLUE
Blue snoot
Mounting accessoryPI200
Plaster-in kit — 140 mm cut-out / 138 mm height
Mounting accessoryHALOKIT.001
Halo kit — maximum 150 mm cut-out
Anti-tamperGF208 / GF218
Anti-tamper driver and bit
Product variationPlug and sockets
Connector configuration
IP54 and IP65 accessories alter the visible bezel arrangement. Confirm the required control gear, emergency indicator position and ceiling accessory before quotation.
Why Clarity
Why specify this recessed commercial downlight·
Clarity combines compact ceiling dimensions with a professional Tridonic platform and a genuinely extensive optical and accessory range.
The same eight-model family can move from a standard low-glare recessed fitting to narrower accent, wider ambient, protected, decorative, surface or suspended arrangements.
Optical flexibility without changing the core luminaire family
The twist-lock bezel allows reflectors and visible accessories to change around the selected output and colour temperature.
Controls, emergency conversion and ingress-protection accessories remain separate decisions, keeping the quotation code explicit.
Low-glare optics
UGR<19 performance with four listed reflector distributions.
Compact dimensions
110 mm cut-out, 130 mm bezel and body height below 100 mm.
Wide accessory set
Decorative, halo, snoot, anti-tamper, surface, suspended and plaster-in choices.
Project controls
DALI, SwitchDIM, DSI, Casambi and four emergency arrangements.
Output1025–3275 lmEight listed models
Life>55,000 hL70 / B10
Warranty5 yearsUK made
Typical applicationsWhere Clarity is specified
Commercial interiors
Low-glare recessed lighting where output and finish need to be coordinated.
Reception and circulation
Reflector choices for controlled ambient or more focused light.
Refurbishment projects
Surface, suspended, plaster-in and halo accessories around one light engine.
Protected interior areas
IP54 and IP65 bezel accessories where the project calls for added ingress protection.
Compare Clarity with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
IP54 LED downlight
Aero
Aero is an IP54 LED downlight designed for commercial applications.
Compare product →
adjustable LED downlight
AeroLux
AeroLux is an adjustable LED downlight with a 36 degree faceted reflector, low-profile die-cast bezel, 3000K or 4000K model codes, and DALI, Casambi and emergency options for architectural, retail and hospitality interiors.
Compare product →
compact surface mounted LED downlight
Crown
Crown is a compact surface-mounted LED downlight with integral Philips LED and driver components and outputs up to 3,125 lm.
Compare product →Specification questions
Clarity details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
The Clarity requires a 110 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Clarity combines eight output and CCT models with a twist-lock bezel, five reflector distributions, UGR<19 performance and a broad range of decorative, mounting, IP, control and emergency options.
The standard recessed fitting has a 130 mm bezel, 110 mm cut-out, 99 mm body height and a published maximum ceiling depth of 40 mm.
Outputs run from 1025 to 3275 lumens. Each of the 8 W, 14 W, 19 W and 28 W levels is available in 3000K and 4000K.
A 40° multifaceted reflector is standard. Alternatives are /MF25 for 25° multifaceted, /SP40 for 40° specular, /SA50 for 50° satin and /MF60 for 60° multifaceted.
Yes. The datasheet lists three IP54 glass options and an IP65 clear polycarbonate bezel. These accessories should be matched to the required ceiling and environmental condition.
/ECO provides SwitchDIM, DALI or DSI, while /BTC provides Casambi. Four emergency suffixes separate remote or integral indicators and standard or DALI/self-test operation.
The datasheet lists a surface can, suspended surface can, plaster-in kit and halo kit in addition to the standard recessed arrangement.
The Clarity datasheet, installation guide, photometric data and BIM file are linked from the product information.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
