Adjustable framing plates
Four aperture plates help shape the beam around display objects and defined visual edges.
Shaper Track adjustable track spotlight

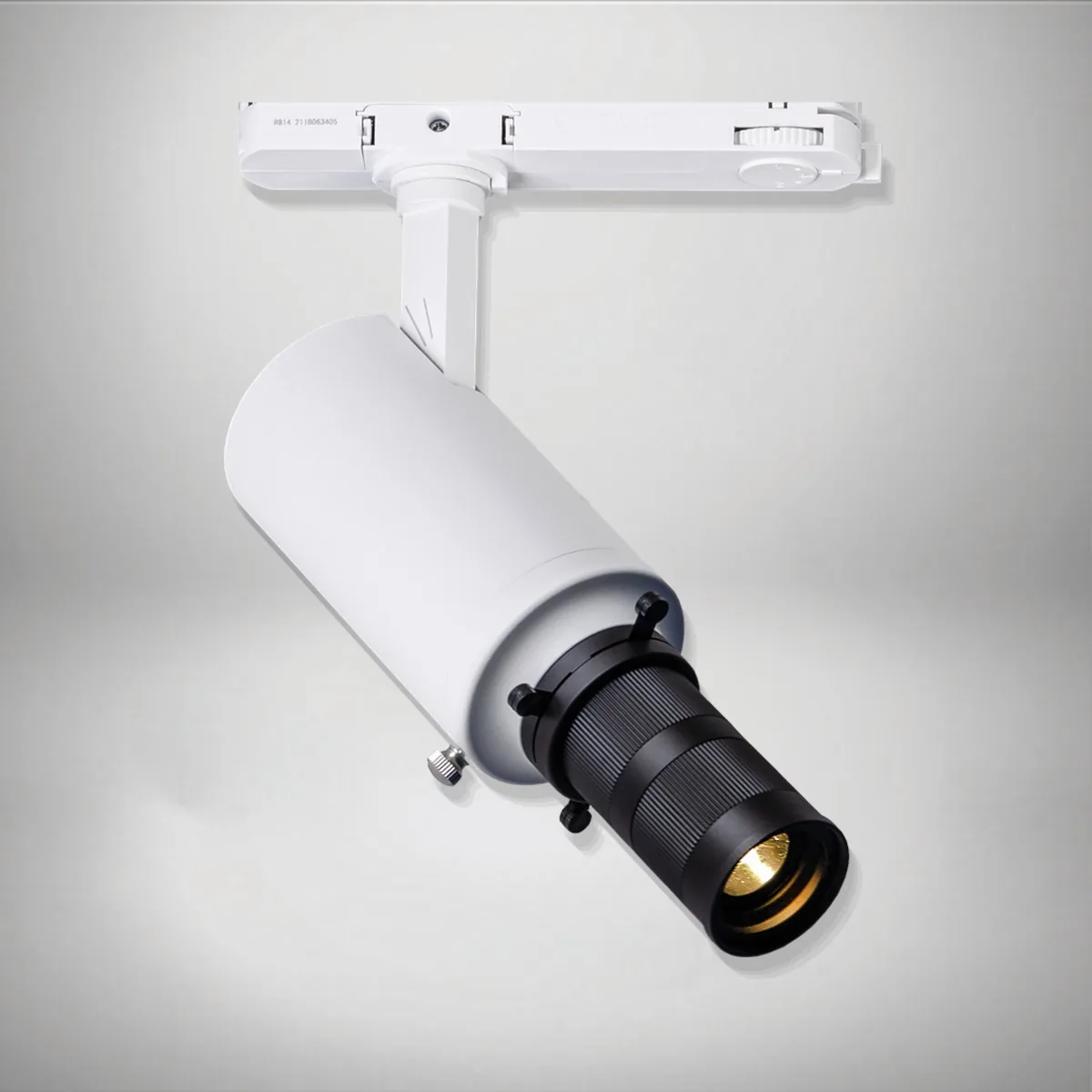

Shaper Track is a BI LED framing projector track spotlight for galleries, retail displays and precise object lighting, with FramiFlex beam shaping, four aperture plates, focus and zoom dampening, Ra80/Ra90 colour rendering and DALI, Casambi or mains dimming suffixes.

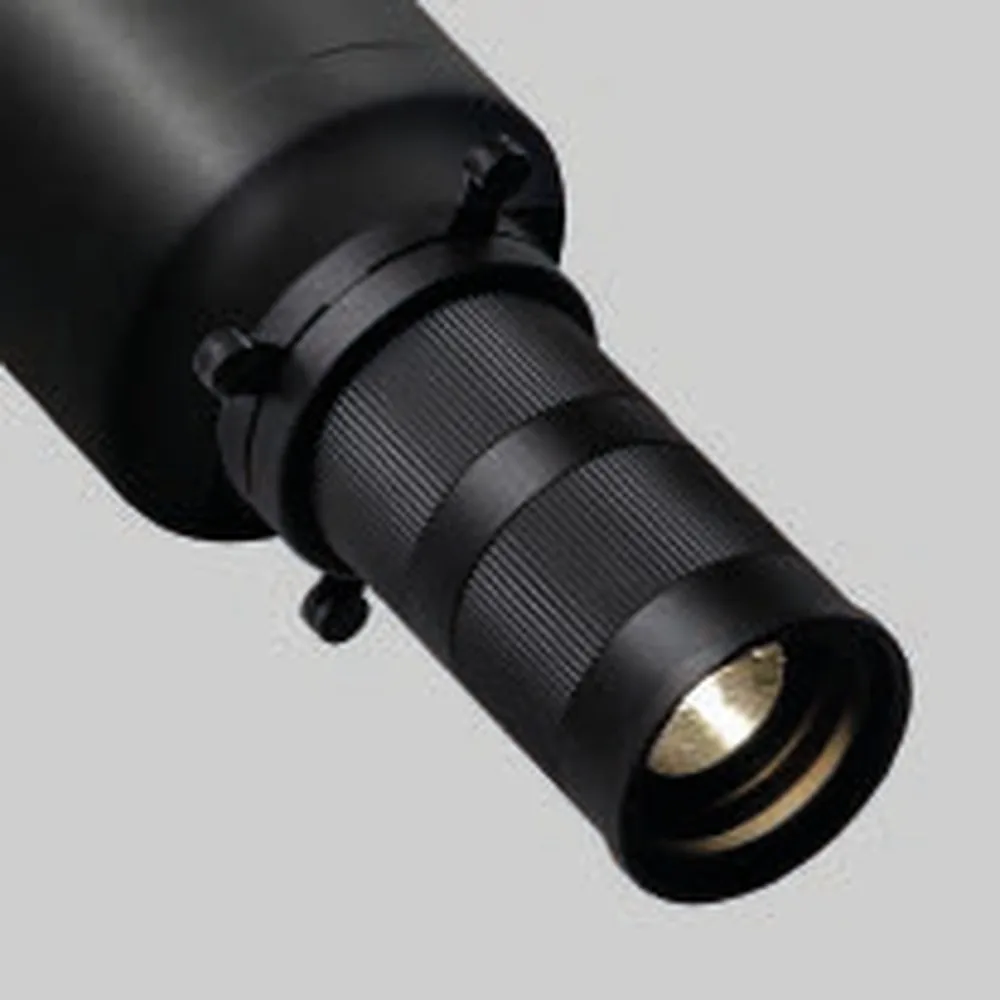

Focus and zoom adjustment
Dampened focus and zoom adjustment helps fine tune the projected beam on site.
Optics
FramiFlex LED shape-shifter lens with four adjustable aperture framing plates; focus and zoom dampening adjustment
L90 55,000 hours
L90 lumen maintenance at 55,000 hours.
Model references
SHAPERTRACK.001/LO to SHAPERTRACK.006
Application
Framing-projector display lighting for galleries, retail features and precise object illumination.
Mounting
Track mounted
Optics
FramiFlex LED shape-shifter lens with four adjustable aperture framing plates; focus and zoom dampening adjustment
Download Datasheet
Technical datasheet for product reference.
Technical Information
Technical information for specification checks.
Declaration
Declaration document for compliance review.
Project selection
Available luminaire options and accessories are shown below.
Configure For Enquiry
Configure Shaper Track for enquiry.
Select the output, optic, finish, control gear and accessories needed for the project, then send the configuration to Lumenloop for product information or a quotation.
Configured Specification
Selected Shaper Track specification.
Selection reference
SHAPERTRACK.001/LO to SHAPERTRACK.006
Selection reference
SHAPERTRACK.001/LO to SHAPERTRACK.006
Specification Choices
Shaper Track specification options.
Project reference
SHAPERTRACK.001/LO to SHAPERTRACK.006Framing projector reference for final output, finish, control gear and colour-rendering review.
Optics
FramiFlex lensFramiFlex beam shaping with four aperture framing plates, focus adjustment and damped zoom.
Mounting
Track mountedTrack-mounted spotlight body with Vossloh LED and in-track driver platform.
Controls
Custom configurationDALI and wireless control options, finish choices and Ra80 or Ra90 builds are confirmed through specification support.
Options And Accessories
Shaper Track options and project configuration.
Custom configuration
FramiFlex beam shaping, four aperture framing plates, focus adjustment and damped zoom are confirmed against the project brief.
Custom configuration
White standard, black option and Ra80 or Ra90 builds are available as Custom configuration.
Custom configurationNeeds confirmation

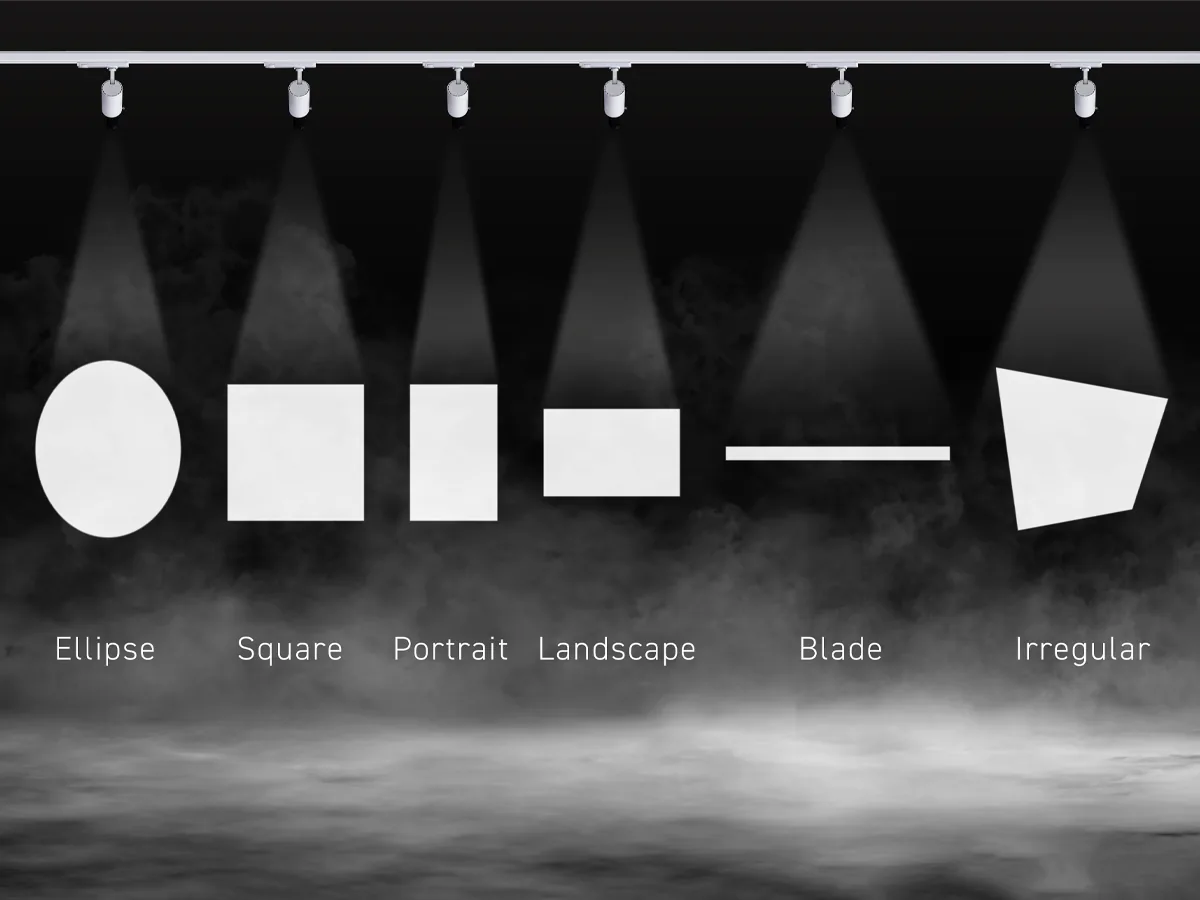

DALI and wireless control options can be configured for the project. Portrait, landscape, blade and irregular designations should be confirmed with specification support before issue.
Technical Description
Adjustable track spotlight specification for Shaper Track.
Shaper Track is a BI LED framing projector track spotlight for galleries, retail displays and precise object lighting, with FramiFlex beam shaping, four aperture plates, focus and zoom dampening, Ra80/Ra90 colour rendering and DALI, Casambi or mains dimming suffixes. Applications include framing-projector display lighting for galleries, retail features and precise object illumination, L90 55,000 hours: L90 lumen maintenance at 55,000 hours and optics: FramiFlex LED shape-shifter lens with four adjustable aperture framing plates; focus and zoom dampening adjustment.
Performance and installation details include optics: FramiFlex LED shape-shifter lens with four adjustable aperture framing plates; focus and zoom dampening adjustment, L90 55,000 hours: L90 lumen maintenance at 55,000 hours, colour rendering: Ra80 or Ra90.001/LO to SHAPERTRACK.006. This section covers output, optics, mounting and control requirements.
Available options include controls: DALI and wireless control options, colour rendering: Ra80 or Ra90, accessories / designations: Portrait, landscape, blade and irregular designations listed in source facts and LED and driver platform: Vossloh LED and in-track driver system. Model codes, control compatibility and lead times vary by configuration. Supporting resources include datasheet, Technical Information and Declaration, where published.
Specification-led adjustable track spotlight features.
- Adjustable framing plates: Four aperture plates help shape the beam around display objects and defined visual edges.
- Focus and zoom adjustment: Dampened focus and zoom adjustment helps fine tune the projected beam on site.
- Optics: FramiFlex LED shape-shifter lens with four adjustable aperture framing plates; focus and zoom dampening adjustment
- L90 55,000 hours: L90 lumen maintenance at 55,000 hours.
- Mounting: Track mounted
- DALI and wireless controls: DALI and wireless options can be aligned with the project control strategy.
- Controls: DALI and wireless control options
- Finish options: White as standard with black option
Optical And Mounting Detail
Shaper Track quick technical reference.
Shaper Track is a BI LED framing projector track spotlight for galleries, retail displays and precise object lighting, with FramiFlex beam shaping, four aperture plates, focus and zoom.
Model code: SHAPERTRACK.001/LO to SHAPERTRACK.006, optics: FramiFlex LED shape-shifter lens with four adjustable aperture framing plates; focus and zoom dampening adjustment and L90 55,000 hours: L90 lumen maintenance at 55,000 hours.
Project notes include controls: DALI and wireless control options, colour rendering: Ra80 or Ra90 and accessories / designations: Portrait, landscape, blade and irregular designations listed in source facts. Supporting files include datasheet, Technical Information and Declaration.
Model Codes
SHAPERTRACK.001 to SHAPERTRACK.006 Shaper Track selection references.
Choose the output and colour temperature first. Finish, colour rendering and controls sit separately in the options table.
CodeCCTOutputPower
SHAPERTRACK.001/LO3000K525 lm11 W
SHAPERTRACK.002/LO4000K525 lm11 W
SHAPERTRACK.0013000K625 lm14 W
SHAPERTRACK.0024000K650 lm14 W
SHAPERTRACK.0033000K800 lm20.5 W
SHAPERTRACK.0044000K825 lm20.5 W
SHAPERTRACK.0053000K950 lm26.5 W
SHAPERTRACK.0064000K975 lm26.5 W
Options And Variations
Finish, colour and control options.
SuffixMeaning

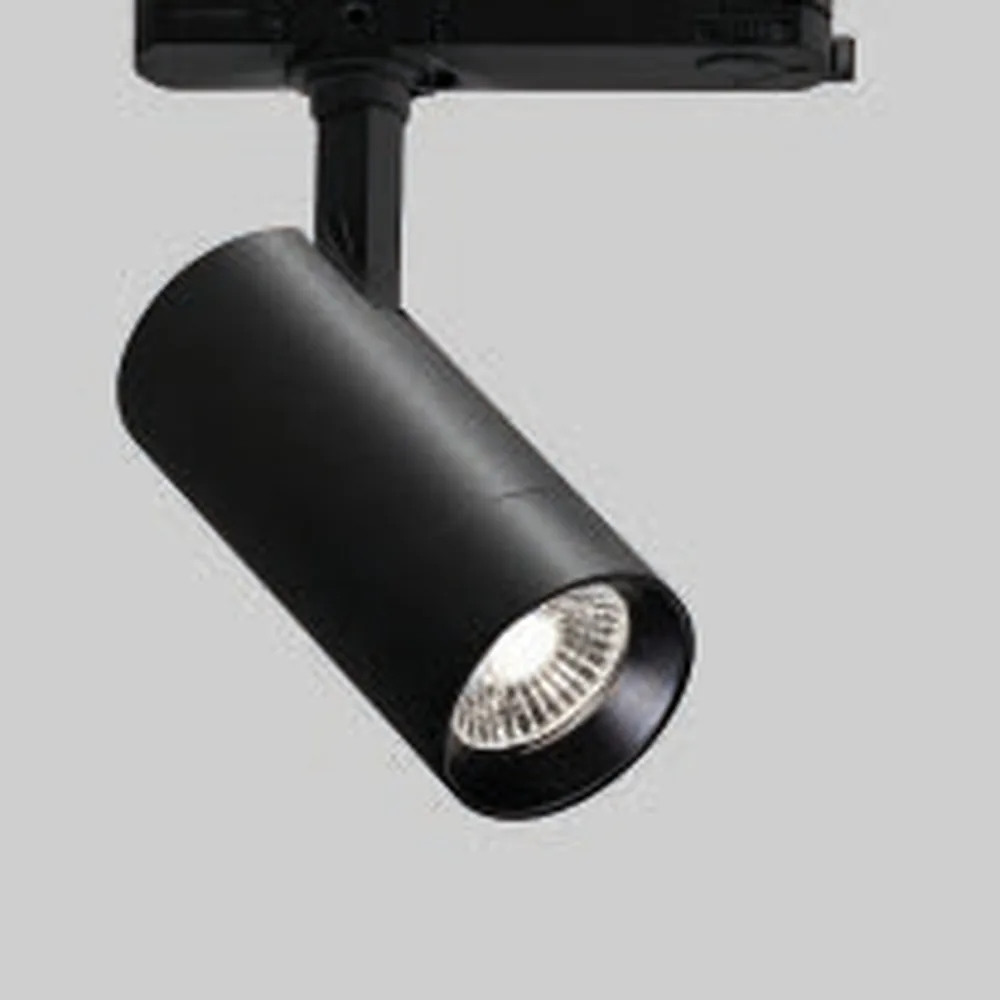

/BKBlack body finish. White is the standard finish.

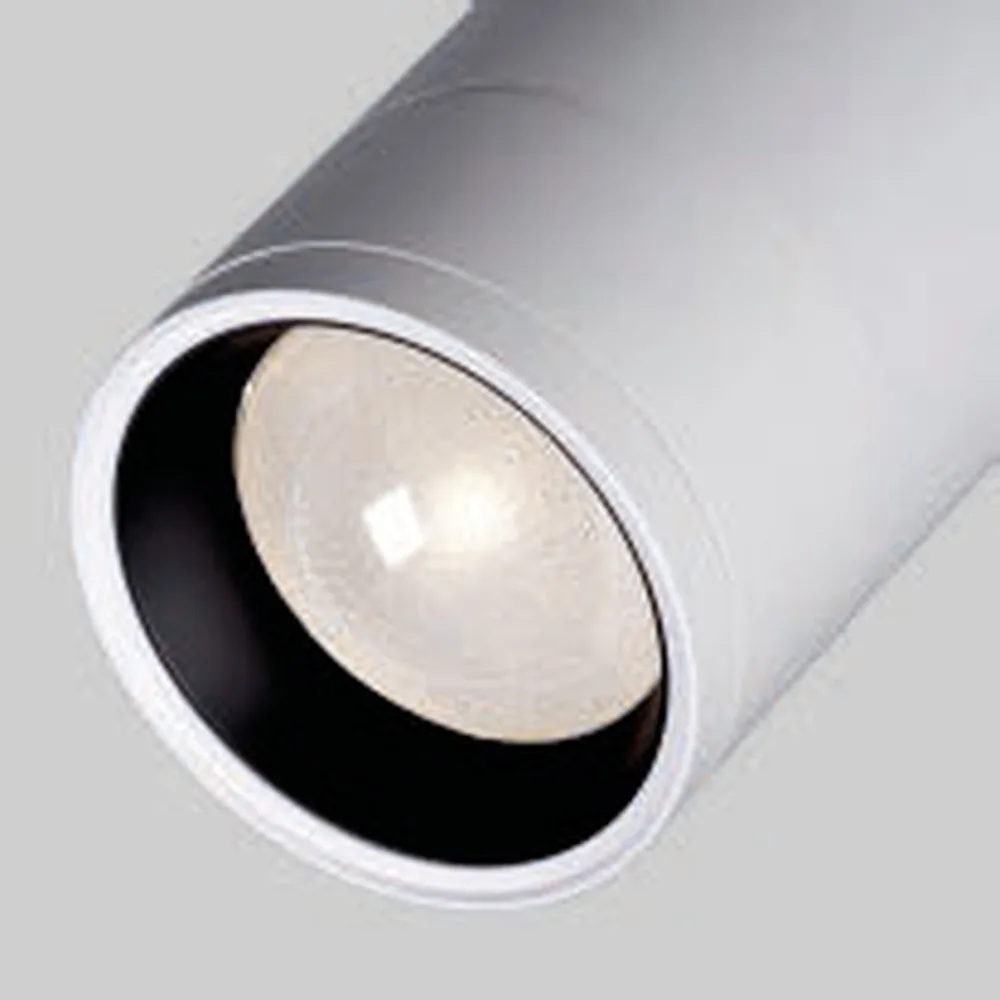

/9Ra90 LED module for higher colour-rendering requirements.
/MDIMMains dimming control gear.
/DALIDALI control gear.
/BTCBluetooth control gear.
Accessory codes are selected in the configurator above. Only the fixed supplier suffixes shown here are exposed publicly.
Specification reasons
Why specify Shaper Track?
Optics
Adjustable framing plates
Four aperture plates help shape the beam around display objects and defined visual edges.
Optics
Focus and zoom adjustment
Dampened focus and zoom adjustment helps fine tune the projected beam on site.
Optics
Optics
FramiFlex LED shape-shifter lens with four adjustable aperture framing plates; focus and zoom dampening adjustment
Performance
L90 55,000 hours
L90 lumen maintenance at 55,000 hours.
Mounting
Mounting
Track mounted
Controls
DALI and wireless controls
DALI and wireless options can be aligned with the project control strategy.
Product FAQs
Shaper Track specification questions.
Specification notes for contractors, consultants and buyers checking adjustable track spotlight options before ordering.
What makes Shaper Track different from a standard adjustable track spotlight?
Shaper Track is a BI LED framing projector track spotlight for galleries, retail displays and precise object lighting, with FramiFlex beam shaping, four aperture plates, focus and zoom dampening, Ra80/Ra90 colour rendering and DALI, Casambi or mains dimming suffixes. Applications include framing-projector display lighting for galleries, retail features and precise object illumination, L90 55,000 hours: L90 lumen maintenance at 55,000 hours and optics: FramiFlex LED shape-shifter lens with four adjustable aperture framing plates; focus and zoom dampening adjustment.
Which ceilings or mounting conditions should be checked for Shaper Track?
Mounting: Track mounted. Check ceiling build-up, access space and fixing method before ordering.
Which outputs, wattages and colour temperatures are available?
Colour rendering: Ra80 or Ra90. L90 55,000 hours: L90 lumen maintenance at 55,000 hours. Output, colour temperature, control gear and emergency options vary by configuration.
What controls and emergency options can be specified?
Controls: DALI and wireless control options. Confirm compatibility before quotation.
Can finishes, accessories or product variations be specified?
Finish: White as standard with black option. Accessories / designations: Portrait, landscape, blade and irregular designations listed in source facts. Confirm final availability against the live project quantity and finish requirement.
Are photometric, BIM or installation files available?
Available resources include the datasheet, technical information and declaration for product selection and specification support.
What lead time should be allowed for Shaper Track?
Lead time depends on quantity, finish, control gear, emergency conversion and current production capacity. Confirm the current project lead time with Lumenloop before placing an order.
