DOWNLIGHTS IP65 fire rated LED downlight

ProTechIP65 fire rated LED downlight

ProTech.
IP65 fire rated LED downlight.

Protec is an IP65 fire rated LED downlight for considered commercial lighting schemes. Its source-backed range includes IP65 FR90 LED downlight and Compact fire-rated commercial luminaire.

Output: 700–925 lm
Colour temperature: 3000K / 4000K model dependent
Options: 7 listed controls and accessories

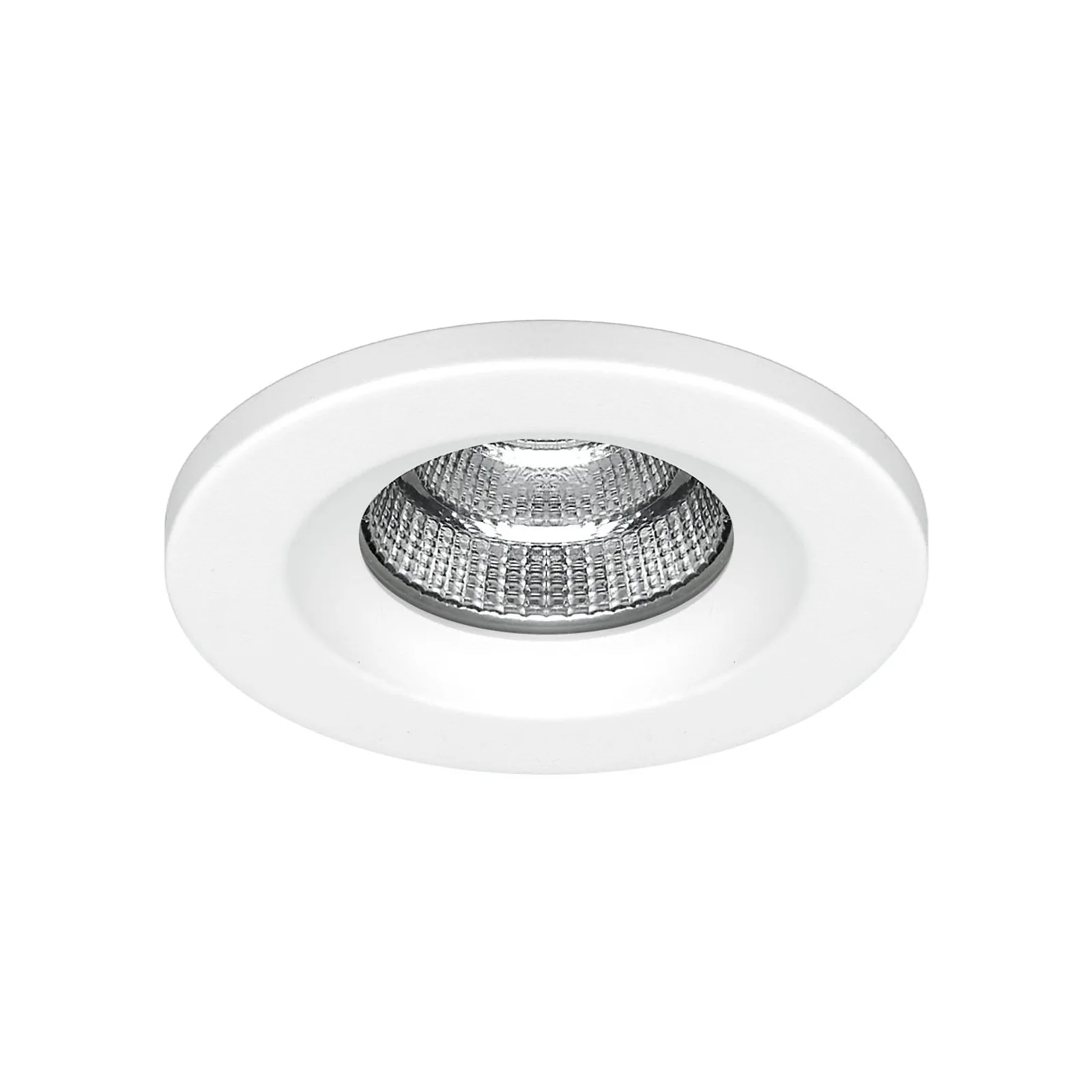

ProTech IP65 protected LED downlight on a high-resolution white background

01 / 06

Downlightscommercialfire rated downlight · IP65 downlight

Output: 700–925 lm
CCT: 3000K / 4000K
Options: 7 listed

Model codesPROTEC.001700 lm · 3000K PROTEC.002725 lm · 4000K

Output700–725 lm

Colour temperature3000K / 4000K

ControlsDALI, SwitchDIM, DSI, Casambi

Ceiling cut-out73 mm

Product configurator

Configure your ProTech

Choose the ProTech model first, then add only the control, optic, emergency, finish or mounting options required for the project.

Emergency remote indicators are not IP65 or fire rated. Fire-rating coverage applies to the tested load-bearing timber floor construction with softwood timber joists.

LuminaireProduct family

IP65 fire rated LED downlightThe ProTech IP65 FR90 LED Downlight is a compact fire-rated commercial luminaire. With its fire-rated capabilities, this downlight is suitable for a variety of applications, subject to the tested installation construction and project requirements

Output and CCT4 price-listed model choices

Bezel arrangementChoose one bezel arrangement

ControlsAvailable controls

EmergencyAvailable emergency

QuantityNumber of fittings

fittingsAdded to the quotation email

Technical filesProduct and design information

Datasheet Installation guide Photometric data BIM file

At a glance

ProTech IP65 fire rated LED downlight quick specification.

Check the installation, output, colour temperature and control information for this IP65 fire rated LED downlight before reviewing the full model schedule.

Configure ProTech Request pricing

Technical referenceNot to scale

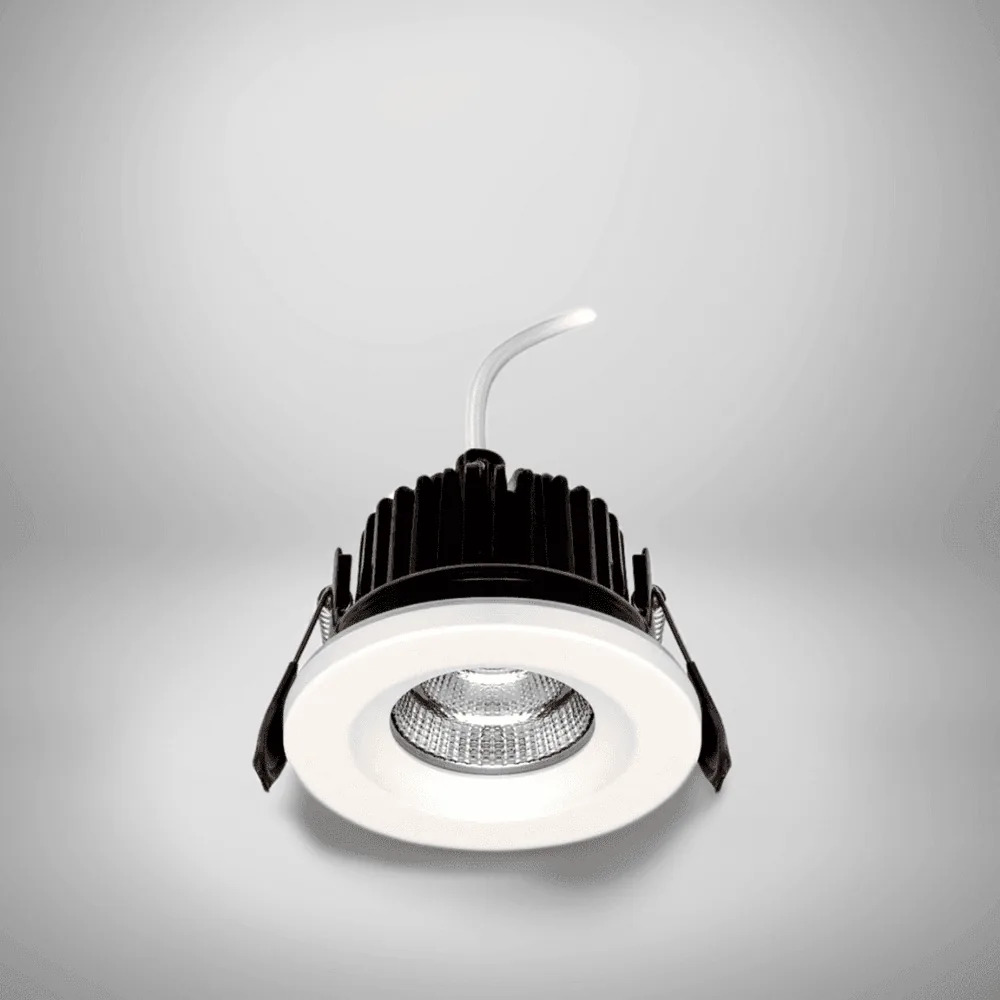

ProTechProduct geometry and mounting reference

Key specificationSpecification summary

01Ceiling cut-out: 73 mm
02Bezel: 85 mm
03Output: 700–925 lm
04CCT: 3000K / 4000K

Product files

Download ProTech technical files.

Available files for this exact product are listed below.

DatasheetPDF download Installation guidePDF download Photometric dataZIP download BIM fileZIP download

Polar luminous intensity149.001-new-150mA.ldt · product-specific LDT data

C0/C180 distribution from source LDT valuesIntensity · cd/klm

Technical description

IP65 fire rated LED downlight specification for ProTech.

Protec's technical information also covers Built for building-regulation compliance. This allows the product to be matched to the intended mounting, output and control requirements without extending the published specification. For an office scheme, compare mounting and glare requirements across our office lighting range.

ProTech construction and mounting

For fire rated downlight specifications, compare the model codes, outputs and available options below.

Rated life needs confirmation.

Finish is White.

Output, optics and colour temperature

ProTech output is 700–725 lm.

Colour temperature options are 3000K / 4000K.

Controls, emergency and project options

Control options include DALI / SwitchDIM / DSI, Casambi wireless.

Emergency options include 3-hour emergency, Self-test / DALI emergency.

Output700–925 lm

System power7.5–9 W

Colour temperature3000K / 4000K

FinishWhite

ControlsDALI, SwitchDIM, DSI, Casambi

EmergencyThree-hour emergency, Self-test emergency, DALI emergency

Download ProTech datasheet Configure ProTech

See the Lumenloop commercial downlights range for related mounting, output and optic options.

Product typeIP65 fire rated LED downlight

Model codesPROTEC.001, PROTEC.002, PROTEC.003, PROTEC.004

Output700–925 lm

System power7.5–9 W

Colour temperature3000K / 4000K

FinishWhite

ControlsDALI, SwitchDIM, DSI, Casambi

EmergencyThree-hour emergency, Self-test emergency, DALI emergency

Models, options and accessories

ProTech model codes and specification options.

Choose the ProTech base model, then review the available controls, emergency arrangements, optics and accessories.

Model codes4 listed configurations

2 model configurations are shown with their output, CCT, power and finish information where available.

700 lm · 3000KPROTEC.001

700 lm / 3000K / 7.5 W

725 lm · 4000KPROTEC.002

725 lm / 4000K / 7.5 W

875 lm · 3000KPROTEC.003

875 lm / 3000K / 9 W

925 lm · 4000KPROTEC.004

925 lm / 4000K / 9 W

Options and accessories

Configure the available ProTech options.

Review the available controls, emergency arrangements, sensors, mounting accessories and custom configurations for the selected luminaire.

Additional ProTech options and accessoriesProduct images and specification choices

Controls/ECO

Specification dimming and control gear

Controls/BTC

Casambi Bluetooth wireless control

Emergency/EM

3-hour emergency conversion

Emergency/EMD

Self-test or DALI emergency conversion

Controls/MDIM

Mains dimming option.

AccessoriesTA149/BA

Accessory shown in the data sheet.

AccessoriesTA149/BL

Accessory shown in the data sheet.

Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.

Configure these options Request a quote

Why ProTech

Why specify this IP65 fire rated LED downlight?

The ProTech IP65 FR90 LED Downlight is a compact fire-rated commercial luminaire. With its fire-rated capabilities, this downlight is suitable for a variety of applications, subject to the tested installation construction and project requirements

Four price-listed models provide700–925lm at7.5–9W, with3000K and4000K choices.

ProTech options kept clear for project specification

Base model, control, emergency and accessory decisions remain visibly separate in the configurator.

This keeps the fitting code readable while retaining the breadth of the current product range.

commercial

ProTech is available for projects requiring commercial lighting.

hospitality

ProTech is available for projects requiring hospitality lighting.

residential

ProTech is available for projects requiring residential lighting.

retail

ProTech is available for projects requiring retail lighting.

Output700–925 lm4 listed models

CCT3000K / 4000KModel dependent

Options7Controls and accessories

Typical applicationsWhere ProTech is specified

Downlights

Use ProTech where downlights lighting is required.

Commercial interiors

Compare ProTech with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.

Build your ProTech Specification support

Specification questions

ProTech details worth checking.

Direct answers for consultants, contractors and commercial lighting buyers.

Configure ProTech Ask about ProTech

Which ProTech model codes are available?

4 configurations are listed: PROTEC.001, PROTEC.002, PROTEC.003, PROTEC.004.

Which outputs and colour temperatures are available?

Models cover 700–925 lm and 7.5–9 W. See the model schedule for individual output, power and CCT.

Which control options can be specified?

Control options include DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.

Which emergency options are available?

Emergency options include Three-hour emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.

What ceiling cut-out does ProTech require?

The ProTech requires a 73 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.

How do I request a quotation?

Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.

Is the ProTech datasheet available?

Yes. The ProTech datasheet is linked in the hero, configurator and technical section.

What is the standard lead time for ProTech?

Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.

Product quotation

Request a quotation for ProTech.

Send the selected code, quantity and any mounting, control, emergency or finish requirements. Your configurator choices are carried into the form automatically.

Configuration retainedThe product code and quantity update as you configure the fitting.

Useful project detailAdd the application, required date and any option requirements you already know.

Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.

Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
