Output1,000–4,125 lm

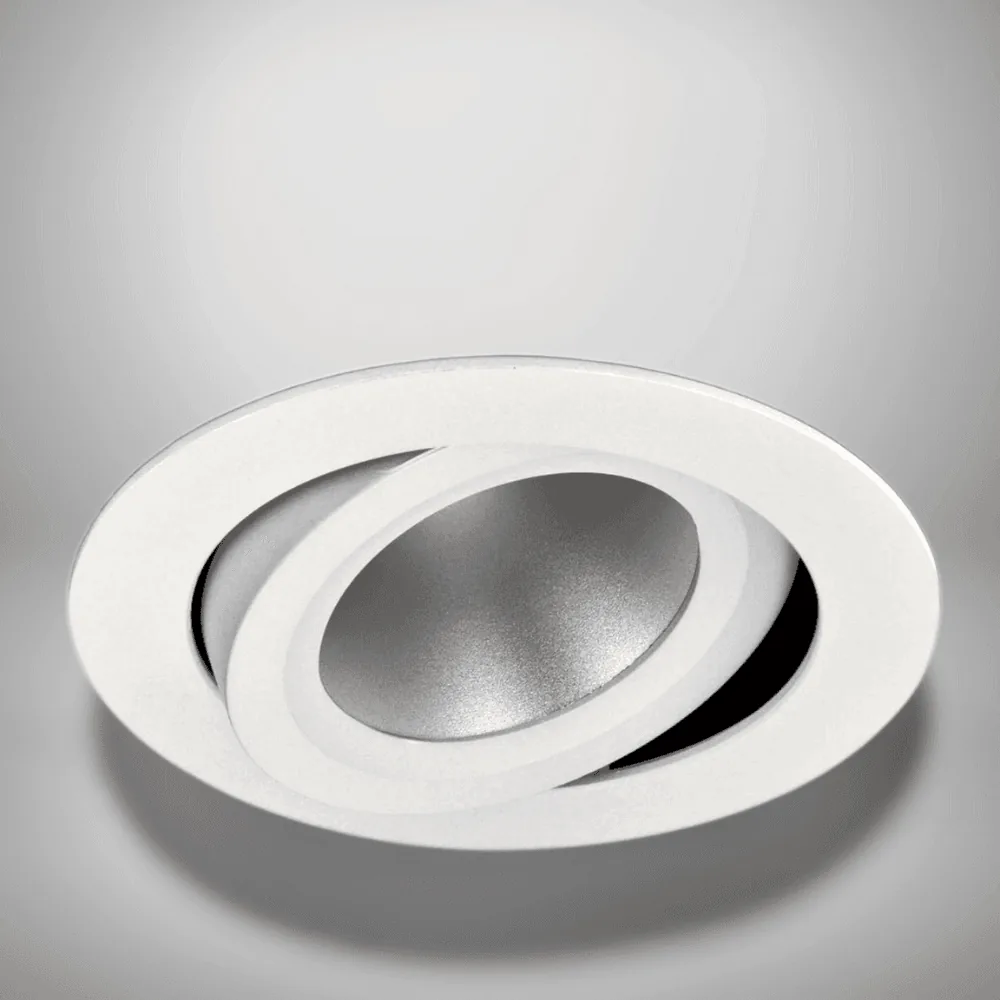

ADJUSTABLE LED gimbal downlight
Pivotadjustable reflector LED downlight
Aim the source.
Select the distribution.
Pivot is an adjustable reflector LED downlight for considered commercial lighting schemes. Its source-backed range includes 40 degree multi-faceted reflector as standard and Precise light control and uniform distribution.
- Output
- 1,000–4,125 lm
- Reflectors
- 5 distributions standard and optional
- Warranty
- 5 years published product record
01 / 05
OutputSee model schedule
System powerSee model schedule
Body height102 mm
Ceiling cut-outØ 176 mm
Product configurator
Configure your Pivot
Choose the output and CCT, then add only the finish, reflector, driver, control and emergency suffixes required.
Contact us for availability and pricing for PIVOT.009, PIVOT.010. Emergency options use remote or integral indicators; /EMS and /EMSI are self-test, /EMD and /EMDI are DALI. Contact us for availability and pricing for the self-test options. Mains dimming and extended-life driver options are listed separately in the current price list; confirm the driver arrangement with your quotation. /R9 high colour rendering is available on enquiry; confirm its price and performance.
LuminaireProduct family
Adjustable LED gimbal downlightTridonic LED module and driver platform, 102 mm body height and five verified reflector distributions.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Pivot adjustable LED gimbal downlight specification.
Review the aperture, output, power, colour temperature and control information before choosing a model.
Technical referenceNot to scale
Key specificationSpecification summary
- 01Ceiling cut-out
- Ø 176 mm
- 02Bezel
- Ø 186 mm
- 03Output
- 1,000–4,125 lm
- 04System power
- 8–34 W
- 05CCT
- 3000K / 4000K
- 06Reflectors
- 5 distributions
Product files
Download Pivot technical files.
Available files for this exact product are listed below.
C0 plane distributionIntensity · cd/klm
Technical description
Adjustable reflector LED downlight specification for Pivot.
Pivot's technical information also covers Optional satin and specular reflectors. This allows the product to be matched to the intended mounting, output and control requirements without extending the published specification.
Body, aperture and aiming
The fitting has a Ø 186 mm bezel, Ø 176 mm ceiling cut-out and 102 mm body height. It extends up to 35 mm below the ceiling.
The gimbal format allows the light to be aimed after installation.
Output, power and reflectors
Pivot adjustable LED gimbal downlight. Output: 1,000–4,125 lm; system power: 8–34 W. Colour temperature: 3000K / 4000K.
A 40° multifaceted reflector is standard. /MF25, /MF60, /SP40 and /SA50 provide four alternative distributions.
Controls, emergency and accessories
/ECO covers SwitchDIM, DALI or DSI control gear. /BTC provides Casambi Bluetooth wireless control including dimming.
Remote- and integral-indicator emergency arrangements are separate. /TOP provides the 100K-hour Tridonic Excite driver, while TA210/BLACK and TA241 are listed accessories.
System power8–34 W
Reflectors5 distributions
Body height102 mm
Controls/ECO / /BTC
EmergencyRemote / integral indicator
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeAdjustable LED gimbal downlight
Model codesPIVOT.001, PIVOT.002, PIVOT.003, PIVOT.004, PIVOT.005, PIVOT.006, PIVOT.007, PIVOT.008, PIVOT.009, PIVOT.010
Output1,000–4,125 lm
System power8–34 W
Colour temperature3000K / 4000K
BezelØ 186 mm
Ceiling cut-outØ 176 mm
Body height102 mm
Below ceiling35 mm maximum
Standard reflector40° multifaceted
Optional reflectors/MF25, /MF60, /SP40, /SA50
Finish option/BK black
Extended-life driver/TOP Tridonic Excite, 100K hours
Controls/ECO SwitchDIM, DALI or DSI; /BTC Casambi
Emergency/EM, /EMD, /EMI, /EMDI
AccessoriesTA210/BLACK, TA241
Warranty5 years
Models, options and accessories
Pivot model codes and specification options.
Choose one of the eight exact output and CCT models, then add only the required suffixes.
Model codes10 listed configurations
Output, colour temperature and power are shown for each model.
1,000 lm / 3000K / 8 W
1,050 lm / 4000K / 8 W
1,700 lm / 3000K / 13 W
1,775 lm / 4000K / 13 W
2,375 lm / 3000K / 19 W
2,450 lm / 4000K / 19 W
3,200 lm / 3000K / 26 W
3,325 lm / 4000K / 26 W
4,000 lm / 3000K / 34 W
4,125 lm / 4000K / 34 W
Additional Pivot options and accessoriesPublished product choices
Finish/BK
Black
Reflector/MF25
25° multifaceted
Reflector/MF60
60° multifaceted
Reflector/SP40
40° specular
Reflector/SA50
50° satin
Driver/TOP
Tridonic Excite driver, 100K hours
Controls/ECO
SwitchDIM, DALI or DSI
Controls/BTC
Casambi Bluetooth wireless network including dimming
Emergency/EM
3h conversion with remote indicator
Emergency/EMD
3h DALI emergency with remote indicator
Emergency/EMI
3h conversion with integral indicator
Emergency/EMDI
3h DALI emergency with integral indicator
AccessoryTA210/BLACK
Frosted vertical halo
AccessoryTA241
Centre etched glass
TA210/BLACK and TA241 are accessories rather than product-code suffixes, so add them to the quotation requirements separately.
Why Pivot
Why specify Pivot?
Pivot combines eight exact output and colour-temperature models with an adjustable gimbal and five reflector distributions.
The Tridonic LED module and driver platform, compact 102 mm body height and five-year warranty form the core specification.
Optical and control choices kept separate
Multifaceted, specular and satin reflectors remain distinct from the /ECO wired-control and /BTC Casambi wireless-control options.
Emergency conversions, black finish, extended-life driver and accessories can then be added as separate requirements.
Adjustable gimbal
Directional recessed format.
Five reflectors
Verified distinct distributions.
Tridonic system
LED module and driver platform.
5-year warranty
Published product warranty.
Output1,000–4,125 lm10 listed models
Power8–34 WFour packages
Reflectors5Standard and optional
Specification checksBefore ordering Pivot
Ceiling aperture
Confirm the Ø 176 mm cut-out, 102 mm body height and 35 mm maximum projection below the ceiling.
Reflector
Select the required distribution separately from the output and CCT model.
Control method
Keep /ECO wired controls separate from /BTC Casambi wireless control.
Compare Pivot with the wider commercial downlight range when reviewing aperture, output and optical requirements.
adjustable LED downlight
AeroLux
Adjustable LED downlight. Review the model schedule and compatible options.
Compare product →
recessed commercial downlight
Clarity
Recessed commercial downlight. Review the model schedule and compatible options.
Compare product →
adjustable high-CRI LED downlight
Flexi
Adjustable high-CRI LED downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Pivot details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
10 configurations are listed: PIVOT.001, PIVOT.002, PIVOT.003, PIVOT.004, PIVOT.005, PIVOT.006, PIVOT.007, PIVOT.008, PIVOT.009, PIVOT.010.
Models cover 1,000–4,125 lm and 8–34 W. See the model schedule for individual output, power and CCT.
A 40 degree multifaceted reflector is standard. The published alternatives are /MF25, /MF60, /SP40 and /SA50.
/ECO covers SwitchDIM, DALI or DSI control gear. /BTC provides Casambi Bluetooth wireless control including dimming.
/EM and /EMD use remote indicators; /EMI and /EMDI use integral indicators. /EMD and /EMDI provide DALI emergency; /EMS and /EMSI provide self-test emergency.
Pivot requires a Ø 176 mm ceiling cut-out. The bezel is Ø 186 mm, body height is 102 mm and the fitting extends up to 35 mm below the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
Product quotation
Request a quotation for Pivot.
Send the selected code, quantity and any reflector, control, emergency, finish or accessory requirements. Your configurator choices are carried into the form automatically.
Configuration retainedThe product code and quantity update as you configure the fitting.
Useful project detailAdd the application, required date and any option requirements you already know.
Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.
Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
