Ceiling cut-outØ 176 mm

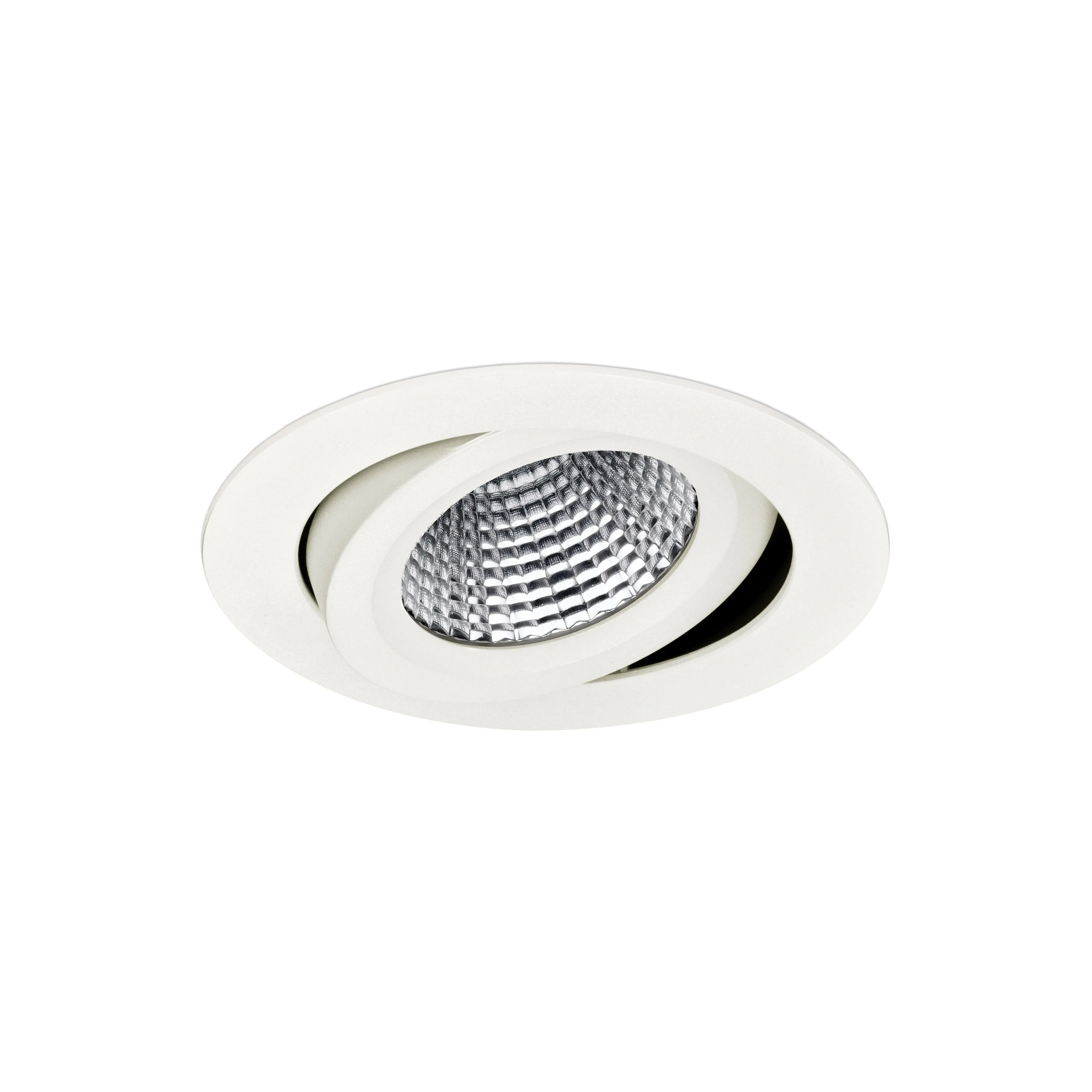

ADJUSTABLE LED gimbal downlight
Pivotadjustable reflector LED downlight
Aim the source.
Select the distribution.
Pivot is an adjustable reflector LED downlight with a 40-degree multi-faceted reflector as standard, the Pivot ensures precise light control and uniform distribution. Additional options include satin and specular reflectors for different lighting effects.
- Output
- 1,025–3,275 lm 8 model codes
- Reflectors
- 5 distributions standard and optional
- Warranty
- 5 years published product record
01 / 05
Output1,025–3,275 lm
System power8 / 14 / 19 / 28 W
Body height102 mm
Ceiling cut-outØ 176 mm
Product configurator
Configure your Pivot
Choose the output and CCT, then add only the finish, reflector, driver, control and emergency suffixes required.
LuminaireProduct family
Adjustable LED gimbal downlightTridonic LED module and driver platform, 102 mm body height and five verified reflector distributions.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Pivot adjustable LED gimbal downlight specification.
Review the aperture, output, power, colour temperature and control information before choosing a model.
BezelØ 186 mm
Output1,025–3,275 lm
System power8 / 14 / 19 / 28 W
CCT3000K / 4000K
Reflectors5 distributions
Product files
Download Pivot technical files.
Available files for this exact product are listed below.
C0 plane distributionIntensity · cd/klm
Technical description
Adjustable gimbal control with five reflector distributions.
Pivot combines an adjustable recessed gimbal with a Tridonic LED module and driver platform for accent and general ambient lighting.
Body, aperture and aiming
The fitting has a Ø 186 mm bezel, Ø 176 mm ceiling cut-out and 102 mm body height. It extends up to 35 mm below the ceiling.
The gimbal format allows the light to be aimed after installation.
Output, power and reflectors
Eight paired 3000K and 4000K models cover 1,025–3,275 lm at 8 W, 14 W, 19 W and 28 W.
A 40° multifaceted reflector is standard. /MF25, /MF60, /SP40 and /SA50 provide four alternative distributions.
Controls, emergency and accessories
/ECO covers SwitchDIM, DALI or DSI control gear. /BTC provides Casambi Bluetooth wireless control including dimming.
Remote- and integral-indicator emergency arrangements are separate. /TOP provides the 100K-hour Tridonic Excite driver, while TA210/BLACK and TA241 are listed accessories.
Output1,025–3,275 lm
System power8 / 14 / 19 / 28 W
Reflectors5 distributions
Body height102 mm
Controls/ECO / /BTC
EmergencyRemote / integral indicator
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeAdjustable LED gimbal downlight
Model codesPIVOT.001, PIVOT.002, PIVOT.003, PIVOT.004, PIVOT.005, PIVOT.006, PIVOT.007, PIVOT.008
Output1,025–3,275 lm
System power8 W / 14 W / 19 W / 28 W
Colour temperature3000K / 4000K
BezelØ 186 mm
Ceiling cut-outØ 176 mm
Body height102 mm
Below ceiling35 mm maximum
Standard reflector40° multifaceted
Optional reflectors/MF25, /MF60, /SP40, /SA50
Finish option/BK black
Extended-life driver/TOP Tridonic Excite, 100K hours
Controls/ECO SwitchDIM, DALI or DSI; /BTC Casambi
Emergency/EM, /EMD, /EMI, /EMDI
AccessoriesTA210/BLACK, TA241
Warranty5 years
Models, options and accessories
Pivot model codes and specification options.
Choose one of the eight exact output and CCT models, then add only the required suffixes.
Model codes8 listed configurations
Each card is one complete Pivot model code with its published output, CCT and power.
1,025 lm8 W
1,075 lm8 W
1,725 lm14 W
1,800 lm14 W
2,375 lm19 W
2,450 lm19 W
3,150 lm28 W
3,275 lm28 W
Additional Pivot options and accessoriesPublished product choices
Finish/BK
Black
Reflector/MF25
25° multifaceted
Reflector/MF60
60° multifaceted

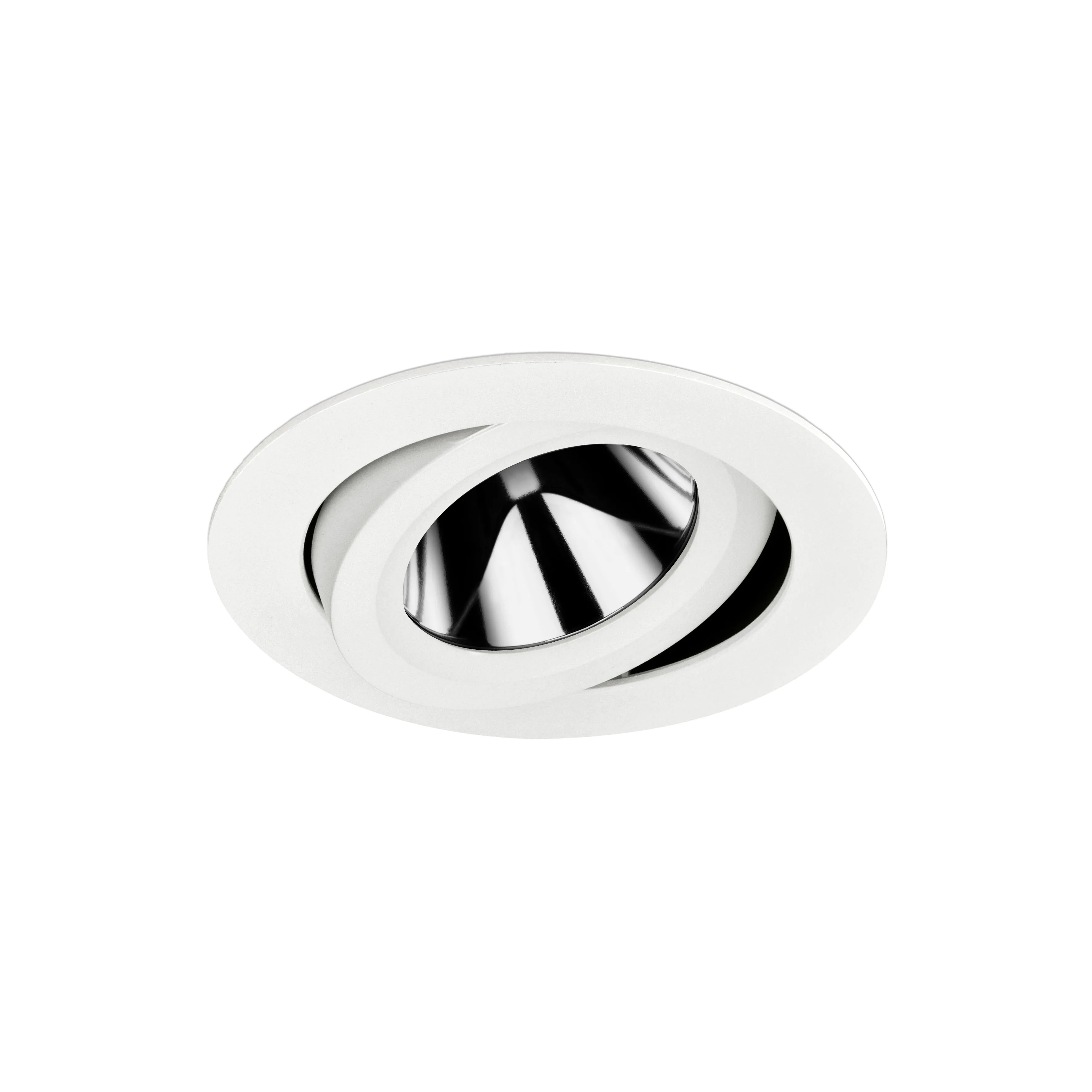

Reflector/SP40
40° specular
Reflector/SA50
50° satin
Driver/TOP
Tridonic Excite driver, 100K hours
Controls/ECO
SwitchDIM, DALI or DSI
Controls/BTC
Casambi Bluetooth wireless network including dimming
Emergency/EM
3h conversion with remote indicator
Emergency/EMD
3h DALI / self-test with remote indicator
Emergency/EMI
3h conversion with integral indicator
Emergency/EMDI
3h DALI / self-test with integral indicator
AccessoryTA210/BLACK
Frosted vertical halo
AccessoryTA241
Centre etched glass
TA210/BLACK and TA241 are accessories rather than product-code suffixes, so add them to the quotation requirements separately.
Why Pivot
Why specify Pivot?
Pivot combines eight exact output and colour-temperature models with an adjustable gimbal and five reflector distributions.
The Tridonic LED module and driver platform, compact 102 mm body height and five-year warranty form the core specification.
Optical and control choices kept separate
Multifaceted, specular and satin reflectors remain distinct from the /ECO wired-control and /BTC Casambi wireless-control options.
Emergency conversions, black finish, extended-life driver and accessories can then be added as separate requirements.
Adjustable gimbal
Directional recessed format.
Five reflectors
Verified distinct distributions.
Tridonic system
LED module and driver platform.
5-year warranty
Published product warranty.
Output1,025–3,275 lm8 listed models
Power8–28 WFour packages
Reflectors5Standard and optional
Specification checksBefore ordering Pivot
Ceiling aperture
Confirm the Ø 176 mm cut-out, 102 mm body height and 35 mm maximum projection below the ceiling.
Reflector
Select the required distribution separately from the output and CCT model.
Control method
Keep /ECO wired controls separate from /BTC Casambi wireless control.
Compare Pivot with the wider commercial downlight range when reviewing aperture, output and optical requirements.
adjustable LED downlight
AeroLux
AeroLux is an adjustable LED downlight with a 36 degree faceted reflector, low-profile die-cast bezel, 3000K or 4000K model codes, and DALI, Casambi and emergency options for architectural, retail and hospitality interiors.
Compare product →
recessed commercial downlight

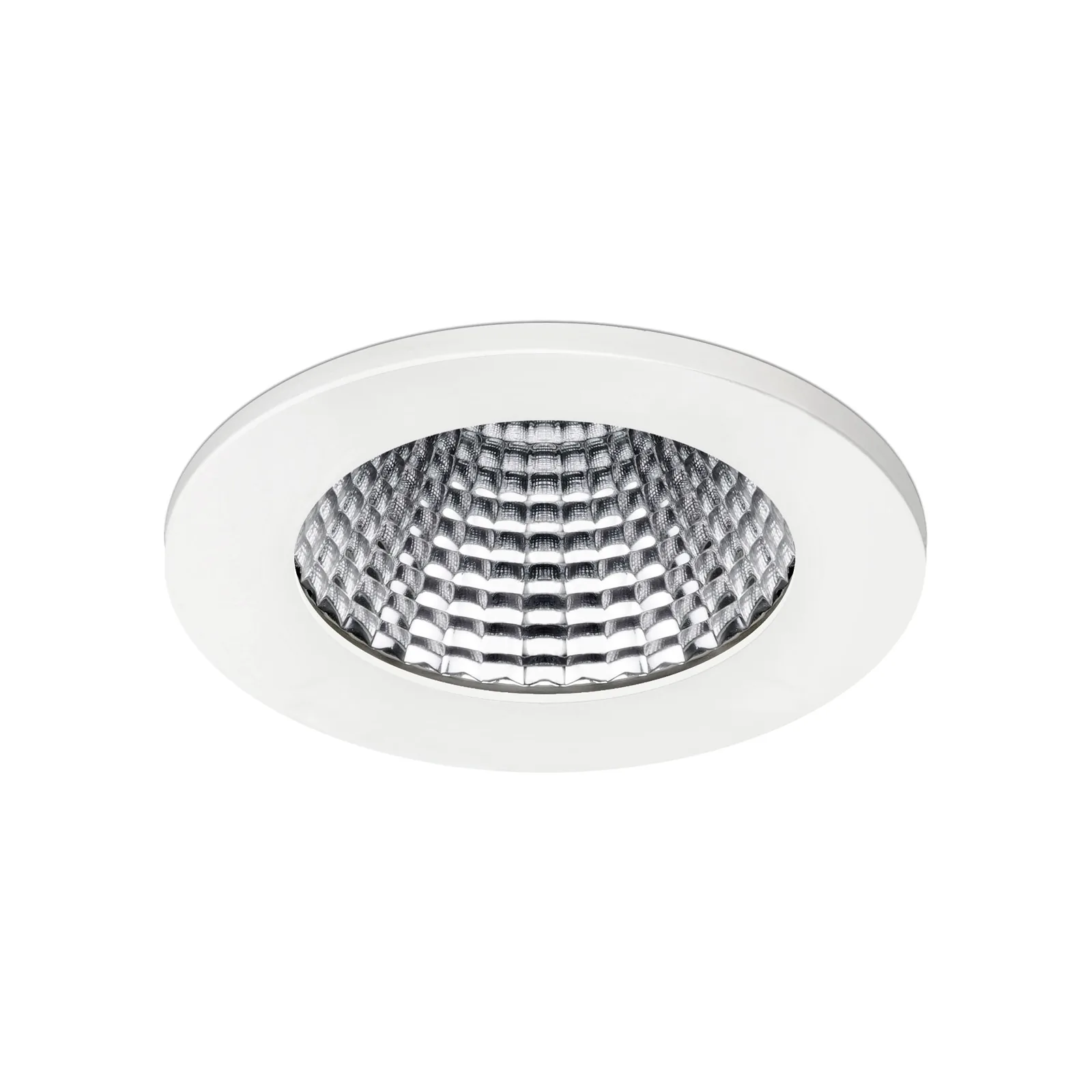

Clarity
Clarity is a recessed commercial downlight for easy installation and offers a range of interchangeable accessories for flexible customization.
Compare product →
adjustable high-CRI LED downlight
Flexi
Flexi is an adjustable high-CRI LED downlight with Philips technology, Ra90 colour accuracy, adjustable beam control, DALI, Casambi wireless and emergency options for office, retail and heritage interiors.
Compare product →Specification questions
Pivot details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
Eight configurations are listed: PIVOT.001 to PIVOT.008, with one output, CCT and power combination for each code.
Pivot covers 1,025–3,275 lm in paired 3000K and 4000K models at 8 W, 14 W, 19 W and 28 W.
A 40 degree multifaceted reflector is standard. The published alternatives are /MF25, /MF60, /SP40 and /SA50.
/ECO covers SwitchDIM, DALI or DSI control gear. /BTC provides Casambi Bluetooth wireless control including dimming.
/EM and /EMD use remote indicators; /EMI and /EMDI use integral indicators. The D variants include DALI and self-test emergency conversion.
Pivot requires a Ø 176 mm ceiling cut-out. The bezel is Ø 186 mm, body height is 102 mm and the fitting extends up to 35 mm below the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
Product quotation
Request a quotation for Pivot.
Send the selected code, quantity and any reflector, control, emergency, finish or accessory requirements. Your configurator choices are carried into the form automatically.
Configuration retainedThe product code and quantity update as you configure the fitting.
Useful project detailAdd the application, required date and any option requirements you already know.
Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.
Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
