Output220 lm total
EMERGENCY LIGHTING twin spot emergency light
High-Intensity Emergency Twin Spottwin spot emergency light
High-Intensity Emergency Twin Spot.
twin spot emergency light.

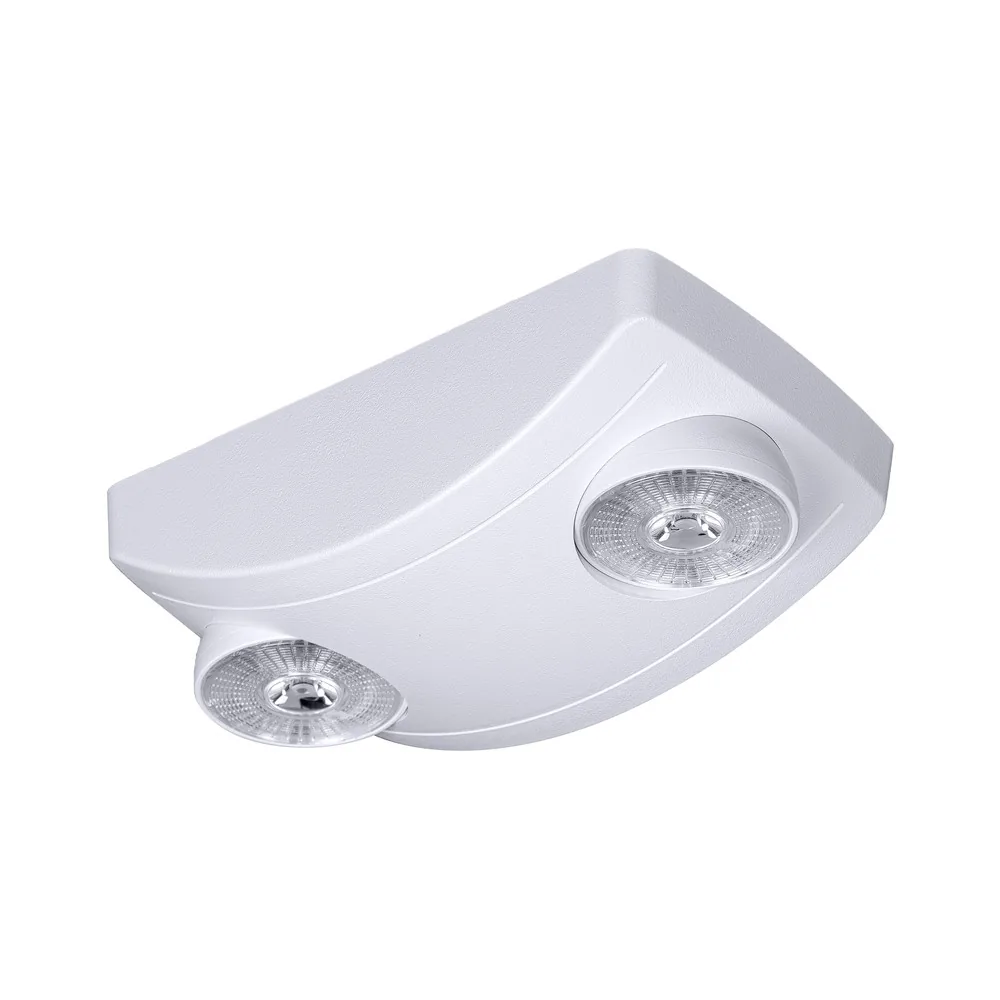

High-Intensity Emergency Twin Spot is a twin spot emergency light for wall or surface mounting. Specification details include 2 x 110 lm output, 3 hour duration, wide beam lens option, EN60598.2.22 compliance and integral NiMH batteries.
- Output
- 220 lm total
- Colour temperature
- 5000K nominal model dependent
- Options
- 1 optical choice controls and accessories
01 / 01
Output2 × 110 lm
Colour temperature5000K nominal
ControlsFixed output
Configuration1 optical choice
Product configurator
Configure your High-Intensity Emergency Twin Spot
Choose the model and quantity. The wide-beam lens is a separate option whose Complete wide-beam variant available as /WB.
LuminaireProduct family
twin spot emergency lightHigh-Intensity Emergency Twin Spot is an independently adjustable twin-head LED emergency luminaire for wall or surface mounting. Specification details include 2 × 110 lm output, 3 hour duration, wide beam lens option, EN60598.2.22 compliance and integral NiMH batteries.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
High-Intensity Emergency Twin Spot twin spot emergency light quick specification.
Check the installation, output, colour temperature and control information for this twin spot emergency light before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationSpecification summary
- 01Output
- 220 lm total
- 02Controls
- Fixed output
- 03Emergency
- Emergency conversion
- 04Product type
- twin spot emergency light
- 05Key feature
- Independent twin-head emergency luminaire
- 06Optics
- Wide-beam lenses, EN 60598-2-22 compliance and NiMH battery are stated
Product files
Download High-Intensity Emergency Twin Spot technical files.
Available files for this exact product are listed below.
C0 solid · C90 dashedIntensity · cd/klm
Technical description
Twin-head emergency luminaire specification for High-Intensity Emergency Twin Spot.
High-Intensity Emergency Twin Spot is an independently adjustable twin-head LED emergency luminaire for wall or surface mounting. Product information lists 2 × 110 lm output, 3-hour duration, a wide beam lens option, EN60598.2.22 compliance and integral NiMH batteries.
Output, optics and colour temperature
Wide-beam lenses, EN 60598-2-22 compliance and NiMH battery are stated.
Controls, emergency and project options
For emergency twin spot specifications, compare the model codes, outputs and available options below.
The listed construction is a polycarbonate body and lenses with a twin-head emergency format suited to wall-mounted or surface-mounted installations where adjustable emergency light direction is required.
High-Intensity Emergency Twin Spot output is 2 × 110 lm.
System powerModel-dependent; see schedule
Colour temperature5000K nominal
FinishSee datasheet
ControlsFixed output
EmergencyEmergency conversion
See the Lumenloop emergency lighting range for related mounting, output and optic options.
Product typetwin spot emergency light
Model codesHIGHINTENSITYEMERGENCYTWINSPOT.001
Output220 lm total
System powerModel-dependent; see schedule
Colour temperature5000K nominal
FinishSee datasheet
ControlsFixed output
EmergencyEmergency conversion
Why High-Intensity Emergency Twin Spot
Why specify this twin spot emergency light?
High-Intensity Emergency Twin Spot is an independently adjustable twin-head LED emergency luminaire for wall or surface mounting. Specification details include 2 × 110 lm output, 3 hour duration, wide beam lens option, EN60598.2.22 compliance and integral NiMH batteries.
The twin adjustable heads provide 2 × 110 lm emergency output, with standard and wide-beam photometric distributions available.
High-Intensity Emergency Twin Spot options kept clear for project specification
Select the standard model or the /WB wide-beam alternative. The photometric preview identifies the measured laboratory source separately from the nominal datasheet specification.
This keeps the fitting code readable while retaining the breadth of the current product range.
commercial
High-Intensity Emergency Twin Spot is available for projects requiring commercial lighting.
emergency
High-Intensity Emergency Twin Spot is available for projects requiring emergency lighting.
wall mounted
High-Intensity Emergency Twin Spot is available for projects requiring wall mounted lighting.
twin spot
High-Intensity Emergency Twin Spot is available for projects requiring twin spot lighting.
Output220 lm total1 listed model
CCT5000K nominalModel dependent
Optics2 distributionsStandard and wide-beam LDT files
Typical applicationsWhere High-Intensity Emergency Twin Spot is specified
Emergency Lighting
Use High-Intensity Emergency Twin Spot where independently adjustable emergency illumination is required.
Wall Mounted
Use High-Intensity Emergency Twin Spot where wall mounted lighting is required.
Commercial interiors
High-Intensity Emergency Twin Spot is an independently adjustable twin-head LED emergency luminaire for wall or surface mounting. Specification details include 2 × 110 lm output, 3 hour duration, wide beam lens option, EN60598.2.22 compliance and integral NiMH batteries.
Compare High-Intensity Emergency Twin Spot with the wider emergency lighting when reviewing output, optics, mounting, controls and emergency requirements.
twin head emergency light

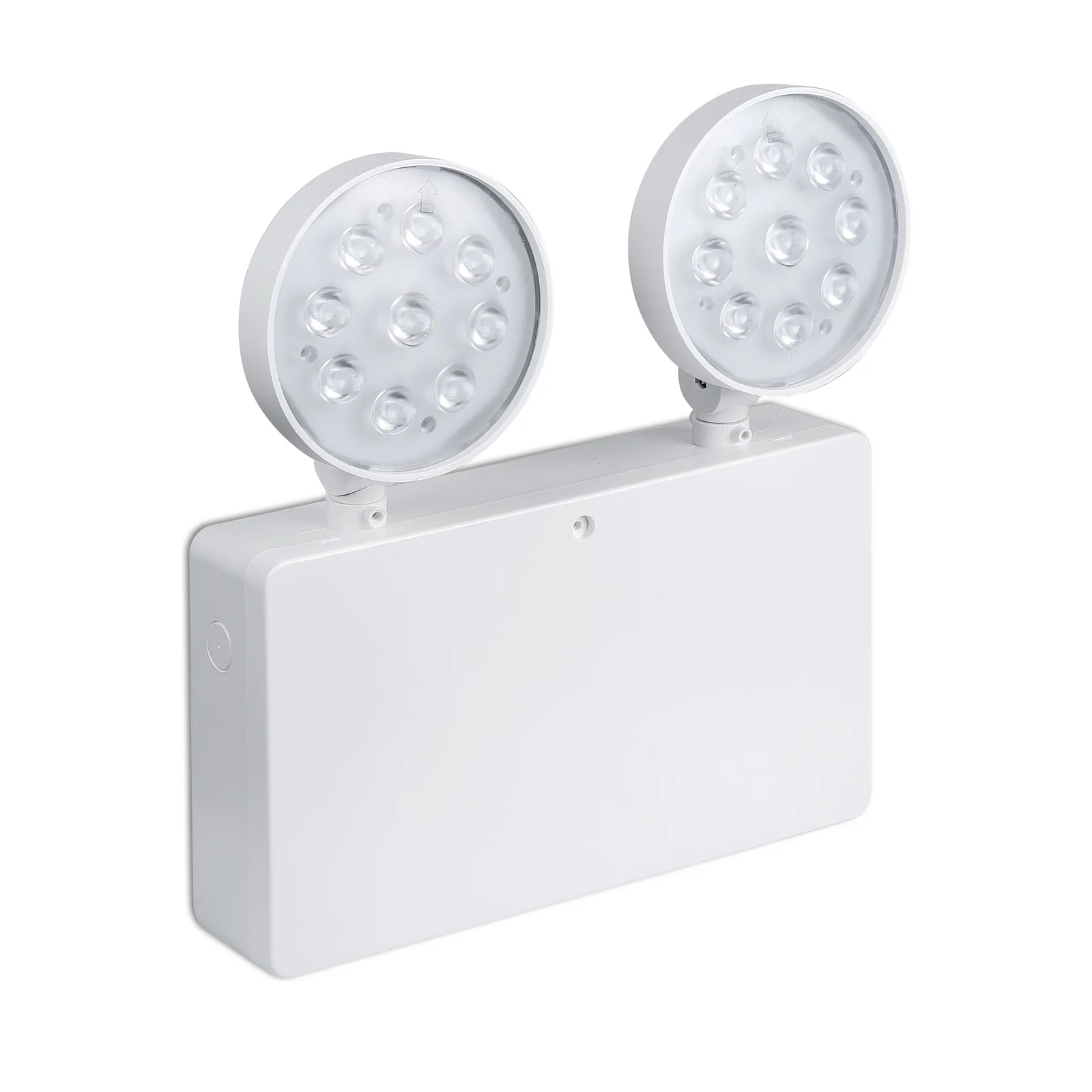

Twin Emergency Projector
Twin head emergency light. Review the model schedule and compatible options.
Compare product →
IP54 three-hour emergency module
Beacon Emergency
IP54 three-hour emergency module. Review the model schedule and compatible options.
Compare product →
IP65 maintained emergency bulkhead
Bright Emergency Bulkhead
IP65 maintained emergency bulkhead. Review the model schedule and compatible options.
Compare product →Specification questions
High-Intensity Emergency Twin Spot details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
1 configuration is listed: HIGHINTENSITYEMERGENCYTWINSPOT.001.
The product family covers 2 × 110 lm. Colour-temperature choices are 5000K nominal.
Fixed-output operation is listed for this product.
Emergency options include Emergency conversion. Select the emergency requirement separately from the base model and normal control method.

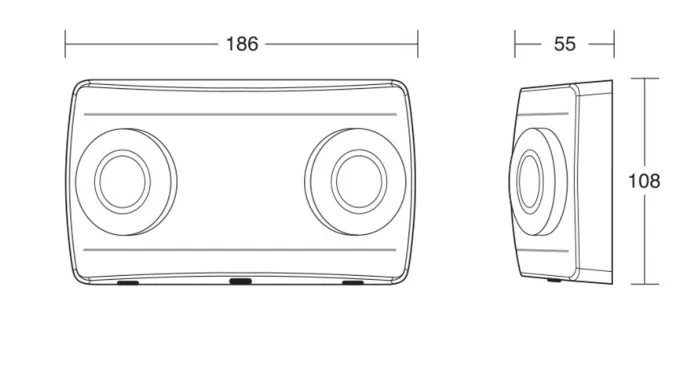

The luminaire is 186 mm wide × 108 mm high × 55 mm deep. Nominal system power is 4 W total (2 × 2 W), with 220 lm total output at 5000K. The current datasheet does not publish an IP rating.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The High-Intensity Emergency Twin Spot datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
