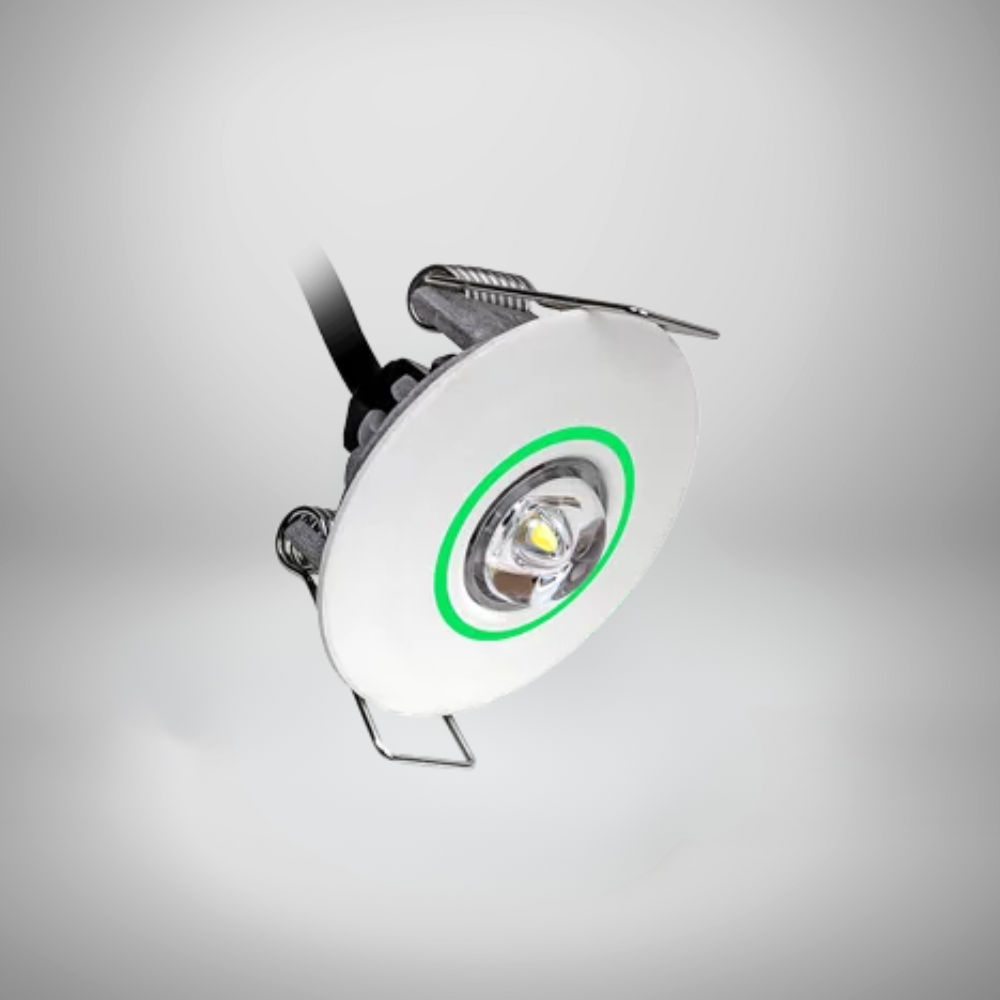

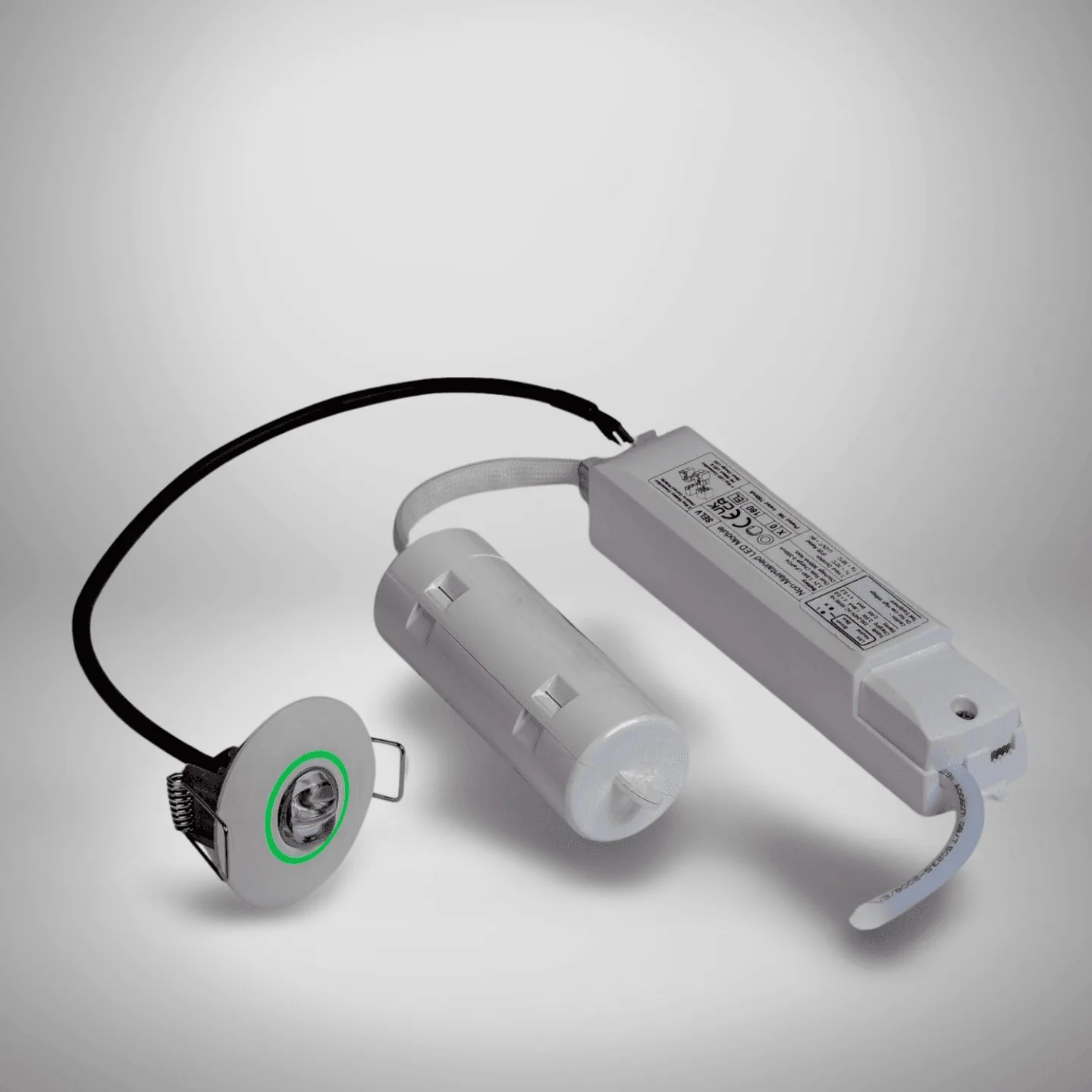

The Beacon Emergency is an independent LED emergency module designed for versatile applications.
It features a bi-colour circlet charge indicator, IP54 ingress protection, and provides a 3-hour emergency duration.
Available with open area (OA) or corridor (CO) optics, and in white (RAL9016) or black (RAL9005) finishes, it also offers self-test and DALI options for enhanced functionality.
📄 Bim File
The Beacon Emergency is a robust, stand-alone LED emergency lighting module engineered for performance in demanding environments.
Ideal for warehouses, factories, public buildings, and commercial spaces, it offers high lumen output, 3-hour emergency duration, self-testing or DALI integration, and a durable IP54 and IK08-rated housing.
Designed to meet BS 5266, EN1838, and EN60598 standards, the Beacon ensures reliable, compliant illumination during power outages.
IP54 Rated – Water and dust resistant for use in industrial, commercial, and partially exposed areas.
3-Hour Emergency Duration – Delivers prolonged illumination to aid safe evacuation.
Self-Testing / DALI Options – Automates monthly/annual tests and integrates with central systems.
Durable Housing (IK08) – Impact-resistant polycarbonate for tough environments.
High Output – 500 lumens (adjustable to 50 lm) for flexible emergency lighting schemes.
LiFePO4 Battery – Industrial-grade lithium iron phosphate with up to 10-year lifespan.
Wide Optic Options – Open Area (135°) or Corridor (115° x 155°) beam angles.

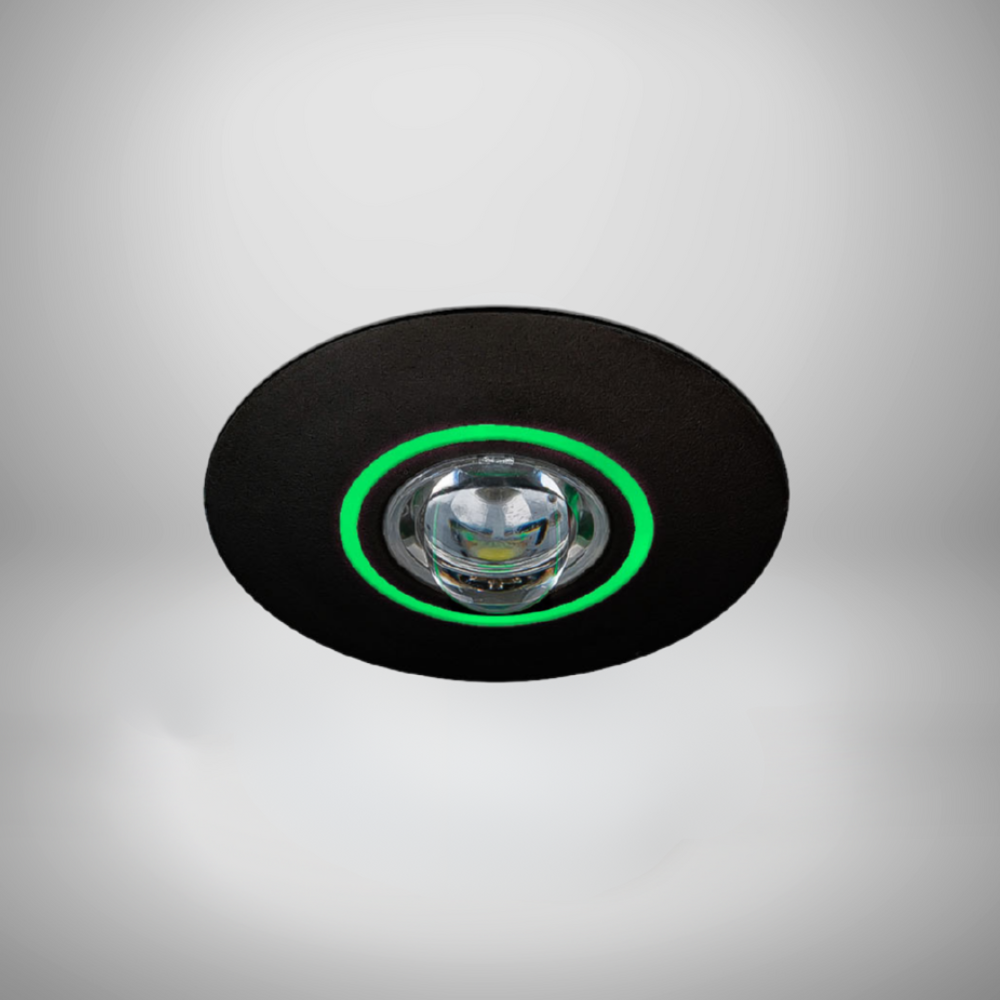

Finish Options – Available in white (RAL9016) or black (RAL9005) for aesthetic flexibility.
Quick Installation – Plug-and-play design simplifies setup in retrofit or new-build projects.
| Feature | Specification |
|---|---|
| Light Output | 500 lm (adjustable to 50 lm) |
| Battery Type | 3-hour LiFePO4 emergency battery |
| Ingress Protection | IP54 (dust & water resistant) |
| Impact Resistance | IK08 (polycarbonate housing) |
| Operating Temperature | -20°C to +40°C |
| Compliance | BS 5266, BS EN 60598, EN 1838 |
| Dimensions | 220mm x 150mm x 80mm |
| Warranty | 5 years (UK) |
| LED Lifetime | 100,000 hours (L70) |
| Model Code | Output | Optic | Beam Angle |
|---|---|---|---|
| ILEM/OA | 268 lm | Open Area | 135° wide flood |
| ILEM/CO | 266 lm | Corridor | 115° x 155° elliptical |
| ILEM-500 | 500 lm | Universal | Adjustable |
Cut-Out Diameter: Ø43mm
Overall Diameter: Ø50mm
Minimum Void Depth: 45mm
| Suffix | Description |
|---|---|
/BK |
Black finish (RAL9005) |
/EMD |
DALI + Self-Test functionality |
/EMP |
EM-Pro upgrade (void access required) |
/RC |
Red casing – high visibility in key areas |
/AT |
Anti-tamper screws for public environments |
| Feature | Beacon Emergency | Typical Competitors |
|---|---|---|
| Battery Life | 10 years (LiFePO4) | 3–5 years (Ni-Cd) |
| IP Rating | IP54 | IP44 |
| Testing Mode | Auto (monthly/annual) | Manual testing only |
| Impact Resistance | IK08 | IK06 or lower |
| Warranty | 5 years | 1–3 years |
Built to endure harsh industrial conditions with IP54 & IK08 ratings
Complies with BS 5266-1:2016 for legal safety assurance
Offers high-output, low-maintenance emergency lighting
Designed with future-ready features like DALI and LiFePO4 battery technology
Fully backed by a 5-year UK warranty
📄 Bim File
Yes, all of our luminaires are available with dimmable LED drivers.
Yes, all Lumenloop luminaires are supplied with compatible drivers to ensure optimal functionality and straightforward installation.
We use premium driver brands like Tridonic and Philips to ensure they have long life expectancies.
All our products are proudly designed and manufactured in the UK, ensuring the highest quality standards.
Our products are designed for various environments, with IP ratings from IP20 for indoor applications to IP65 for harsher conditions such as outdoor or industrial spaces.
Yes, our luminaires are designed to integrate seamlessly into retrofit projects, making it easy to upgrade existing lighting systems with minimal disruption.
Yes, Lumenloop’s industrial range of luminaires are built to withstand demanding environments, including high-moisture and high-heat settings.
Many of our products are designed with robust construction and high-quality materials that ensure reliability and durability in challenging conditions.
Yes. We offer 600×600 LED panels suitable for standard grid ceilings as well as selected specialist ceiling systems.
We also offer frames for SAS or Armstrong metal ceilings.
Yes. Most of our luminaires can be supplied with integrated emergency functionality, typically with a 3-hour duration.
Yes, we offer luminaires which can be supplied with DALI emergency self-test options where required.
This can help simplify emergency testing and monitoring as part of a wider lighting control or building management strategy.
We offer both maintained and non-maintained emergency options, depending on how the space is used.
While most standard products are available with a 3 hour non-maintained emergency pack, we also have standalone emergency lighting products with the choice of maintained and non-maintained.
Yes. Emergency functionality can be integrated into a wide range of luminaires, including downlights and panels.
This depends on layout, escape routes, and risk areas rather than just floor area. We can advise based on your drawings or requirements.
For a more detailed recommendation, please refer to our emergency lighting tool.
Yes. Selected luminaires can be supplied with self-test or DALI emergency options for automated testing and reporting.
Lead times vary depending on the product and the level of customisation required, but because most Lumenloop luminaires are made to order, we can usually give a clear lead time once the specification is confirmed.
Standard product: Typically 10 working days
Custom (e.g. bespoke RAL colour): Typically 20-30 working days
Special (bespoke): Typically between 6 – 8 weeks
Yes, we work closely with clients to develop bespoke lighting solutions tailored to their specific needs and design requirements.
Please reach out to us at info@lumenloop.co.uk
Yes, we can provide photometric LDT files to support lighting calculations, these are available to download on every product page.
Yes, Lumenloop luminaires are available in a wide range of colours and finishes to suit diverse design needs.
Most of our luminaires are customizable with a variety of RAL colour options, allowing you to match your lighting seamlessly with your interior decor or branding requirements.
This includes (but is not limited to) popular finishes such as RAL9010 (Pure White), RAL9003 (Signal White), RAL9005 (Jet Black), and RAL9016 (Traffic White), among many others.
In many cases, yes. Because products are made to order, we can often match key parameters such as size, output, or appearance.
You can either use our AI lighting product finder (just click on the ‘specify with AI‘ button in bottom-right corner or simply email us at info@lumenloop.co.uk
Our luminaires are designed to align with relevant UK standards, including BS EN 12464-1 for workplace lighting and BS 5266 for emergency lighting.
Yes, many of our luminaires incorporate recycled components, supporting our commitment to sustainable manufacturing.
Look out for the ‘98% recycled‘ product icon for those luminaires that are mostly made from recycled materials.
Yes, as a WEEE-certified member of Recolight, we offer free recycling services for old lighting fixtures to support sustainable waste management.
Yes. Many of our products are designed to be upgraded or refurbished, extending their usable life and reducing replacement costs.
Yes, Lumenloop offers refurbishment services for older light fittings, helping to extend their lifespan and improve energy efficiency.
Our ‘UK Renew & Reuse‘ workshop can upgrade your existing luminaires with the latest technology, such as LED retrofitting, modern dimming controls, and energy-efficient drivers, to ensure compliance with current standards and enhance performance.
Yes. Our luminaires are designed using circular principles, including modular construction and long-life components to reduce waste over time.
We openly publish product TM66 data for full transparency.
Yes, all of our luminaires are available with dimmable LED drivers.
Yes, all Lumenloop luminaires are supplied with compatible drivers to ensure optimal functionality and straightforward installation.
We use premium driver brands like Tridonic and Philips to ensure they have long life expectancies.
All our products are proudly designed and manufactured in the UK, ensuring the highest quality standards.
Our products are designed for various environments, with IP ratings from IP20 for indoor applications to IP65 for harsher conditions such as outdoor or industrial spaces.
Yes, our luminaires are designed to integrate seamlessly into retrofit projects, making it easy to upgrade existing lighting systems with minimal disruption.
Yes, Lumenloop’s industrial range of luminaires are built to withstand demanding environments, including high-moisture and high-heat settings.
Many of our products are designed with robust construction and high-quality materials that ensure reliability and durability in challenging conditions.
Yes. We offer 600×600 LED panels suitable for standard grid ceilings as well as selected specialist ceiling systems.
We also offer frames for SAS or Armstrong metal ceilings.
Yes. Most of our luminaires can be supplied with integrated emergency functionality, typically with a 3-hour duration.
Yes, we offer luminaires which can be supplied with DALI emergency self-test options where required.
This can help simplify emergency testing and monitoring as part of a wider lighting control or building management strategy.
We offer both maintained and non-maintained emergency options, depending on how the space is used.
While most standard products are available with a 3 hour non-maintained emergency pack, we also have standalone emergency lighting products with the choice of maintained and non-maintained.
Yes. Emergency functionality can be integrated into a wide range of luminaires, including downlights and panels.
This depends on layout, escape routes, and risk areas rather than just floor area. We can advise based on your drawings or requirements.
For a more detailed recommendation, please refer to our emergency lighting tool.
Yes. Selected luminaires can be supplied with self-test or DALI emergency options for automated testing and reporting.
Lead times vary depending on the product and the level of customisation required, but because most Lumenloop luminaires are made to order, we can usually give a clear lead time once the specification is confirmed.
Standard product: Typically 10 working days
Custom (e.g. bespoke RAL colour): Typically 20-30 working days
Special (bespoke): Typically between 6 – 8 weeks
Yes, we work closely with clients to develop bespoke lighting solutions tailored to their specific needs and design requirements.
Please reach out to us at info@lumenloop.co.uk
Yes, we can provide photometric LDT files to support lighting calculations, these are available to download on every product page.
Yes, Lumenloop luminaires are available in a wide range of colours and finishes to suit diverse design needs.
Most of our luminaires are customizable with a variety of RAL colour options, allowing you to match your lighting seamlessly with your interior decor or branding requirements.
This includes (but is not limited to) popular finishes such as RAL9010 (Pure White), RAL9003 (Signal White), RAL9005 (Jet Black), and RAL9016 (Traffic White), among many others.
In many cases, yes. Because products are made to order, we can often match key parameters such as size, output, or appearance.
You can either use our AI lighting product finder (just click on the ‘specify with AI‘ button in bottom-right corner or simply email us at info@lumenloop.co.uk
Our luminaires are designed to align with relevant UK standards, including BS EN 12464-1 for workplace lighting and BS 5266 for emergency lighting.
Yes, many of our luminaires incorporate recycled components, supporting our commitment to sustainable manufacturing.
Look out for the ‘98% recycled‘ product icon for those luminaires that are mostly made from recycled materials.
Yes, as a WEEE-certified member of Recolight, we offer free recycling services for old lighting fixtures to support sustainable waste management.
Yes. Many of our products are designed to be upgraded or refurbished, extending their usable life and reducing replacement costs.
Yes, Lumenloop offers refurbishment services for older light fittings, helping to extend their lifespan and improve energy efficiency.
Our ‘UK Renew & Reuse‘ workshop can upgrade your existing luminaires with the latest technology, such as LED retrofitting, modern dimming controls, and energy-efficient drivers, to ensure compliance with current standards and enhance performance.
Yes. Our luminaires are designed using circular principles, including modular construction and long-life components to reduce waste over time.
We openly publish product TM66 data for full transparency.
