MountingWall mounted
PROTECTED IP65 IK10 LED bulkhead
HarborIP65 IK10 LED bulkhead
Seal the body.
Soften the output.

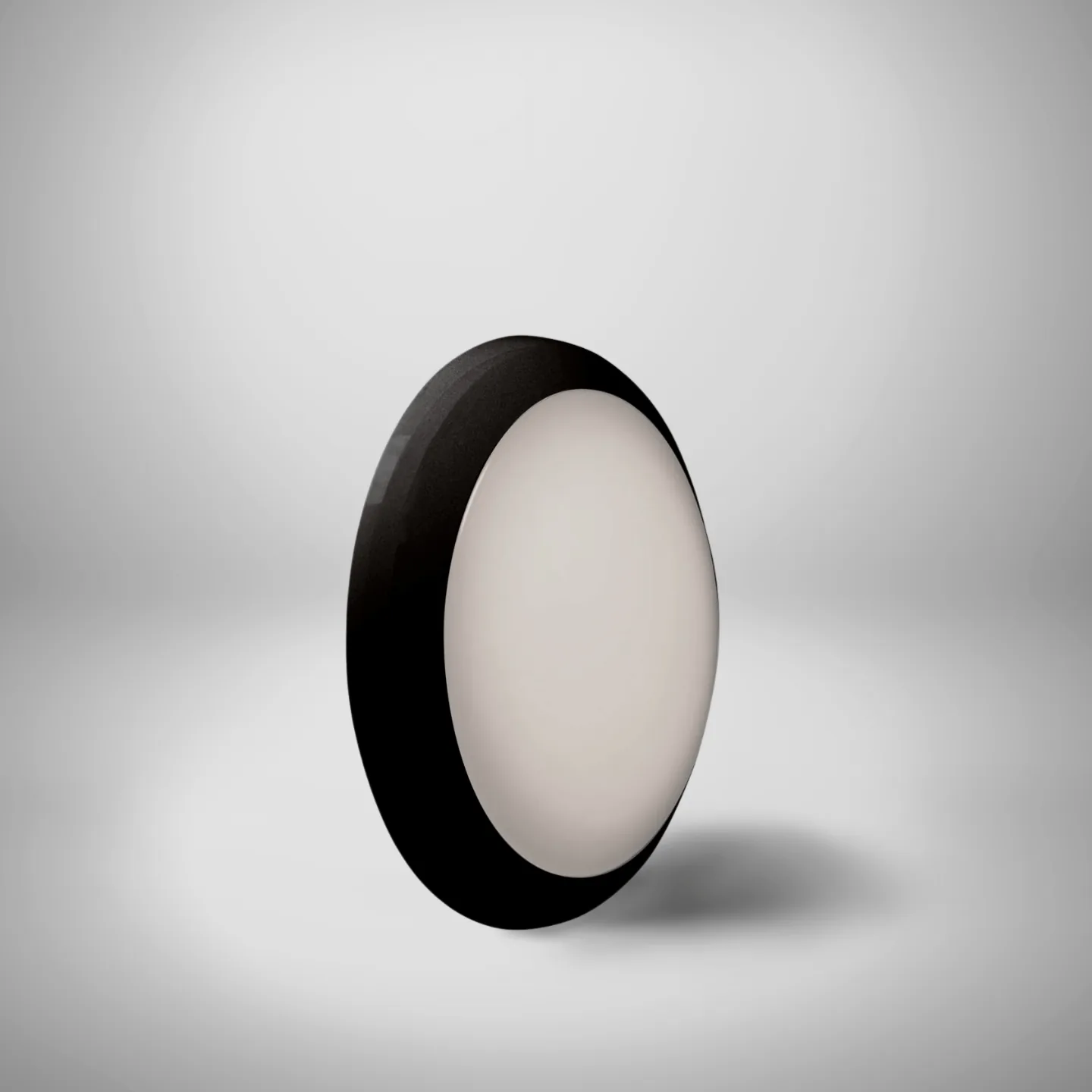

Lumenloop Harbor is an IP65 IK10 LED bulkhead for corridors, circulation areas, service areas and utility spaces. Its TP(a) opal diffuser, twist and lock bezel and Tridonic LED platform are available with halo, emergency, wireless, sensor and black finish options.
- Output
- 1,200–2,350 lm 6 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 9 listed controls and accessories
01 / 04
Output1,200–2,350 lm
Colour temperature3000K / 4000K
ControlsDALI, SwitchDIM, DSI, Casambi
Configuration9 listed options
Product configurator
Configure your Harbor
Choose the Harbor model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
IP65 IK10 LED bulkheadHarbor is an IP65 IK10 LED bulkhead with a TP(a) opal diffuser, twist and lock bezel, Tridonic LED and driver platform, and optional halo, emergency, wireless, sensor and black finish variants.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Harbor IP65 IK10 LED bulkhead quick specification.
Check the installation, output, colour temperature and control information for this IP65 IK10 LED bulkhead before reviewing the full model schedule.
Output1,200–2,350 lm
System power10 W / 14 W / 21 W
CCT3000K / 4000K
ControlsDALI, SwitchDIM, DSI, Casambi
EmergencyMaintained emergency, DALI emergency
Product files
Download Harbor technical files.
Available files for this exact product are listed below.
Shared normalised bulkhead distributionIntensity · cd/klm
Technical description
IP65 IK10 LED bulkhead specification for Harbor.
Harbor is an IP65 IK10 LED bulkhead built around a high-transmission TP(a) opal diffuser, a twist and lock bezel and a Tridonic LED and driver platform. The specification is centred on sealed construction, impact resistance and a more defined front-end assembly for harder-working commercial positions.
Harbor construction and mounting
For commercial vandal resistant LED bulkhead specifications, compare the model codes, outputs and available options below.
The Harbor family covers 1200 lm to 2350 lm across 10 W, 14 W and 21 W model options, with standard 3000K and 4000K references listed under HARBOR.001 to HARBOR.006. That keeps output and colour-temperature choice inside one IP65 IK10 LED bulkhead family rather than forcing a schedule to jump between different bodies.
Output, optics and colour temperature
TP(a) opal diffuser with a twist-and-lock bezel.
Harbor output is 1,200–2,350 lm.
System power options are 10 W / 14 W / 21 W.
Controls, emergency and project options
Suffixes add DALI / SwitchDIM / DSI, Casambi wireless, presence variants, maintained or DALI emergency, black finish, tamper-proof screws and the concealed halo ring diffuser. Compare Harbor with the wider wall-mounted lighting range when wall position, ingress protection and impact resistance are central to the schedule.
Optional halo ring, DALI, wireless, sensor and emergency variants.
Control options include DALI / SwitchDIM / DSI, Sd, Casambi wireless.
Output1,200–2,350 lm
System power10 W / 14 W / 21 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, SwitchDIM, DSI, Casambi
EmergencyMaintained emergency, DALI emergency
See the Lumenloop wall-mounted lighting range for related mounting, output and optic options.
Product typeIP65 IK10 LED bulkhead
Model codesHARBOR.001, HARBOR.002, HARBOR.003, HARBOR.004, HARBOR.005, HARBOR.006
Output1,200–2,350 lm
System power10 W / 14 W / 21 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, SwitchDIM, DSI, Casambi
EmergencyMaintained emergency, DALI emergency
Models, options and accessories
Harbor model codes and specification options.
Choose the Harbor base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes6 listed configurations
6 model configurations are shown with their output, CCT, power and finish information where available.
1,200 lm10 W
1,250 lm10 W
1,600 lm14 W
1,700 lm14 W
2,225 lm21 W
2,350 lm21 W
Additional Harbor options and accessoriesProduct images and specification choices
Finish/BL
Black finish
Controls/ECO
Specification dimming and control gear
Controls/SD
Integral motion + 10% dimming (not with /ECO)
Controls/BTC
Casambi Bluetooth wireless control
Emergency/EMI
Maintained emergency conversion
Emergency/EMDI
DALI emergency option
Other Options/SO
Integral on/off motion sensor (not with /ECO)
Other Options/HALO
Concealed halo ring diffuser
Other Options/AT
Tamper-proof diffuser screws
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Harbor
Why specify this IP65 IK10 LED bulkhead?
Harbor is an IP65 IK10 LED bulkhead with a TP(a) opal diffuser, twist and lock bezel, Tridonic LED and driver platform, and optional halo, emergency, wireless, sensor and black finish variants.
The 6-model family combines 1,200–2,350 lm, 3000K / 4000K and 9 listed configuration choices without changing the core product identity.
Robust general lighting with the control and body options kept clear
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
IP65 / IK10
Protected construction for demanding commercial and industrial locations.
TP(a) diffuser
Opal light control within a robust twist-and-lock bezel.
Six model codes
Three output levels are available in 3000K and 4000K.
Extensive options
Halo, sensor, control, emergency and black-finish choices are listed.
Output1,200–2,350 lm6 listed models
CCT3000K / 4000KModel dependent
Options9Controls and accessories
Typical applicationsWhere Harbor is specified
External circulation
Protected wall or ceiling lighting for suitable covered circulation areas.
Industrial interiors
Robust general lighting for service and ancillary areas.
Commercial corridors
Opal bulkhead lighting with sensor and emergency choices.
Residential developments
Durable shared-area lighting for stairs, corridors and entrances.
Compare Harbor with the wider wall-mounted lighting when reviewing output, optics, mounting, controls and emergency requirements.
3-CCT LED bulkhead
Titan
Titan is a 3-CCT LED bulkhead with 3-CCT switching between 3000K, 4000K and 5500K, wall or ceiling mounting, 180 degree distribution and an opal TP(a) polycarbonate diffuser.
Compare product →
corridor LED bulkhead
Sentinel
Designed for wall or ceiling mounting in corridors.
Compare product →
indirect LED wall light
Elevate
Elevate is an indirect LED wall light with intelligent controls, delivering controlled illumination for commercial interiors.
Compare product →Specification questions
Harbor details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
6 configurations are listed: HARBOR.001, HARBOR.002, HARBOR.003, HARBOR.004, HARBOR.005, HARBOR.006.
The product family covers 1,200–2,350 lm. Colour-temperature choices are 3000K / 4000K.
Control options include DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Maintained emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The configurator shows the product dimensional drawing. The product datasheet contains further construction and installation information.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Harbor datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
