DOWNLIGHTS mini linear LED downlight

Pulsemini linear LED downlight

Pulse.
mini linear LED downlight.

Pulse is a mini linear LED downlight for considered commercial lighting schemes. Its source-backed range includes The Pulse Series is a IP44-rated mini linear LED downlight , for commercial and architectural lighting. Featuring Samsung high-power LEDs , a low-glare matt black baffle , and an ultra-slim bezel , it delivers Ra90 high colour rendering with over 100 llm/tcW efficacy.

Output: 525–2,100 lm 8 model codes
Colour temperature: 3000K / 4000K model dependent
Options: 7 listed controls and accessories

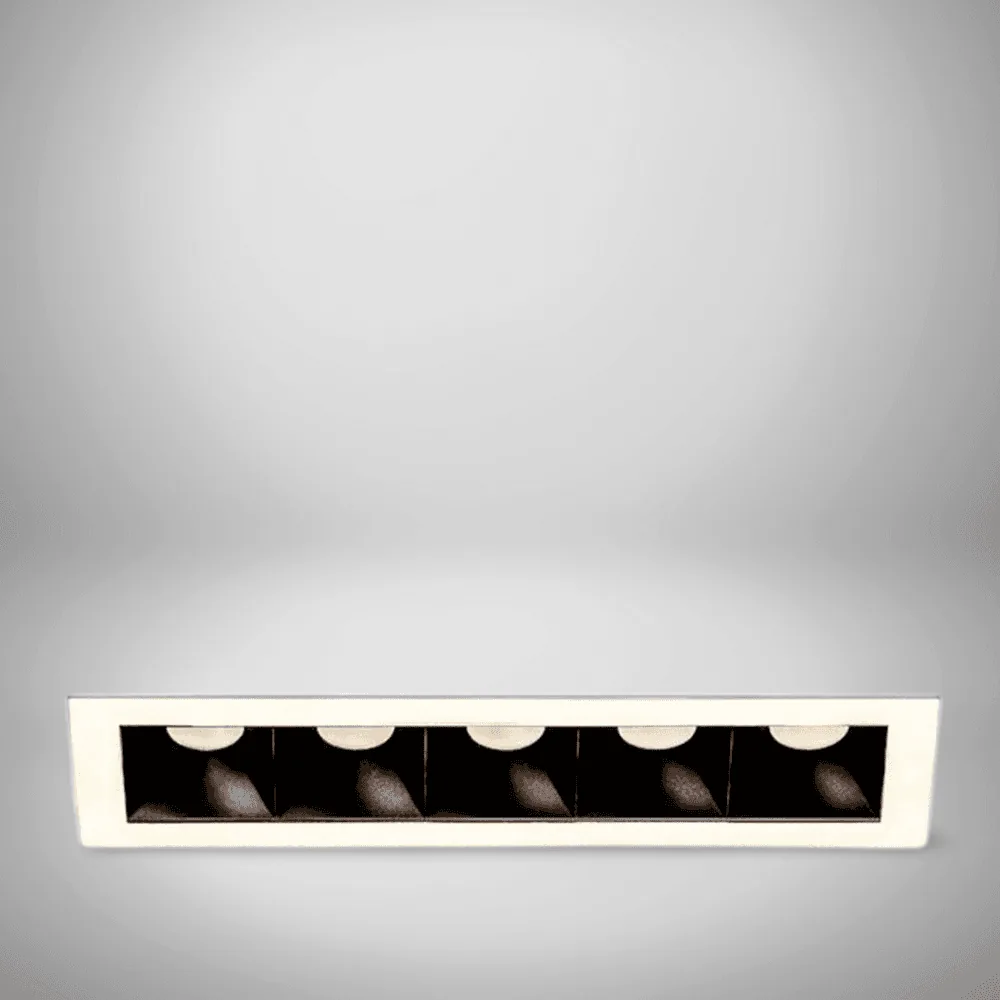

Pulse mini linear LED downlight on a clean white background

01 / 08

DownlightsarchitecturalRa90 linear downlight · low-glare IP44 downlight

Output: 525–2,100 lm
CCT: 3000K / 4000K
Options: 7 listed

Model codesPULSE.001/LO525 lm · 3000K PULSE.002/LO525 lm · 4000K

Output525–2,100 lm

Colour temperature3000K / 4000K

ControlsFixed output

Ceiling aperture175 × 50 mm or 330 × 50 mm

Product configurator

Configure your Pulse

Choose the Pulse model first, then add only the control, optic, emergency, finish or mounting options required for the project.

LuminaireProduct family

mini linear LED downlightPulse is an IP44-rated mini linear LED downlight for commercial and architectural interiors. Featuring Samsung high-power LEDs , a low-glare matt black baffle , and an ultra-slim bezel , it delivers Ra90 high colour rendering with over 100 lm/W efficacy

Output and CCT8 listed model choices

FinishAvailable finish

Beam & OpticsAvailable beam & optics

QuantityNumber of fittings

fittingsAdded to the quotation email

Technical filesProduct and design information

Datasheet Installation guide Photometric data BIM file

At a glance

Pulse mini linear LED downlight quick specification.

Check the installation, output, colour temperature and control information for this mini linear LED downlight before reviewing the full model schedule.

Configure Pulse Request pricing

Technical referenceNot to scale

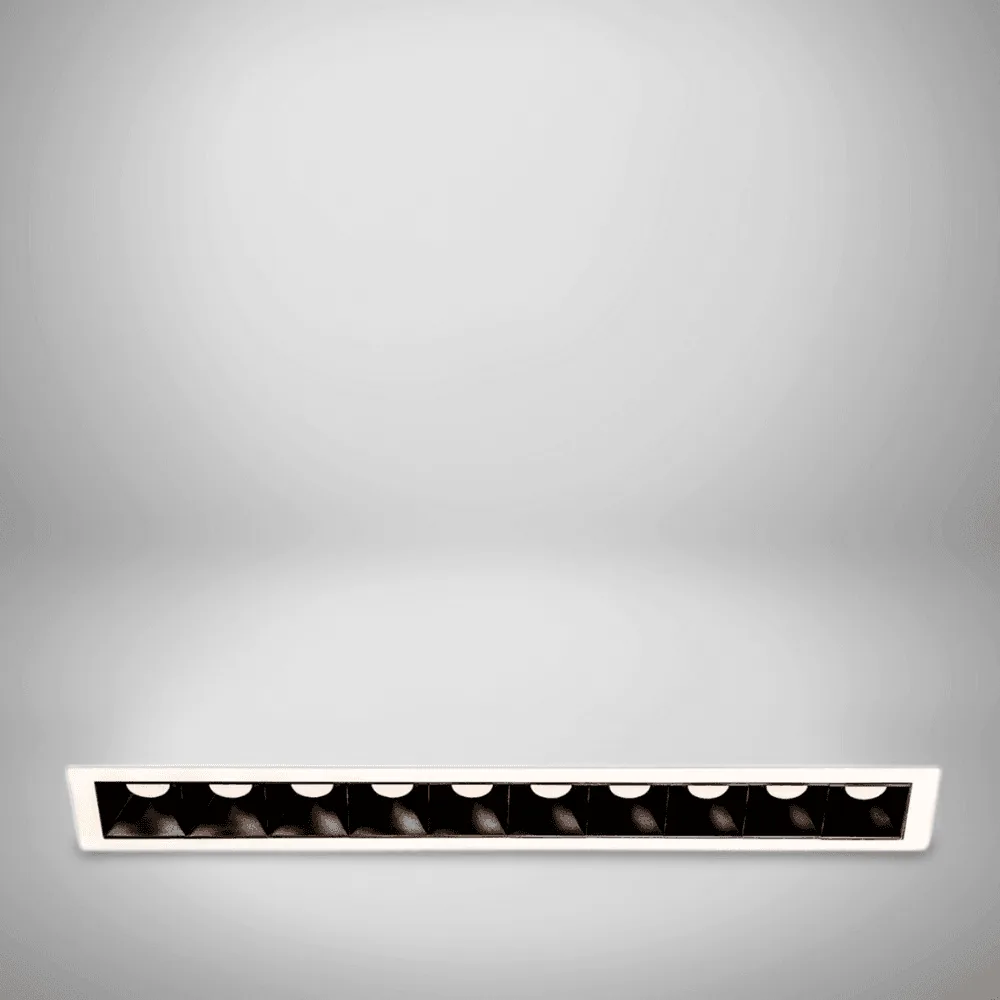

PulseProduct geometry and mounting reference

Key specificationSource-backed summary

01Ceiling aperture: 175 × 50 mm or 330 × 50 mm
02Output: 525–2,100 lm
03System power: 7–23 W
04CCT: 3000K / 4000K
05Controls: DALI, Casambi
06Emergency: Emergency conversion, DALI emergency

Product files

Download Pulse technical files.

Available files for this exact product are listed below.

DatasheetPDF download Installation guidePDF download Photometric dataZIP download BIM fileZIP download

Polar luminous intensityPULSE.001 · standard optic

C0/C180 distribution from source LDT valuesIntensity · cd/klm

Technical description

Mini linear LED downlight specification for Pulse.

Pulse's published technical information supports a specification-led selection for the intended mounting and lighting requirement.

Pulse construction and mounting

For Ra90 linear downlight specifications, compare the model codes, outputs and available options below.

Performance and installation details include life >60,000 hours (L80 / F50) and high colour rendering Ra90: Consistent colour appearance across repeated fittings.

Output, optics and colour temperature

Pulse output is 525–2,100 lm.

System power options are 7–23 W.

Colour temperature options are 3000K / 4000K.

Controls, emergency and project options

Control options include Fixed output.

No listed emergency suffix.

Output525–2,100 lm

System power7–23 W

Colour temperature3000K / 4000K

FinishSee datasheet

ControlsFixed output

EmergencyNo listed emergency suffix

Download Pulse datasheet Configure Pulse

See the Lumenloop commercial downlights range for related mounting, output and optic options.

Product typemini linear LED downlight

Model codesPULSE.001/LO, PULSE.002/LO, PULSE.001, PULSE.002, PULSE.003/LO, PULSE.004/LO, PULSE.003, PULSE.004

Output525–2,100 lm

System power7–23 W

Colour temperature3000K / 4000K

FinishSee datasheet

ControlsFixed output

EmergencyNo listed emergency suffix

Models, options and accessories

Pulse model codes and specification options.

Choose the Pulse base model, then review the available controls, emergency arrangements, optics and accessories.

Model codes8 listed configurations

8 models are shown with output, CCT and power information where available.

3000KPULSE.001/LO

525 lm3000K7 W

4000KPULSE.002/LO

525 lm4000K13 W

3000KPULSE.001

1,050 lm3000K13 W

4000KPULSE.002

1,050 lm4000K13 W

3000KPULSE.003/LO

1,050 lm3000K13 W

4000KPULSE.004/LO

1,050 lm4000K13 W

3000KPULSE.003

2,100 lm3000K23 W

4000KPULSE.004

2,100 lm4000K23 W

Options and accessories

Configure the available Pulse options.

Review the available controls, emergency arrangements, sensors, mounting accessories and custom configurations for the selected luminaire.

Additional Pulse options and accessoriesProduct images and specification choices

Finish/BK

Black body or bezel finish

Finish/GY

Grey bezel finish

Finish/WH

White body or bezel finish

Finish/GD

Gold Baffle

Beam & Optics/SNB

Super narrow beam optic

Beam & Optics/NB

Narrow beam optic

Beam & Optics/WB

Wide beam optic

Finish/WH

White bezel finish

Finish/GD

Gold bezel finish

Finish/BK

Black bezel finish

Finish/GY

Grey bezel finish

Finish/PI

Polished stainless-steel bezel

Beam & optics/SNB

Spot narrow-beam optic

Beam & optics/NB

Narrow-beam optic

Beam & optics/WB

Wide-beam optic

Controls/T+DALI

Touch and DALI control

Controls/BTC

Casambi wireless control

Emergency/EM

Three-hour emergency conversion

Emergency/EMD

DALI emergency conversion

Ingress protection/65

IP65 protected option

Body & mountingAdjustable version

166 Series adjustable mounting

Custom configurationColoured bezel

Custom coloured bezel variation

Custom configurationColoured baffles

Custom coloured baffles variation

Custom configurationLower outputs

Custom lower-output variation

Custom configurationPlug & sockets

Custom plug and socket variation

Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.

Configure these options Request a quote

Why Pulse

Why specify this mini linear LED downlight?

Pulse is an IP44-rated mini linear LED downlight for commercial and architectural interiors. Featuring Samsung high-power LEDs , a low-glare matt black baffle , and an ultra-slim bezel , it delivers Ra90 high colour rendering with over 100 lm/W efficacy

The 8-model family combines 525–2,100 lm, 3000K / 4000K and 7 listed configuration choices without changing the core product identity.

Pulse options kept clear for project specification

Base model, control, emergency and accessory decisions remain visibly separate in the configurator.

This keeps the fitting code readable while retaining the breadth of the current product range.

architectural

Pulse is available for projects requiring architectural lighting.

commercial

Pulse is available for projects requiring commercial lighting.

high CRI

Pulse is available for projects requiring high cri lighting.

high efficacy

Pulse is available for projects requiring high efficacy lighting.

Output525–2,100 lm8 listed models

CCT3000K / 4000KModel dependent

Options7Controls and accessories

Typical applicationsWhere Pulse is specified

Downlights

Use Pulse where downlights lighting is required.

Linear

Use Pulse where linear lighting is required.

Commercial interiors

Compare Pulse with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.

Build your Pulse Specification support

Specification questions

Pulse details worth checking.

Direct answers for consultants, contractors and commercial lighting buyers.

Configure Pulse Ask about Pulse

Which Pulse model codes are available?

8 configurations are listed: PULSE.001/LO, PULSE.002/LO, PULSE.001, PULSE.002, PULSE.003/LO, PULSE.004/LO, PULSE.003, PULSE.004.

Which outputs and colour temperatures are available?

The listed models cover 525–2,100 lm. Colour-temperature choices are 3000K / 4000K.

Which control options can be specified?

Fixed-output operation is listed for this product.

Which emergency options are available?

No emergency suffix is listed for this product.

What ceiling aperture does Pulse require?

The Pulse requires a 175 × 50 mm or 330 × 50 mm ceiling aperture. Check the dimensional drawing and installation guide before cutting the ceiling.

How do I request a quotation?

Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.

Is the Pulse datasheet available?

Yes. The Pulse datasheet is linked in the hero, configurator and technical section.

What is the standard lead time for Pulse?

Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
