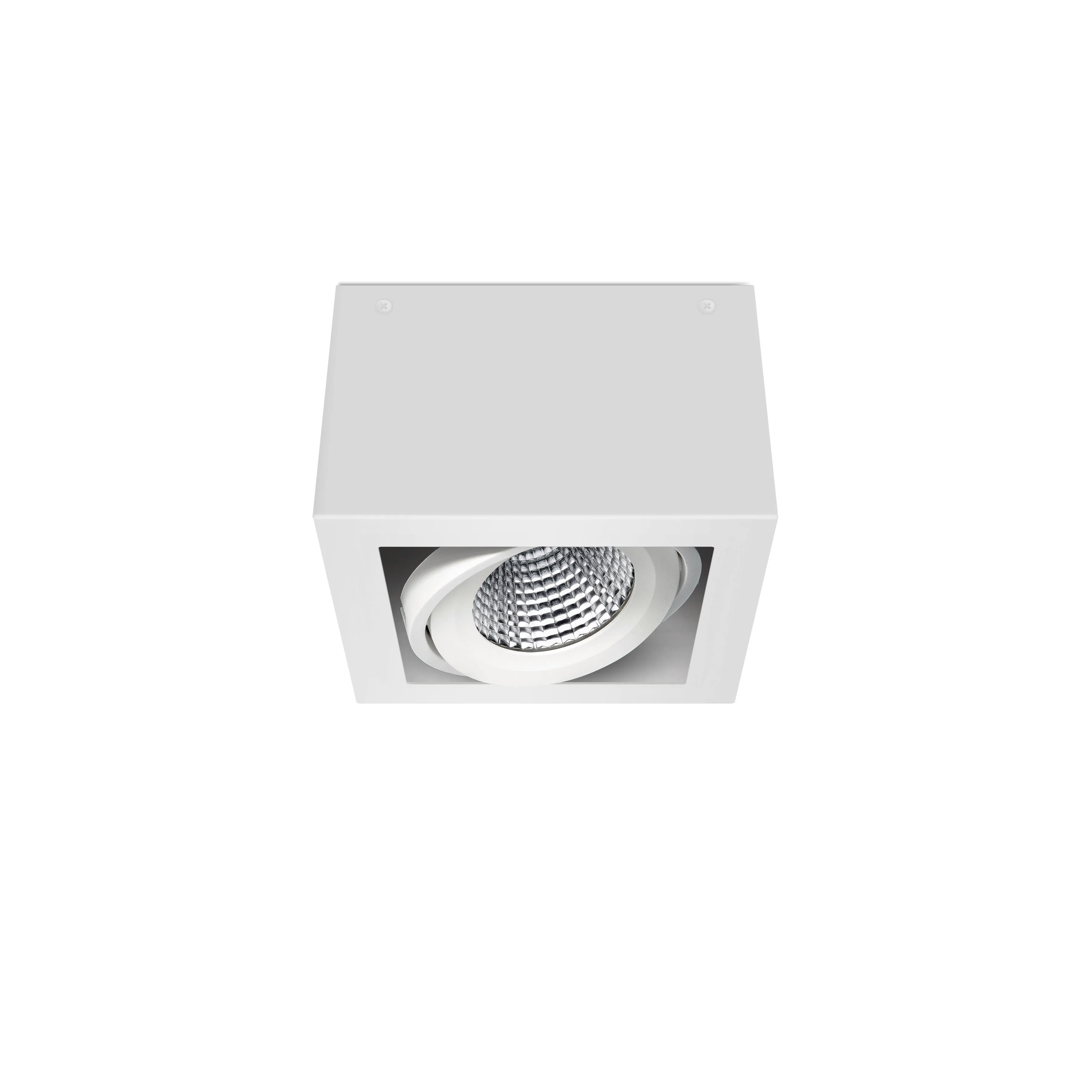

Align 160

The 160 Series framelight represents the evolution of professional accent lighting.

This sophisticated surface-mounted luminaire combines complete adjustability with advanced Tridonic LED technology, delivering precise illumination for premium commercial environments.

Offering outputs from 1,025 to 3,000 lumens and comprehensive control options including DALI compatibility, the 160 Series provides the perfect solution for sophisticated accent lighting. Each light features professional-grade construction with dual gimbal positioning, making it the preferred choice for designers seeking excellence in display and feature lighting applications.



📄 Download Datasheet

📄 Installation Guide

📄 Photometric Data

📄 Bim File

uk-made lighting 5 year warranty lighting

160 Series LED Framelight | Professional Single Adjustable Spotlight

The Align 160 Series Surface LED Framelight is a versatile lighting solution designed for both general downlighting and accent lighting.

With a lifespan of over 60,000 hours (L70/F10) and an impressive efficacy of up to 112.9 lumens per total circuit watt, this fully adjustable surface-mounted fixture combines durability and energy efficiency. Available in classic white or sleek black finishes, with additional RAL colour options on request, the Align 160 seamlessly complements any decor.

Featuring dimming capabilities and a standard medium beam, it also offers narrow and wide beam options for customized lighting. The high colour rendering (Ra90) ensures vibrant and accurate colour representation, making it ideal for various settings.

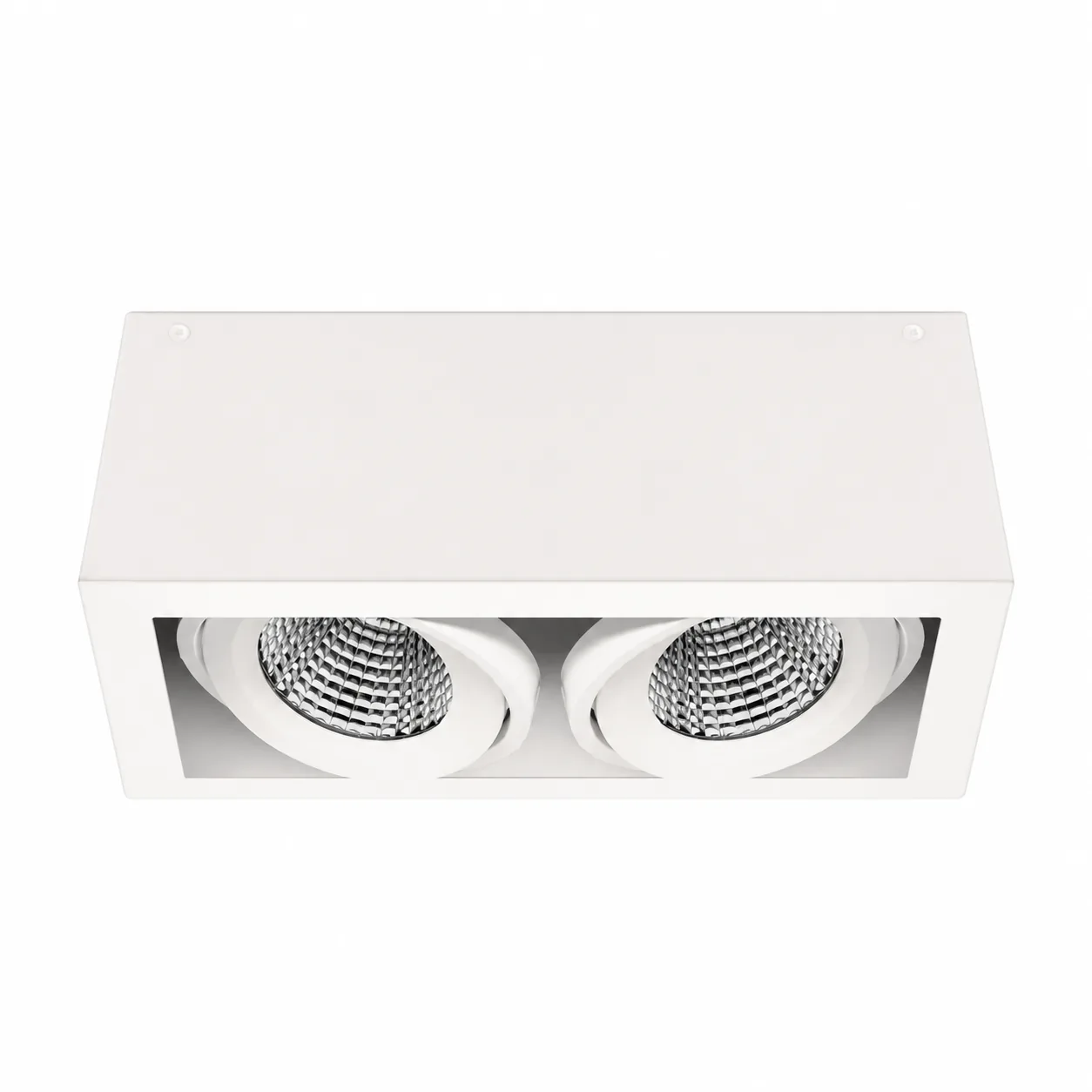

For those seeking a coordinated look, the twin version, 161 Series, is also available, providing flexibility in larger spaces. The Align 160 Series is an excellent choice for enhancing both residential and commercial environments with quality lighting.

Dimensions Specifications
Width 225 mm
Depth 225 mm
Height 152 mm
Construction Professional-grade aluminum

Precision Accent Lighting Redefined

The 160 Series single framelight delivers the ultimate in flexible accent lighting, combining sophisticated design with advanced LED technology. Perfect for creating focused illumination in premium retail and display environments.

KEY FEATURES | Advanced LED Spotlight Technology

Feature Details
Design ✔ Professional adjustable single LED spotlight
Flexibility ✔ Dual gimbal positions for precise aiming
Optics ✔ Medium beam multi-faceted reflector standard
Technology ✔ Advanced Tridonic LED system
Performance ✔ Exceptional efficacy up to 112.9 llm/W
Lifespan ✔ Superior >60,000 hours L70/F10
Options ✔ Multiple beam angles and finish choices
Quality ✔ Premium construction standards

TECHNICAL SPECIFICATIONS | Professional LED Performance

Model Output (llm) Power (tcW) Color Temp Ideal Application
160.001 1,025 10W 3000K Subtle Accent
160.002 1,025 9W 4000K Precise Detail
160.003 2,000 19W 3000K Feature Display
160.004 2,000 18W 4000K Retail Highlight
160.005 3,000 31W 3000K Maximum Impact
160.006 3,000 29W 4000K Brilliant Display

PROFESSIONAL OPTIONS & ACCESSORIES

Option Type Code Description
Finish /BK Sophisticated black body and gimbal
Control /ECO Intelligent SwitchDIM/DALI/DSI
Beam Control /NB Professional narrow beam reflector
/WB Enhanced wide beam distribution
Colour Quality /R9 Superior Ra 90 color rendering

RETAIL & DISPLAY APPLICATIONS

Space Type | Lighting Benefits

Boutique Retail | Precise product emphasis Art Galleries | Professional artwork illumination Museum Displays | Artifact highlighting Jewelry Stores | Brilliant merchandise presentation Fashion Retail | Brand enhancement lighting Hotel Features | Architectural accenting Restaurant Displays | Atmosphere creation Premium Showrooms | Product showcasing

PROFESSIONAL ADVANTAGES

Feature Designer Benefits
Complete Adjustability Perfect aim every time
Dual Gimbal System Maximum positioning flexibility
Multiple Outputs Suits every application
Finish Options Matches any interior scheme
Smart Controls Building system integration
Professional Build Long-term reliability
Premium Aesthetics Sophisticated appearance
Enhanced CRI Perfect colour presentation

EXPERT APPLICATIONS

  • Premium retail displays requiring precise focus
  • Gallery spaces needing professional illumination
  • Museum exhibits demanding superior clarity
  • Jewelry showcases seeking brilliant presentation
  • Fashion displays requiring perfect color rendering
  • Hotel features needing sophisticated emphasis
  • Restaurant focal points wanting atmosphere
  • Showroom products demanding perfect presentation

*[LED]: Light Emitting Diode *[DALI]: Digital Addressable Lighting Interface *[CRI]: Colour Rendering Index



📄 Download Datasheet

📄 Installation Guide

📄 Photometric Data

📄 Bim File

FAQ

Yes, all of our luminaires are available with dimmable LED drivers.

  • Mains Dimming (/MDIM): This allows dimming through standard phase-cut dimmers.

  • SwitchDIM, DALI, or DSI (/ECO): These options provide compatibility with SwitchDIM, Digital Addressable Lighting Interface (DALI), or Digital Serial Interface (DSI) systems for more advanced lighting control.

  • Casambi Wireless Network (/BTC): This enables wireless dimming and control via the Casambi platform, offering flexibility and ease of use.

Yes, we offer a comprehensive range of emergency lighting solutions to ensure safety and compliance with UK regulations. Our offerings include:

  • Maintained Emergency Lighting: These luminaires operate continuously under normal conditions and remain illuminated during a power failure, providing consistent illumination in critical areas.

  • Non-Maintained Emergency Lighting: These units remain off during normal operation and activate only when the mains power fails, ensuring energy efficiency while still providing essential illumination during emergencies.

  • Emergency Exit Signage: Designed to guide occupants safely during evacuations, our exit signs are available in various formats, including surface-mounted and recessed options, to suit different building designs and requirements.

These solutions are designed to provide dependable performance during critical moments, ensuring safety and visibility across various environments.

Our lighting solutions utilise the latest LED technology to maximise energy efficiency, helping to reduce energy consumption and lower operational costs.

Yes, all Lumenloop luminaires are supplied with compatible drivers to ensure optimal functionality and straightforward installation. We use premium driver brands like Tridonic and Philips to ensure they have long life expectancies.

All our products are proudly designed and manufactured in the UK, ensuring the highest quality standards.

Yes, we work closely with clients to develop bespoke lighting solutions tailored to their specific needs and design requirements.

Just reach out to us at info@lumenloop.co.uk

Our products are designed for various environments, with IP ratings from IP20 for indoor applications to IP65 for harsher conditions such as outdoor or industrial spaces.

Yes, as a WEEE-certified member of Recolight, we offer free recycling services for old lighting fixtures to support sustainable waste management.

Yes, many of our luminaires incorporate recycled components, supporting our commitment to sustainable manufacturing. Look out for the ‘98% recycled‘ product icon for those luminaires that are mostly made from recycled materials.

Yes, our luminaires are designed to integrate seamlessly into retrofit projects, making it easy to upgrade existing lighting systems with minimal disruption.

Lumenloop’s emergency lighting solutions are designed to fit a wide variety of installations, making them ideal for retrofit projects of all types.

Yes, Lumenloop luminaires are available in a wide range of colours and finishes to suit diverse design needs.

Most of our luminaires are customizable with a variety of RAL colour options, allowing you to match your lighting seamlessly with your interior decor or branding requirements.

This includes (but is not limited to) popular finishes such as RAL9010 (Pure White), RAL9003 (Signal White), RAL9005 (Jet Black), and RAL9016 (Traffic White), among many others.

We offer options that cater to both standard and bespoke requirements, ensuring that no matter the space, you can achieve the perfect lighting aesthetic while maintaining functionality. This flexibility in colour and finish makes our luminaires ideal for a variety of applications, from commercial spaces to more design-sensitive environments.

Yes, Lumenloop luminaires can be easily integrated with smart systems for enhanced control and flexibility.

Our products support a variety of popular smart lighting technologies, including Casambi, which allows for wireless control via Bluetooth. This means you can adjust light levels, set scenes, and even schedule lighting events directly from your mobile device or through a central system.

Additionally, our luminaires are compatible with other smart control systems such as DALI (Digital Addressable Lighting Interface), DSI (Digital Serial Interface), and SwitchDIM. These options provide versatile, scalable control for a range of environments, ensuring that Lumenloop luminaires can fit into your existing smart building infrastructure seamlessly.

Yes, Lumenloop products are fully compliant with both UK and EU safety standards, ensuring reliable and safe lighting solutions for a wide range of applications.

Lumenloop luminaires comply to regulations, including the BS EN 60598-1 standard for general requirements for luminaires, as well as specific standards for emergency lighting.

We ensure that our emergency lighting systems undergo rigorous testing to meet the requirements of the latest emergency lighting regulations, including the necessary duration for emergency operation and testing protocols, providing peace of mind for both users and regulatory bodies.

Yes, Lumenloop offers refurbishment services for older light fittings, helping to extend their lifespan and improve energy efficiency.

Our ‘UK Renew & Reuse’ workshop can upgrade your existing luminaires with the latest technology, such as LED retrofitting, modern dimming controls, and energy-efficient drivers, to ensure compliance with current standards and enhance performance.

We understand the value of your existing installations and offer bespoke solutions to suit your specific requirements.

Yes, Lumenloop’s industrial range of luminaires are built to withstand demanding environments, including high-moisture and high-heat settings.

Many of our products are designed with robust construction and high-quality materials that ensure reliability and durability in challenging conditions.
