Optix 30 Low-Glare IP54 LED Downlight
Optix 30 - Image 2

Optix 30

Introducing the Vortex 31 Low-Glare LED Downlight, a premium lighting solution meticulously engineered for architectural and commercial applications.

Designed to deliver superior illumination with minimal glare, the Vortex 31 combines advanced LED technology with a sleek, low-profile design, making it an ideal choice for modern interiors.

Designed to deliver precise illumination with minimal glare, the Optix 30 combines advanced LED technology with a sleek, low-profile design, making it an ideal choice for modern interiors.



📄 Download Datasheet

📄 Installation Guide

📄 Photometric Data

 uk-made lighting  5 year warranty lighting

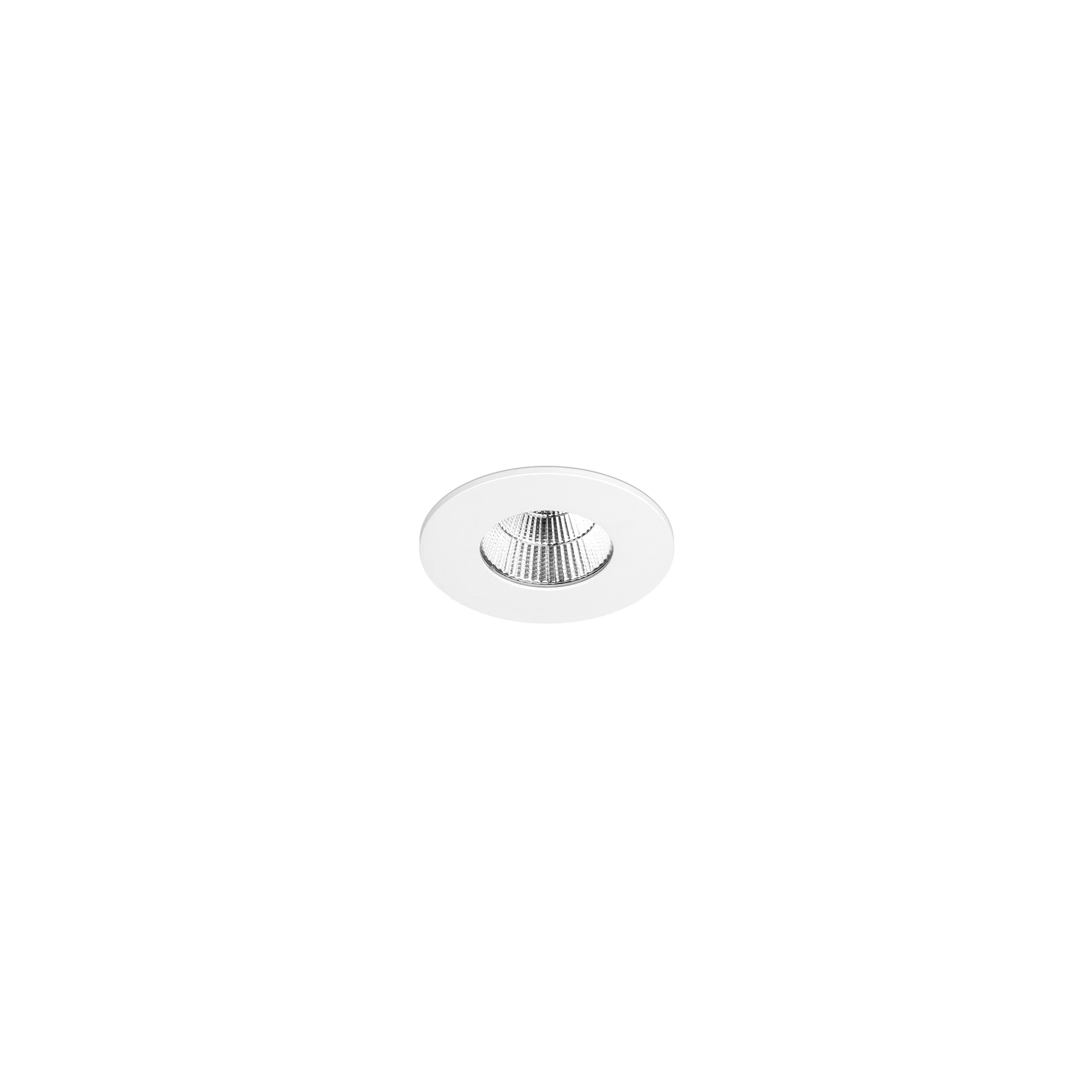

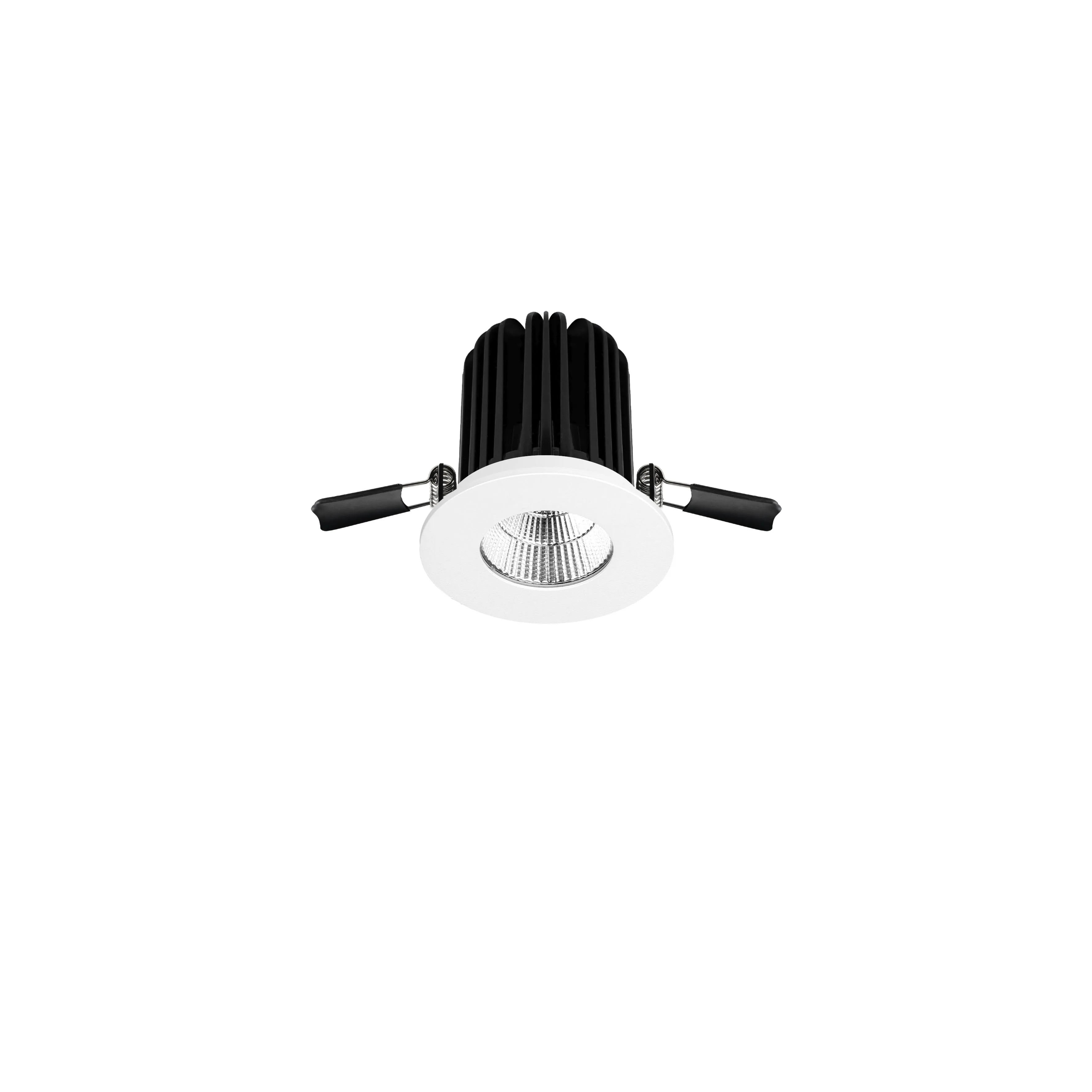

Optix 30 Low-Glare IP54 LED Downlight

The Optix 30 is a compact, IP54-rated LED downlight engineered for architectural settings that demand precise lighting with minimal glare.

Its 70 mm bezel and 60 mm cut-out allow for discreet integration into a variety of spaces, making it an ideal choice for environments that prioritize subtlety in design. The downlight features a 36° faceted reflector, ensuring focused and efficient light distribution.

Built with a die-cast bezel in White RAL 9003, the Optix 30 offers a sleek aesthetic while delivering reliable performance with a lifespan exceeding 50,000 hours (L70/F50).

It also supports DALI, emergency lighting, and dimming control options. Additionally, the product is backed by a 5-year warranty and complies with IEE PAR1789 (2015) standards for flicker-free operation.



Key Features:

  • Low-Glare Illumination: Equipped with a 36° faceted reflector, the Vortex 31 ensures precise light distribution, minimizing glare and enhancing visual comfort.
  • Durable Construction: The die-cast bezel and injection-moulded baffle provide a robust and aesthetically pleasing design, ensuring longevity and performance.
  • Long Lifespan: Engineered for durability, the Vortex 31 boasts a lifespan exceeding 50,000 hours (L70/F50), reducing maintenance costs and ensuring sustained performance.
  • Flicker-Free Operation: Designed to operate without visible flicker, complying with IEEE PAR1789 2015 standards, it promotes a comfortable visual environment.
  • Dimming and Control Options: Supports various dimming protocols, including phase-cut mains dimming, SwitchDIM, DALI, DSI, and Casambi wireless networks, offering flexibility for different applications.
  • Emergency Lighting Compatibility: Available with 3-hour emergency conversion and self-test/DALI emergency conversion options, ensuring safety in critical situations.
  • Warranty: Backed by a 5-year warranty, underscoring its quality and reliability.



Technical Specifications:

Specification Details
Dimensions Bezel Diameter: 80 mm; Cut-out Diameter: 70 mm; Height: 74 mm
Delivered Output 750 lumens (3000K); 775 lumens (4000K)
Power Consumption 8W
Colour Temperatures Available in 3000K (Warm White) and 4000K (Neutral White)
LED Technology High-efficacy LEDs
Lifespan Over 50,000 hours (L70/F50)
Finish Die-cast low-profile bezel, white RAL9003
Reflector Injection-moulded 36° faceted reflector
Glare Control Low-glare design
Flicker No visible flicker (IEEE PAR1789 2015 compliant)
Warranty 5 years



Product Options and Codes:

Model Reference Description
31.001 Vortex 31 Downlight, 3000K, 750 lumens
31.002 Vortex 31 Downlight, 4000K, 775 lumens



Available Options:

Option Code Description
/MDIM Phase-cut mains dimming
/ECO SwitchDIM, DALI, or DSI control
/BTC Casambi wireless network (including dimming)
/EM 3-hour emergency conversion
/EMD 3-hour self-test and DALI emergency conversion



Ordering Information:

To configure your Vortex 31 Downlight with desired options, append the option codes to the model reference. For example, to order the Vortex 31 with 3000K colour temperature, Casambi wireless network control, and 3-hour emergency conversion, the part number would be:

31.001/BTC/EM

Please Note: Specification values may change due to rapid developments in lighting technology. All performance data is taken at an ambient temperature of +25°C. Data may be rounded for illustrative purposes. Tolerance range of optical and electrical data is +/-10%. We reserve the right to amend or change details without prior notification. E&OE.





Key Features:

  • Low-Glare Illumination: Equipped with a 36° faceted reflector, the Optix 30 ensures focused and efficient light distribution, minimizing glare and enhancing visual comfort.
  • Durable Construction: The die-cast bezel, finished in RAL9003 white, provides a sleek and durable design that complements modern interiors.
  • Long Lifespan: Engineered for durability, the Optix 30 boasts a lifespan exceeding 50,000 hours (L70/F50), reducing maintenance costs and ensuring sustained performance.
  • Flicker-Free Operation: Designed to operate without visible flicker, complying with IEEE PAR1789 2015 standards, it promotes a comfortable visual environment.
  • Dimming and Control Options: Supports various dimming protocols, including phase-cut mains dimming, SwitchDIM, DALI, DSI, and Casambi wireless networks, offering flexibility for different applications.
  • Emergency Lighting Compatibility: Available with 3-hour emergency conversion and self-test/DALI emergency conversion options, ensuring safety in critical situations.
  • Warranty: Backed by a 5-year warranty, underscoring its quality and reliability.



Technical Specifications:

Specification Details
Dimensions Bezel Diameter: 70 mm; Cut-out Diameter: 60 mm; Height: 74 mm
Delivered Output 750 lumens (3000K); 775 lumens (4000K)
Power Consumption 8W
Colour Temperatures Available in 3000K (Warm White) and 4000K (Neutral White)
LED Technology High-efficacy LEDs
Lifespan Over 50,000 hours (L70/F50)
Finish Die-cast low-profile bezel, white RAL9003
Reflector Injection-moulded 36° faceted reflector
Glare Control Low-glare design
Flicker No visible flicker (IEEE PAR1789 2015 compliant)
Warranty 5 years



Product Options and Codes:

Model Reference Description
30.001 Optix 30 Downlight, 3000K, 750 lumens
30.002 Optix 30 Downlight, 4000K, 775 lumens



Available Options:

Option Code Description
/MDIM Phase-cut mains dimming
/ECO SwitchDIM, DALI, or DSI control
/BTC Casambi wireless network (including dimming)
/EM 3-hour emergency conversion
/EMD 3-hour self-test and DALI emergency conversion



Ordering Information:

To configure your Optix 30 Downlight with desired options, append the option codes to the model reference. For example, to order the Optix 30 with 3000K colour temperature, Casambi wireless network control, and 3-hour emergency conversion, the part number would be:

30.001/BTC/EM

Please Note: Specification values may change due to rapid developments in lighting technology. All performance data is taken at an ambient temperature of +25°C. Data may be rounded for illustrative purposes. Tolerance range of optical and electrical data is +/-10%. We reserve the right to amend or change details without prior notification. E&OE.

Elevate your architectural lighting projects with the Optix 30 Low-Glare IP54 LED Downlight, offering precision, efficiency, and adaptability to meet diverse application needs.



📄 Download Datasheet

📄 Installation Guide

📄 Photometric Data

Related Products

Related products

FAQ

Yes, all of our luminaires are available with dimmable LED drivers.

  • Mains Dimming (/MDIM): This allows dimming through standard phase-cut dimmers.

  • SwitchDIM, DALI, or DSI (/ECO): These options provide compatibility with SwitchDIM, Digital Addressable Lighting Interface (DALI), or Digital Serial Interface (DSI) systems for more advanced lighting control.

  • Casambi Wireless Network (/BTC): This enables wireless dimming and control via the Casambi platform, offering flexibility and ease of use.

Yes, we offer a comprehensive range of emergency lighting solutions to ensure safety and compliance with UK regulations. Our offerings include:

  • Maintained Emergency Lighting: These luminaires operate continuously under normal conditions and remain illuminated during a power failure, providing consistent illumination in critical areas.

  • Non-Maintained Emergency Lighting: These units remain off during normal operation and activate only when the mains power fails, ensuring energy efficiency while still providing essential illumination during emergencies.

  • Emergency Exit Signage: Designed to guide occupants safely during evacuations, our exit signs are available in various formats, including surface-mounted and recessed options, to suit different building designs and requirements.

These solutions are designed to provide dependable performance during critical moments, ensuring safety and visibility across various environments.

Our lighting solutions utilise the latest LED technology to maximise energy efficiency, helping to reduce energy consumption and lower operational costs.

Yes, all Lumenloop luminaires are supplied with compatible drivers to ensure optimal functionality and straightforward installation. We use premium driver brands like Tridonic and Philips to ensure they have long life expectancies.

All our products are proudly designed and manufactured in the UK, ensuring the highest quality standards.

Yes, we work closely with clients to develop bespoke lighting solutions tailored to their specific needs and design requirements.

Just reach out to us at info@lumenloop.co.uk

Our products are designed for various environments, with IP ratings from IP20 for indoor applications to IP65 for harsher conditions such as outdoor or industrial spaces.

Yes, as a WEEE-certified member of Recolight, we offer free recycling services for old lighting fixtures to support sustainable waste management.

Yes, many of our luminaires incorporate recycled components, supporting our commitment to sustainable manufacturing. Look out for the ‘98% recycled‘ product icon for those luminaires that are mostly made from recycled materials.

Yes, our luminaires are designed to integrate seamlessly into retrofit projects, making it easy to upgrade existing lighting systems with minimal disruption.

Lumenloop’s emergency lighting solutions are designed to fit a wide variety of installations, making them ideal for retrofit projects of all types.

Yes, Lumenloop luminaires are available in a wide range of colours and finishes to suit diverse design needs.

Most of our luminaires are customizable with a variety of RAL colour options, allowing you to match your lighting seamlessly with your interior decor or branding requirements.

This includes (but is not limited to) popular finishes such as RAL9010 (Pure White), RAL9003 (Signal White), RAL9005 (Jet Black), and RAL9016 (Traffic White), among many others.

We offer options that cater to both standard and bespoke requirements, ensuring that no matter the space, you can achieve the perfect lighting aesthetic while maintaining functionality. This flexibility in colour and finish makes our luminaires ideal for a variety of applications, from commercial spaces to more design-sensitive environments.

Yes, Lumenloop luminaires can be easily integrated with smart systems for enhanced control and flexibility.

Our products support a variety of popular smart lighting technologies, including Casambi, which allows for wireless control via Bluetooth. This means you can adjust light levels, set scenes, and even schedule lighting events directly from your mobile device or through a central system.

Additionally, our luminaires are compatible with other smart control systems such as DALI (Digital Addressable Lighting Interface), DSI (Digital Serial Interface), and SwitchDIM. These options provide versatile, scalable control for a range of environments, ensuring that Lumenloop luminaires can fit into your existing smart building infrastructure seamlessly.

Yes, Lumenloop products are fully compliant with both UK and EU safety standards, ensuring reliable and safe lighting solutions for a wide range of applications.

Lumenloop luminaires comply to regulations, including the BS EN 60598-1 standard for general requirements for luminaires, as well as specific standards for emergency lighting.

We ensure that our emergency lighting systems undergo rigorous testing to meet the requirements of the latest emergency lighting regulations, including the necessary duration for emergency operation and testing protocols, providing peace of mind for both users and regulatory bodies.

Yes, Lumenloop offers refurbishment services for older light fittings, helping to extend their lifespan and improve energy efficiency.

Our ‘UK Renew & Reuse’ workshop can upgrade your existing luminaires with the latest technology, such as LED retrofitting, modern dimming controls, and energy-efficient drivers, to ensure compliance with current standards and enhance performance.

We understand the value of your existing installations and offer bespoke solutions to suit your specific requirements.

Yes, Lumenloop’s industrial range of luminaires are built to withstand demanding environments, including high-moisture and high-heat settings.

Many of our products are designed with robust construction and high-quality materials that ensure reliability and durability in challenging conditions.
