The Beam 130 Architectural LED Downlight is designed for spaces that require high-quality, focused lighting with minimal glare.
With an 85 mm diameter and an 81 mm cut-out, this downlight offers a low-profile solution that seamlessly integrates into various architectural environments.
📄 Bim File

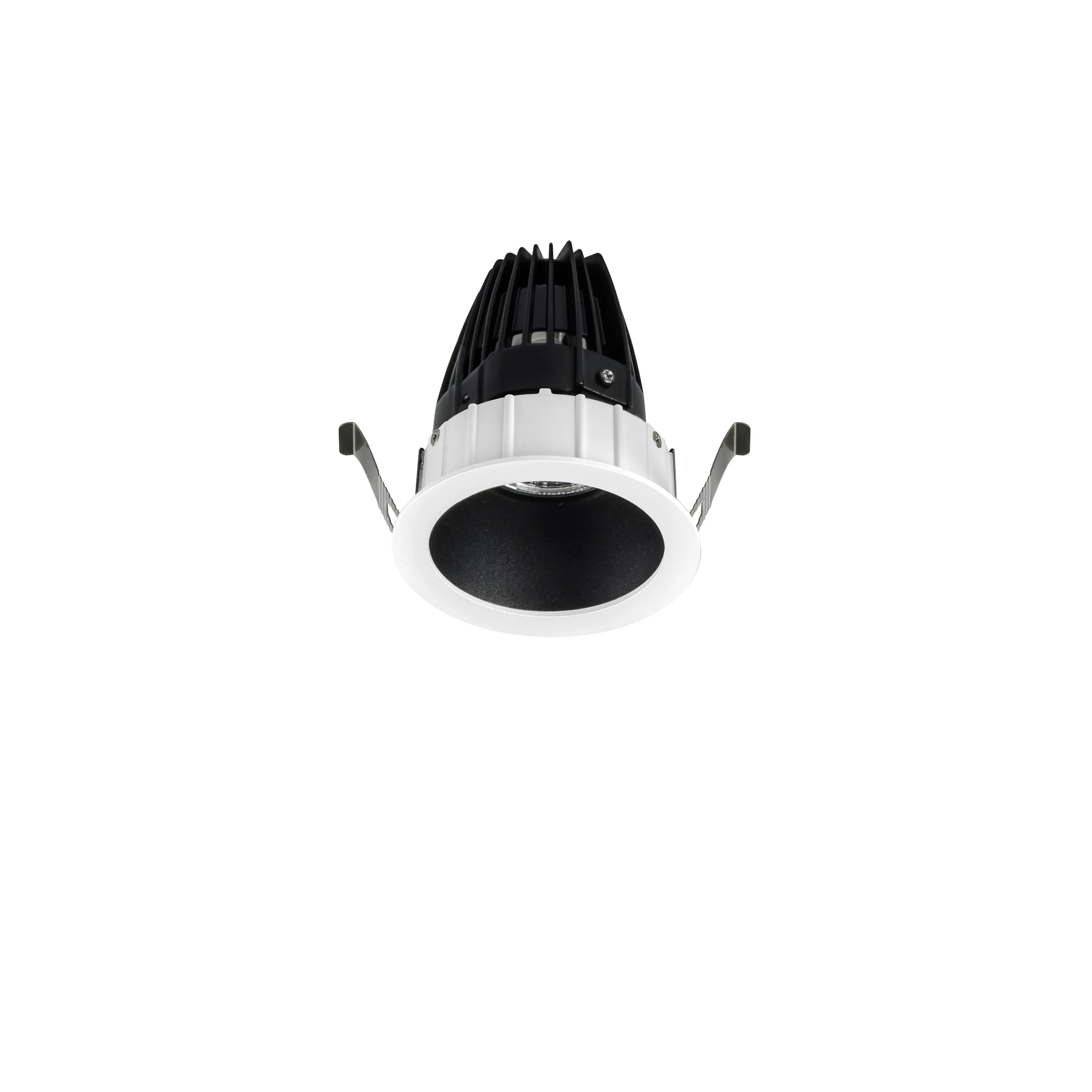

The Beam 130 is a low-profile architectural LED downlight engineered for commercial and residential spaces demanding precision lighting with minimal glare.
Featuring a round die-cast aluminium bezel and IP44-rated protection, it delivers reliable illumination in environments requiring dust and moisture resistance.
Compatible with the Edge 131, Guard 132, and Wave 133 series of luminaires, it integrates Tridonic LED technology for consistent performance and offers optional Ra90 high colour rendering for vibrant, accurate light reproduction.
Round bezel design: Discreet RAL 9003 white or RAL 9005 black finish for seamless ceiling integration.
Low glare optics: Matt black darklight baffle reduces visual discomfort in task-sensitive areas.
IP44-rated lens: Protects against dust and splashes, ideal for kitchens and bathrooms.
40° precision reflector: Ensures uniform light distribution for ambient or accent lighting.
Tridonic LED engine: High efficiency with a lifespan optimised for long-term use.
Thermally optimised heatsink: 24 super-fin die-cast design enhances heat dissipation.
High CRI Ra90 option: Superior colour accuracy for retail displays and art studios.
Multi-protocol dimming: Supports SwitchDIM, DALI, DSI, and Casambi wireless control.
Emergency-ready: Optional EM conversion with self-test and indicator variants.
Plaster-in or surface mounting: Flexible installation for flush or suspended ceilings.
| Specification | Details |
|---|---|
| Model References | 130.001 to 130.006 |
| Lumen Output Range | 600–900 lumens |
| Power Consumption | 6.5–10.0 W |
| Colour Temperatures | 830 (warm), 840 (neutral), 927 (cool) |
| Bezel Dimensions | 95 mm diameter |
| Cut-out Dimensions | 81 mm diameter (plaster-in) |
| Finish Options | White (RAL 9003), Black (RAL 9005) |
| Mounting | Plaster-in or surface-mounted |
| Protection Rating | IP44 |
| Version | Code Suffix | Description |
|---|---|---|
| DALI/DSI | /ECO | Multi-protocol dimming compatibility |
| Mains dimming | /MDIM | Mains dimming |
| 20° narrow beam reflector | /NB | Focused lighting for accent zones |
| EM conversion | /EM | Basic emergency lighting mode |
| DALI self-test EM conversion | /EMD | Automated testing via DALI protocol |
| High colour rendering Ra90 | /9 | Enhanced CRI (≥90) for accurate hues |
| Casambi wireless control | /BTC | Bluetooth-enabled dimming and scenes |
| Model Code | Finish | Testing Option |
|---|---|---|
| 130.001 | White (RAL 9003) | Add suffix (e.g., /ECO) |
| 130.004 | White (RAL 9003) | Add suffix (e.g., /9) |
| 130.005 | Black (RAL 9005) | Add suffix (e.g., /NB) |
| 130.006 | White (RAL 9003) | Add suffix (e.g., /BTC) |
Note: Specify black bezel with /BK suffix. Options are added to the base model code.
Ideal Applications
Office ceilings and breakout areas
Retail stores and boutique displays
Hotel corridors and dining spaces
Residential kitchens and bathrooms
Healthcare clinics and treatment rooms
Art galleries and exhibition halls
Educational institutions and libraries
Additional Benefits
Energy-efficient performance reduces operational costs.
Durable aluminium construction ensures low maintenance.
Compatible with smart building systems for automated control.
Emergency lighting compliance when configured with EM options.
Sleek, unobtrusive design complements modern interiors.
📄 Bim File
Yes, all of our luminaires are available with dimmable LED drivers.
Mains Dimming (/MDIM): This allows dimming through standard phase-cut dimmers.
SwitchDIM, DALI, or DSI (/ECO): These options provide compatibility with SwitchDIM, Digital Addressable Lighting Interface (DALI), or Digital Serial Interface (DSI) systems for more advanced lighting control.
Casambi Wireless Network (/BTC): This enables wireless dimming and control via the Casambi platform, offering flexibility and ease of use.
Yes, we offer a comprehensive range of emergency lighting solutions to ensure safety and compliance with UK regulations. Our offerings include:
Our lighting solutions utilise the latest LED technology to maximise energy efficiency, helping to reduce energy consumption and lower operational costs.
Yes, all Lumenloop luminaires are supplied with compatible drivers to ensure optimal functionality and straightforward installation. We use premium driver brands like Tridonic and Philips to ensure they have long life expectancies.
All our products are proudly designed and manufactured in the UK, ensuring the highest quality standards.
Yes, we work closely with clients to develop bespoke lighting solutions tailored to their specific needs and design requirements.
Just reach out to us at info@lumenloop.co.uk
Our products are designed for various environments, with IP ratings from IP20 for indoor applications to IP65 for harsher conditions such as outdoor or industrial spaces.
Yes, as a WEEE-certified member of Recolight, we offer free recycling services for old lighting fixtures to support sustainable waste management.
Yes, many of our luminaires incorporate recycled components, supporting our commitment to sustainable manufacturing. Look out for the ‘98% recycled‘ product icon for those luminaires that are mostly made from recycled materials.
Yes, our luminaires are designed to integrate seamlessly into retrofit projects, making it easy to upgrade existing lighting systems with minimal disruption.
Lumenloop’s emergency lighting solutions are designed to fit a wide variety of installations, making them ideal for retrofit projects of all types.
Yes, Lumenloop luminaires are available in a wide range of colours and finishes to suit diverse design needs.
Most of our luminaires are customizable with a variety of RAL colour options, allowing you to match your lighting seamlessly with your interior decor or branding requirements.
This includes (but is not limited to) popular finishes such as RAL9010 (Pure White), RAL9003 (Signal White), RAL9005 (Jet Black), and RAL9016 (Traffic White), among many others.
We offer options that cater to both standard and bespoke requirements, ensuring that no matter the space, you can achieve the perfect lighting aesthetic while maintaining functionality. This flexibility in colour and finish makes our luminaires ideal for a variety of applications, from commercial spaces to more design-sensitive environments.
Yes, Lumenloop luminaires can be easily integrated with smart systems for enhanced control and flexibility.
Our products support a variety of popular smart lighting technologies, including Casambi, which allows for wireless control via Bluetooth. This means you can adjust light levels, set scenes, and even schedule lighting events directly from your mobile device or through a central system.
Additionally, our luminaires are compatible with other smart control systems such as DALI (Digital Addressable Lighting Interface), DSI (Digital Serial Interface), and SwitchDIM. These options provide versatile, scalable control for a range of environments, ensuring that Lumenloop luminaires can fit into your existing smart building infrastructure seamlessly.
Yes, Lumenloop products are fully compliant with both UK and EU safety standards, ensuring reliable and safe lighting solutions for a wide range of applications.
Lumenloop luminaires comply to regulations, including the BS EN 60598-1 standard for general requirements for luminaires, as well as specific standards for emergency lighting.
We ensure that our emergency lighting systems undergo rigorous testing to meet the requirements of the latest emergency lighting regulations, including the necessary duration for emergency operation and testing protocols, providing peace of mind for both users and regulatory bodies.
Yes, Lumenloop offers refurbishment services for older light fittings, helping to extend their lifespan and improve energy efficiency.
Our ‘UK Renew & Reuse’ workshop can upgrade your existing luminaires with the latest technology, such as LED retrofitting, modern dimming controls, and energy-efficient drivers, to ensure compliance with current standards and enhance performance.
We understand the value of your existing installations and offer bespoke solutions to suit your specific requirements.
Yes, Lumenloop’s industrial range of luminaires are built to withstand demanding environments, including high-moisture and high-heat settings.
Many of our products are designed with robust construction and high-quality materials that ensure reliability and durability in challenging conditions.
