Edge 131

dali options available casambi wireless lighting control emergency light high cri light uk

The Edge 131 Architectural LED Wall Washer is designed to deliver sharp, consistent illumination, making it an ideal solution for highlighting walls and architectural features.

With an 85 mm diameter and an 81 mm cut-out, the Edge 131 provides an asymmetric light distribution that ensures even coverage with a well-defined cut-off.

📄 Download Datasheet

📄 Installation Guide

📄 Photometric Data

📄 Bim File

uk-made lighting 5 year warranty lighting

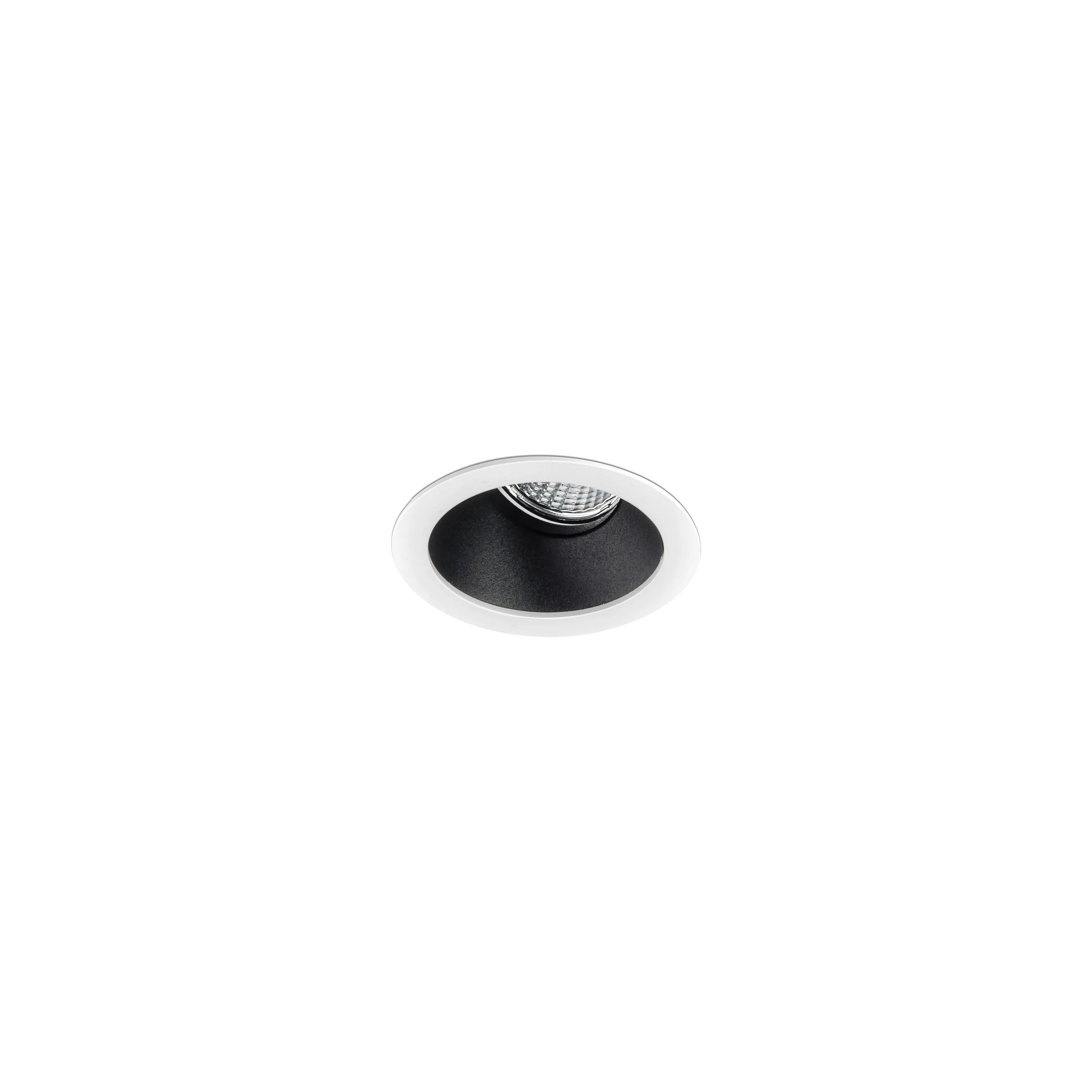

Edge 131 – Low Glare Architectural LED Downlight with Darklight Baffle & 40° Wall Wash Reflector

The Edge 131 is a premium architectural LED downlight engineered for superior wall washing performance and exceptional glare control in high-end commercial and residential environments.

Featuring a minimalist die-cast aluminium bezel and specialist matt black darklight baffle, this precision-engineered recessed luminaire delivers sophisticated illumination whilst maintaining IP44 protection and comprehensive compatibility with leading-edge lighting control systems.



Key Features

  • Superior Wall Wash Performance: Precision-engineered 40° reflector creates smooth, even vertical illumination ideal for artwork and feature walls.
  • Advanced Glare Control: Matt black darklight baffle (RAL 9005) significantly reduces luminance contrast for enhanced visual comfort.
  • Minimalist Aesthetics: Ultra-discreet 85mm diameter bezel with only 2mm visible edge creates clean architectural lines.
  • Plaster-In Option: Available with trimless installation for seamless integration with contemporary interiors.
  • High CRI Available: Optional Ra90+ rendition ensures accurate colour representation of illuminated surfaces and artworks.

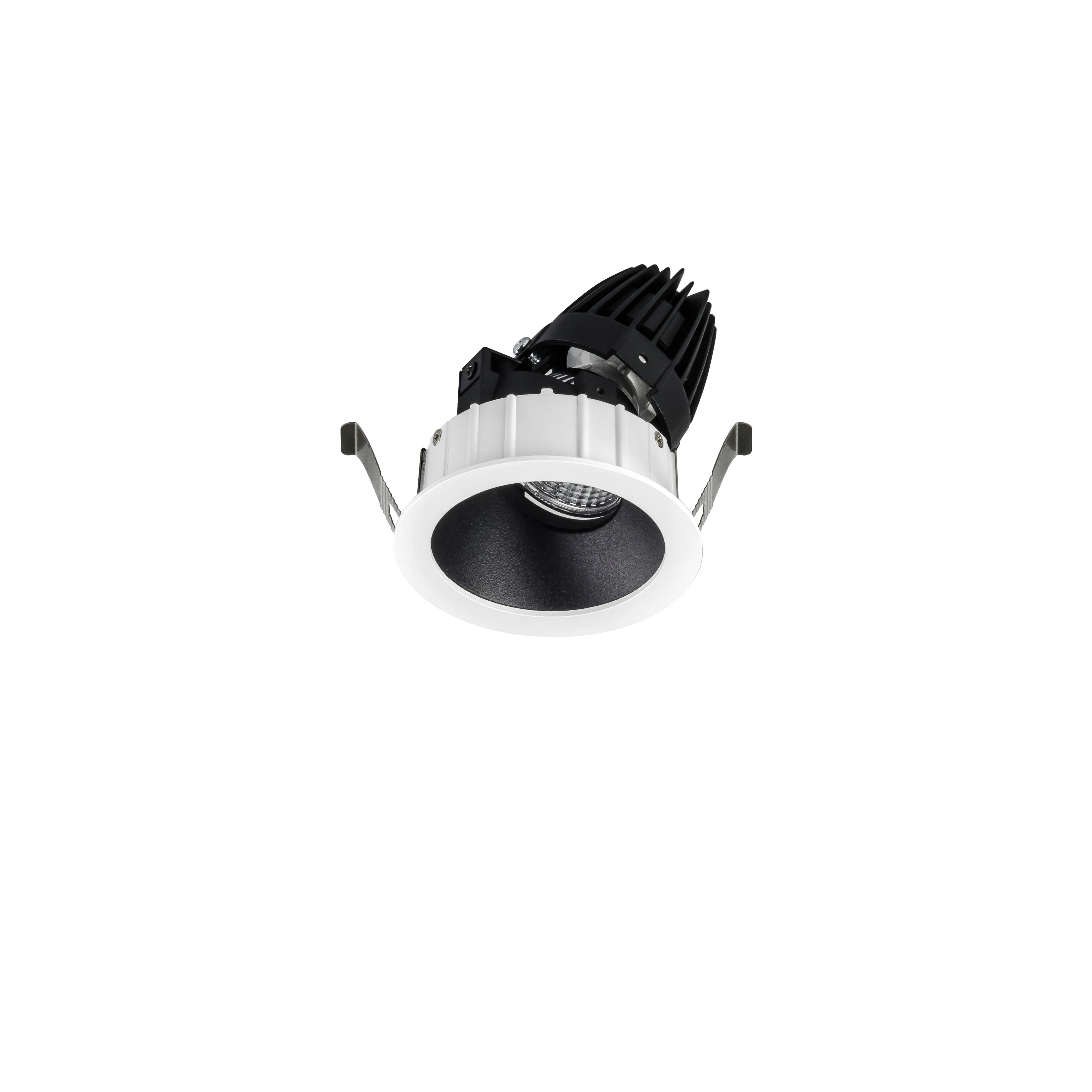

  • Thermal Excellence: 24 super-fin die-cast heatsink optimises LED performance and ensures extended operational life.
  • Multiple Control Options: Compatible with mains dimming, DALI, DSI and Casambi wireless protocols for flexible integration.
  • Emergency Variants: Comprehensive range of emergency options including self-test and DALI-monitored systems.
  • Versatile Light Output: Models ranging from 600-900 lumens with 2700K, 3000K and 4000K options for tailored applications.
  • IP44 Protection: Integral protective lens ensures suitability for bathroom zones and areas requiring ingress protection.



Technical Specifications

Specification Details
Model References 131.001-131.006 (various outputs and CCTs)
Light Engine Output 600-900 lumens
Power Consumption 6.5-10.0W delivering exceptional efficiency
Colour Temperatures 2700K (927), 3000K (830) or 4000K (840)
Ceiling Cut-out 81mm diameter (same for plaster-in variant)
Bezel Dimensions 85mm diameter with minimal 2mm visible edge
Overall Depth 105mm maximum depth from ceiling surface
Reflector Precision-moulded 40° wall wash as standard (20° NB option)
Baffle Matt black darklight anti-glare (RAL 9005) or white softlight option
Protection Rating IP44 with integral protective lens



System & Testing Options

Version Code Suffix Description
Standard None Standard mains operation
Mains Dimming /MDIM Phase-cut dimming compatibility
Digital Control /ECO SwitchDIM, DALI and DSI protocol compatibility
Wireless Control /BTC Casambi Bluetooth mesh network integration
Emergency Standard /EM 3-hour emergency operation
Emergency Indicator /EMI Emergency with integral indicator light
DALI Emergency /EMD DALI monitored and self-test emergency
DALI Emergency + Indicator /EMDI DALI emergency with integral indicator



Ordering Information

Model Code Output Power Colour Temp Standard Finish
131.001 600lm 8.0W 2700K (Ra90+) White RAL 9003
131.002 675lm 6.5W 3000K White RAL 9003
131.003 700lm 6.5W 4000K White RAL 9003
131.004 850lm 10.0W 2700K (Ra90+) White RAL 9003
131.005 850lm 8.0W 3000K White RAL 9003
131.006 900lm 8.0W 4000K White RAL 9003

Add finish and control options as required (/BK, /MDIM, /ECO, /BTC, etc.)



Ideal Applications

  • Art gallery and museum exhibition lighting
  • Residential feature wall accentuation
  • Retail display and product highlighting
  • Hotel corridor and public area illumination
  • High-end residential bathroom lighting (IP44)
  • Contemporary office wall washing
  • Architectural interior feature lighting
  • Heritage property and listed building sensitive installations



Additional Benefits

  • Complements Edge 130, 132 and 133 Series for cohesive lighting schemes
  • Die-cast aluminium construction ensures superior heat dissipation and longevity
  • Tridonic LED engine and driver system guarantees reliability and consistency
  • Trimless plaster-in option (/PI) creates minimal visual impact for design-led projects
  • Tiltable version (/TLT) available for precise aiming and adjustment



Superior Wall Washing Technology

The Edge 131 Series has been specifically engineered to deliver exceptional vertical illumination performance, creating smooth, even light distribution on walls and vertical surfaces.

Unlike standard downlights that create scalloping or uneven light patterns, the precision-engineered 40° reflector technology ensures consistent illumination from ceiling to floor, making it the perfect solution for highlighting artwork, architectural features, and display areas.



Professional Installation Flexibility

With a comprehensive range of control and emergency options, the Edge 131 provides specifiers and contractors with complete flexibility for integration into various building management systems.

The plaster-in option delivers a truly architectural finish with no visible trim, while the standard minimal bezel version enables quick and straightforward installation in conventional suspended ceilings.

Both variants use the same 81mm diameter cut-out for simplified specification.

IP44 rated for bathroom installations | Available with Ra90+ CRI for accurate colour rendition | Compatible with all major control protocols



📄 Download Datasheet

📄 Installation Guide

📄 Photometric Data

📄 Bim File
